DeLonghi DFG 905 - Replacement of the grill burner injector

33
Replacement of the grill burner injector

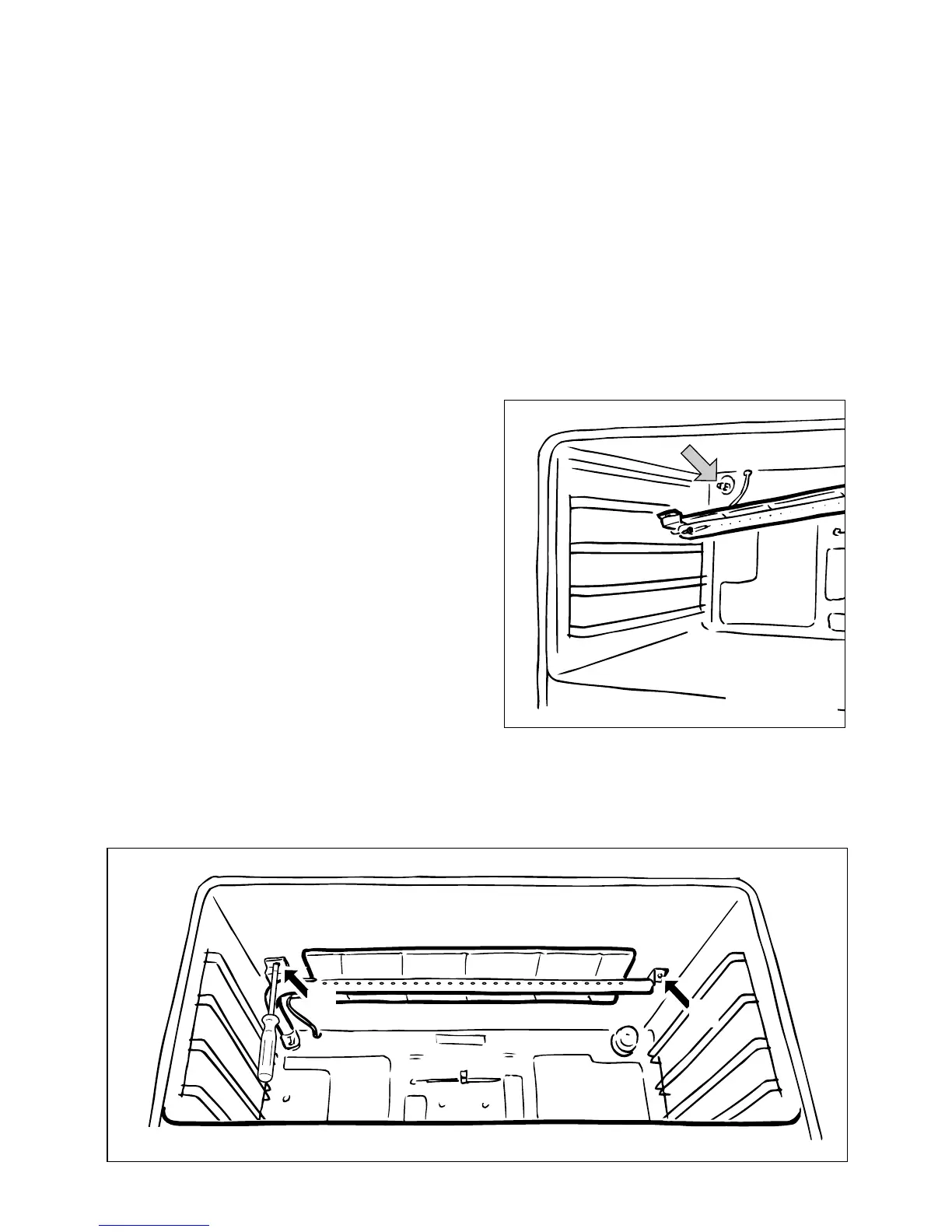

– Remove the grill burner by unscrewing the front screw (fig. 8.7).
– Gently suspend the burner as shown in figure 8.8. Take care not to damage the wire to the
ignition electrode and the safety valve probe.
– Remove the injector from the connection and replace it with the correct one (fig. 8.8).
Fig. 8.8
Fig. 8.7
C
D
