REPAIRS
REPLACING THE POWER SUPPLY CABLE

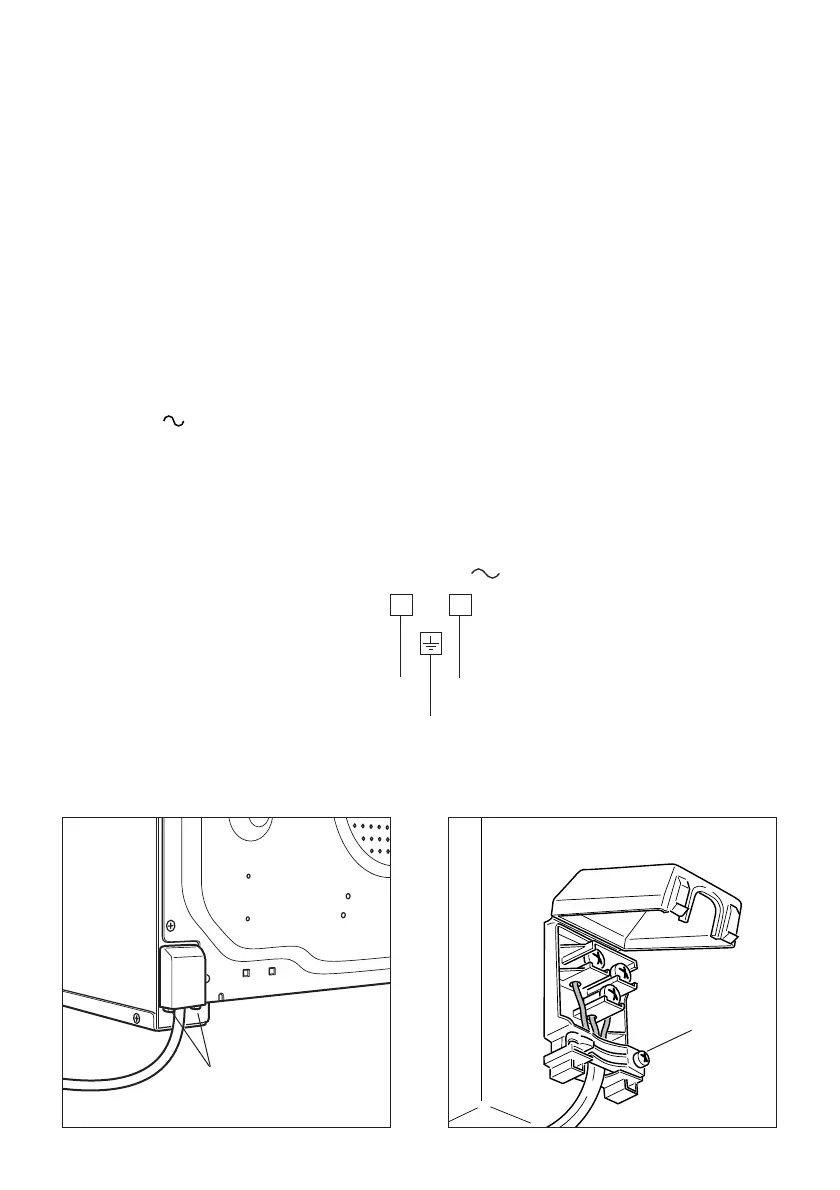

■ Unhook the terminal board cover by inserting a screwdriver into the two
hooks “A” (fig. 2).
■ Open the cable gland by unscrewing screw “F” (fig. 3), unscrew the
terminal screws and remove the cable.
■ The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram fig. 1.
FEEDER CABLE SECTION TYPE HO5RR-F
230 - 240 V 3 x 1,5 mm
2
A
F
230 - 240 V
E
N
L
1 (L )2
Figure 2 Figure 3
Figure 1
