DeLonghi DMFPS60BF - Electric Diagrams (Cut-off Timer Models); Diagram for Cut-off Timer Models

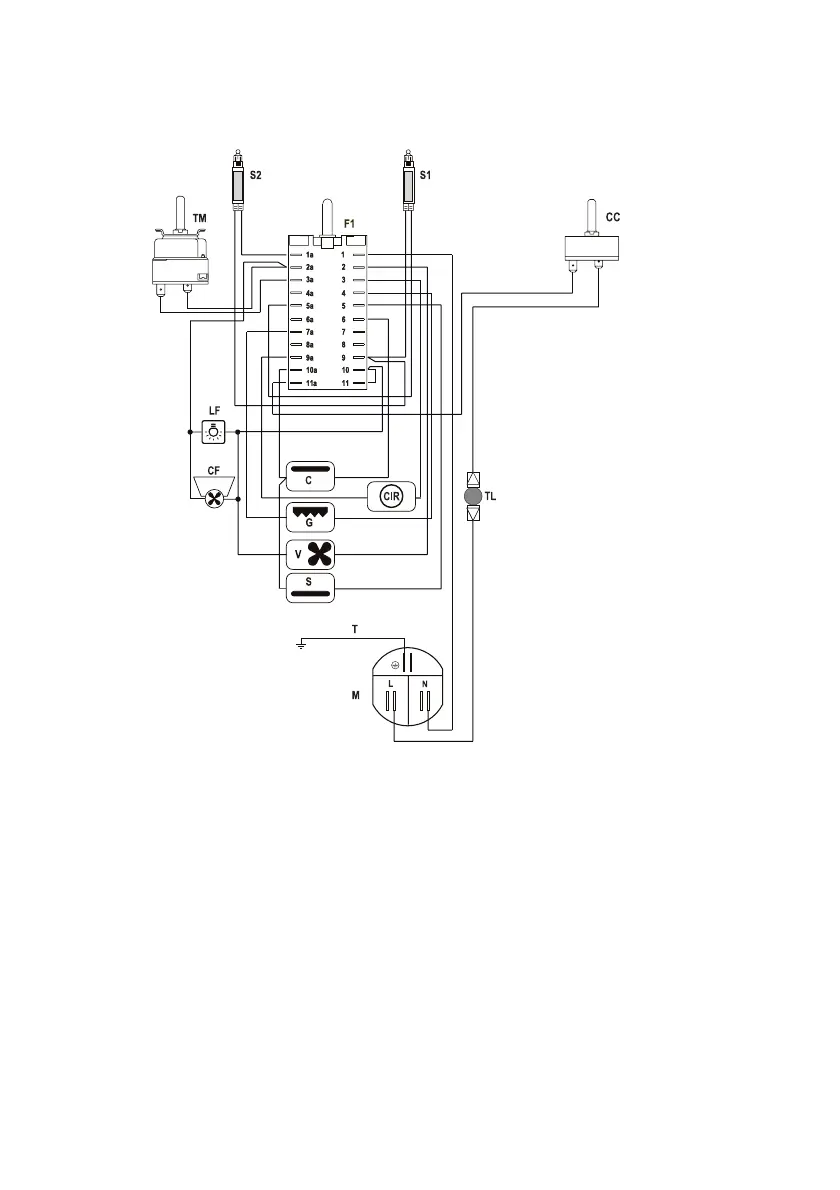

ELECTRIC DIAGRAM - multifunction OVENS
(models with cut-off timer)
Figure 5
F1 Oven switch
TM Oven thermostat
LF Oven lamp
CC Oven cut-off
S1 Line pilot lamp
S2 Thermostat pilot lamp
TL Thermal overload
M Terminal block
C Top element
G Grill element
S Bottom element
CIR Circular element
CF Cooling fan
V Fan
T Earth connection
8
