1414
ANTI-TILT BRACKET
Important!
To restrain the appliance and prevent it tipping accidentally, t the supplied bracket
to the rear wall to x it securely.
To t the anti-tilt bracket:
1. After you have located where the cooker is to be positioned, mark on the wall the place
where the two screws of the anti-tilt bracket have to be tted.
Please follow the indications given in g. 1.8.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.
Important!
Before drilling the holes, check that you will not damage any pipes or electrical
wires.
3. Loosely attach the anti-tilt bracket with the two screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can
engage in the slot on the cookers back, as shown in g. 1.8.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot
on the cookers back.
Attention!
When sliding the cooker into place pay special attention not to trap the power
supply cable in the stability bracket.
Pay special attention to the gas connection hose.

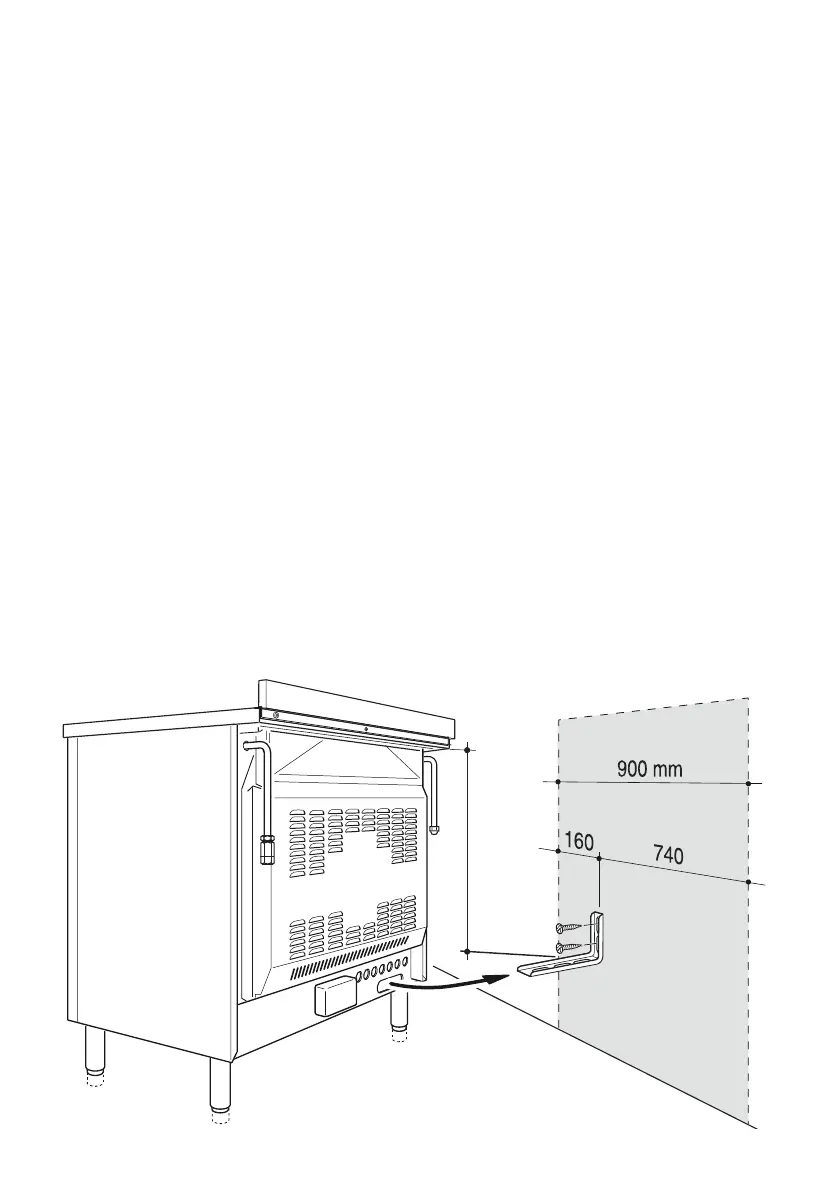

Fig. 1.8
690 mm
