REPLACEMENT OF THE
INJECTORS OF THE TOP BURNERS
If the injectors are not supplied they can
be obtained from the
After-Sales Service.
Select the injectors to be replaced
according to the “Table for the choice of the
injectors”.
The nozzle diameters, expressed in
hundredths of a millimetre, are marked on
the body of each injector.
To replace the injectors proceed as follows:
• Remove pan supports and burners
from the cooktop.
• Using a wrench, substitute the nozzle
injectors “J” (gs. 2.5, 2.6) with those
most suitable for the kind of gas for
which it is to be used.
The burners are conceived in such a
way so as not to require the regulation
of the primary air.
ADJUSTING OF THE MINIMUM OF
THE TOP BURNERS
In the minimum position the ame must
have a length of about 4 mm and must
remain lit even with a quick turn from the
maximum position to that of minimum.
The ame adjustment is done in the
following way:
• Turn on the burner.
• Turn the tap to the MINIMUM position.
• Take o the knob.
• With a thin screwdriver turn the screw
“A” until adjustment is correct (g. 2.7).
Normally for LPG, tighten up the
regulation screw.
Conversion to Natural Gas or to LPG
J

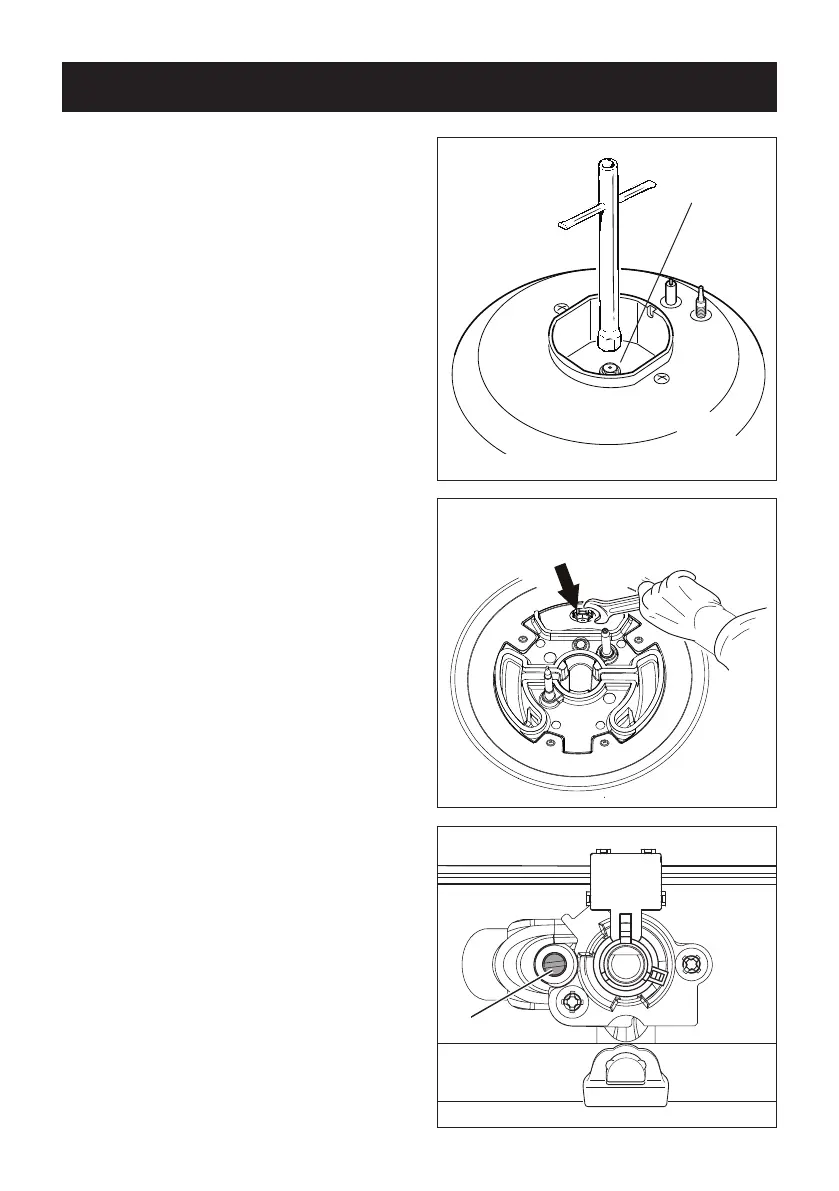

Fig. 2.5
Auxiliary,
Semi-rapid and
Rapid
burners
Double-ring compact
burner
Fig. 2.7
A
