Removal of the inner glass
door panel
The inner glass door panel can easily be
removed for cleaning by unscrewing the two
screws (fig. 17).
During re-assembly, ensure that the inner glass is
correctly aligned and do not over tighten the
screws.

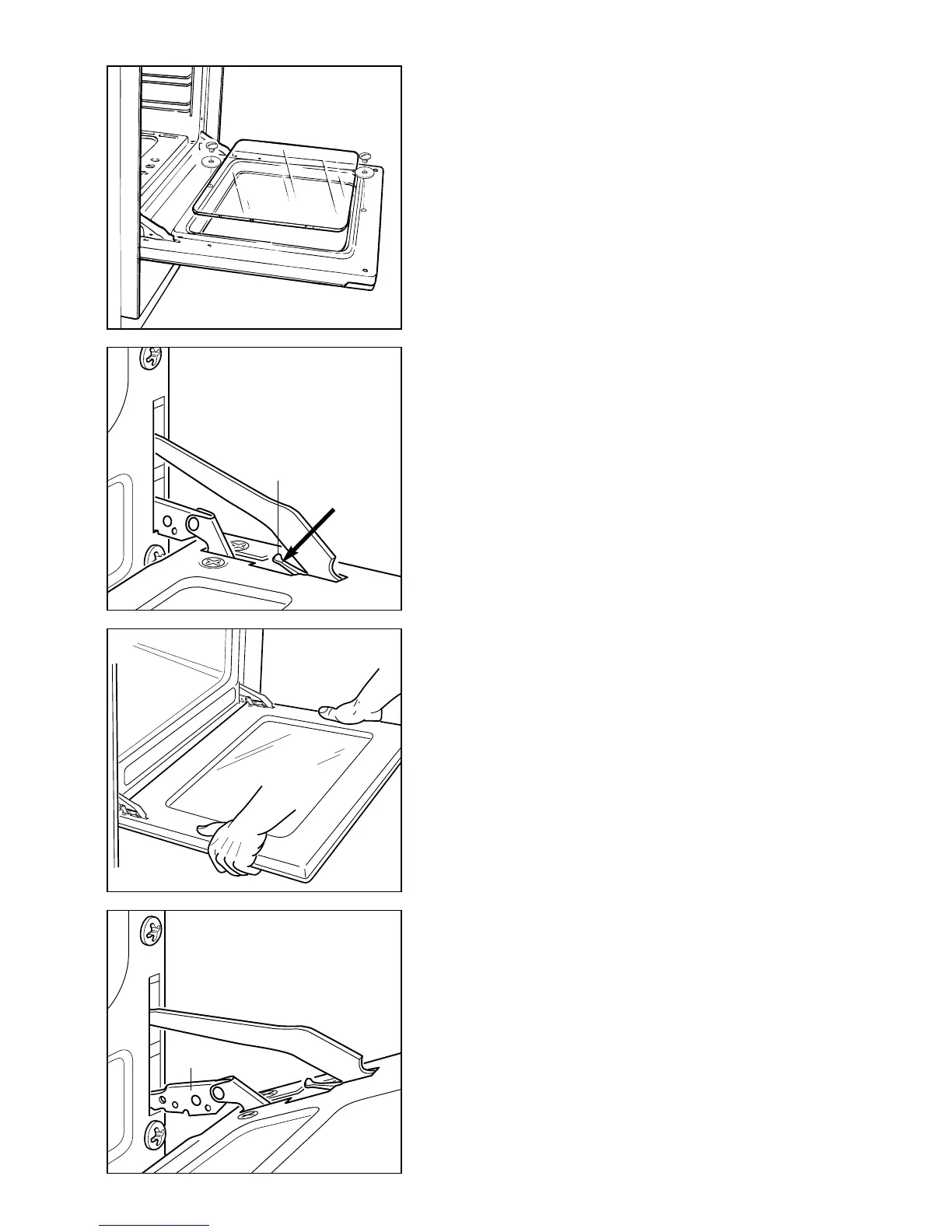

Fig. 17
Removing the oven doors
Please operate as follows:
– Open the door completely.
– Push down the lever “L” and, keeping it in this
position, slowly close the door in order to
block the hinge (Fig. 18).
– Grip the door (as indicated in fig. 19) and,
while closing it, release the two hinges as
shown in fig. 20.
Reassembly the oven doors
– Grip the door with your hands placed near
the hinges and raise the levers “H” with your
forefingers (fig. 20).
– Insert the hinges in their position until levers
“H” are hooked.
– Open the door completely to obtain the
release of levers “L”.
Fig. 18
Fig. 19
Fig. 20
L
H
