Delta Controls

Access Door Module Page 15 of 26

If no RTE is being used, you must configure the circuit. If the Door Lock is configured as fail-safe, a jumper

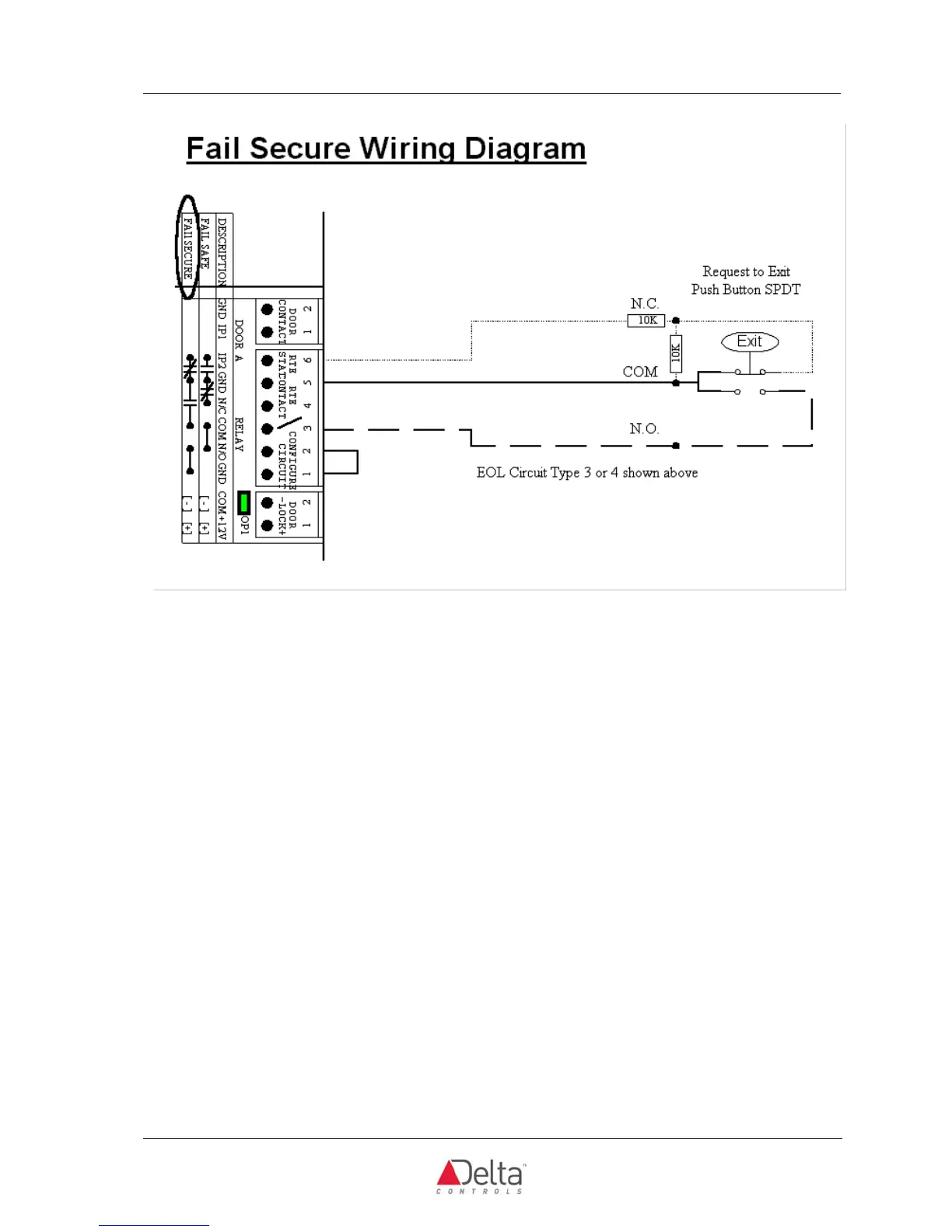

needs to be put in place of the RTE Contact. The diagram below shows how the RTE circuit is configured

when not using an RTE device.

Note: Fail secure only allowed where NFPA 101or local authorities allow.
