Delta Controls ADM-2W704 - Network Topology (Configuration Not Evaluated by Ul)

Delta Controls
Access Door Module Page 23 of 26

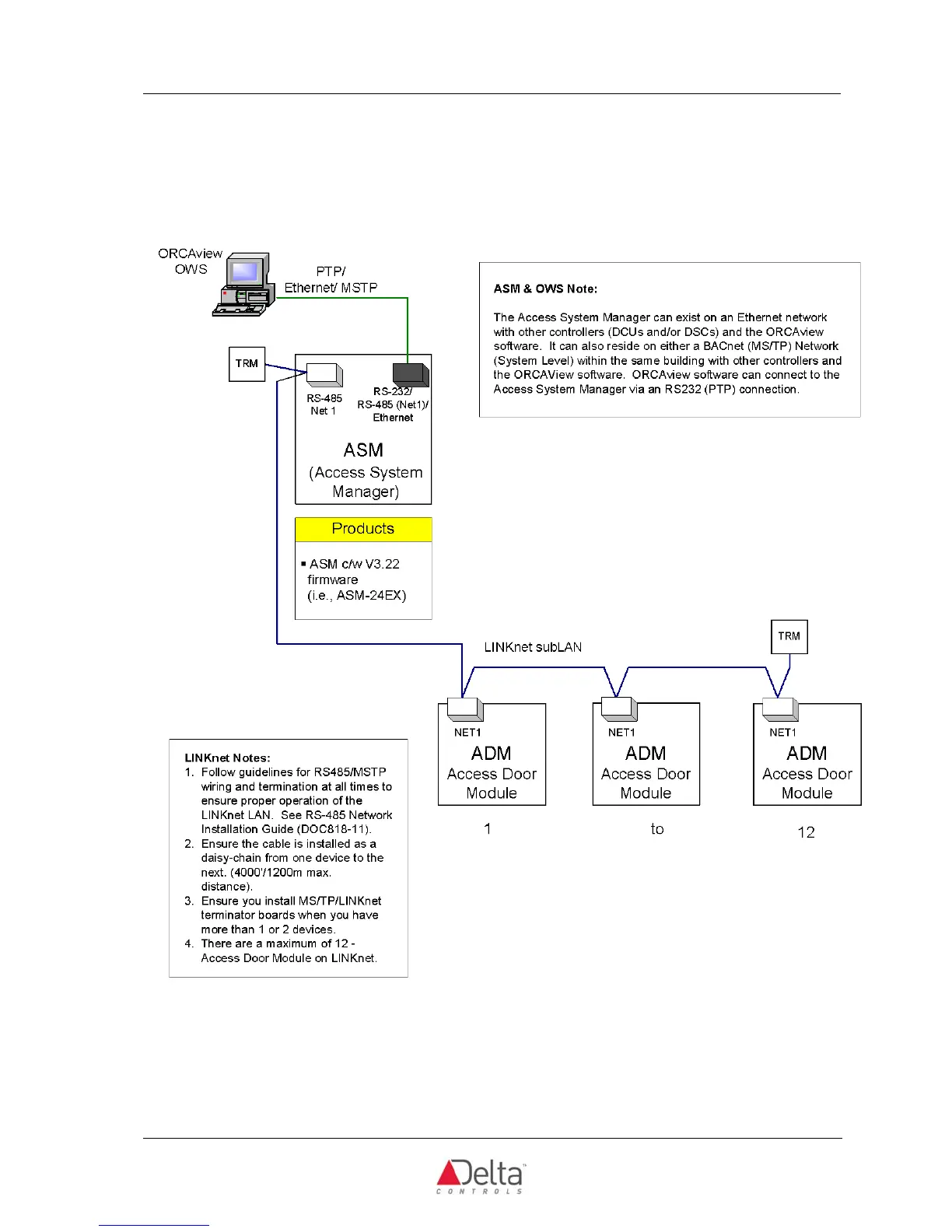

NETWORK TOPOLOGY (CONFIGURATION NOT EVALUATED BY UL)
With V3.22 firmware the Access Door Module is a LINKnet device that acts as extended I/O to the master
controller, the Access System Manager. Up to 12 - Access Door Modules can be connected to a single
Access System Manager.
