Chapter 3 Element Function|ScrEdit Software User Manual
3-12 Revision Apr. 30th, 2007, 2007PDD23000002
 Increment / Decrement
Table 3.2.6 Property description of Increment / Decrement buttons
Property Description of Increment / Decrement Buttons
After pressing this button on the screen, HMI will read the value from PLC (Controller) and add or subtract
the set constant value. Then, write the result into PLC (Controller) corresponding register. If the addition or
subtraction result exceeds the limit (minimum and maximum) set in HMI, HMI will save the limit value
(minimum and maximum) into the PLC (Controller) corresponding address.
Write Address
Read Address
The address can be internal memory or the controller address. (Please refer to
Table 3.2.2 Property Description of General Buttons.)
Text / Text Size
Font / Text Color
The user can set the text, text size, font and text color that provided by Windows®
to determine the text display on the element. (Please refer to Table 3.2.2 Property
Description of General Buttons.)
Picture Bank Name
Picture Name
(Please refer to Table 3.2.2 Property Description of General Buttons.)
Transparent Effect
Transparent Color
(Please refer to Table 3.2.2 Property Description of General Buttons.)
Foreground Color
Style
(Please refer to Table 3.2.2 Property Description of General Buttons.)
Function The user can modify the element characteristic directly without re-create a new
element. The elements that their characteristics can be modified directly by using
this option are: Increment button and Decrement button.
Trigger
Trigger Mode
The user can use this setting to trigger the designated controller address to be ON
before or after writing the setting value. Please note that this function can only
trigger the controller address to be ON. If the controller address needs to be
triggered again, the user should set the address to be OFF manually.
Data Length There are 16bits Word and 32bits Double Word two options.
There are following data format provided:
Word/Double Word
Data Format
1. BCD
2. Signed BCD
3. Signed Decimal
4. Unsigned Decimal
5. Hex

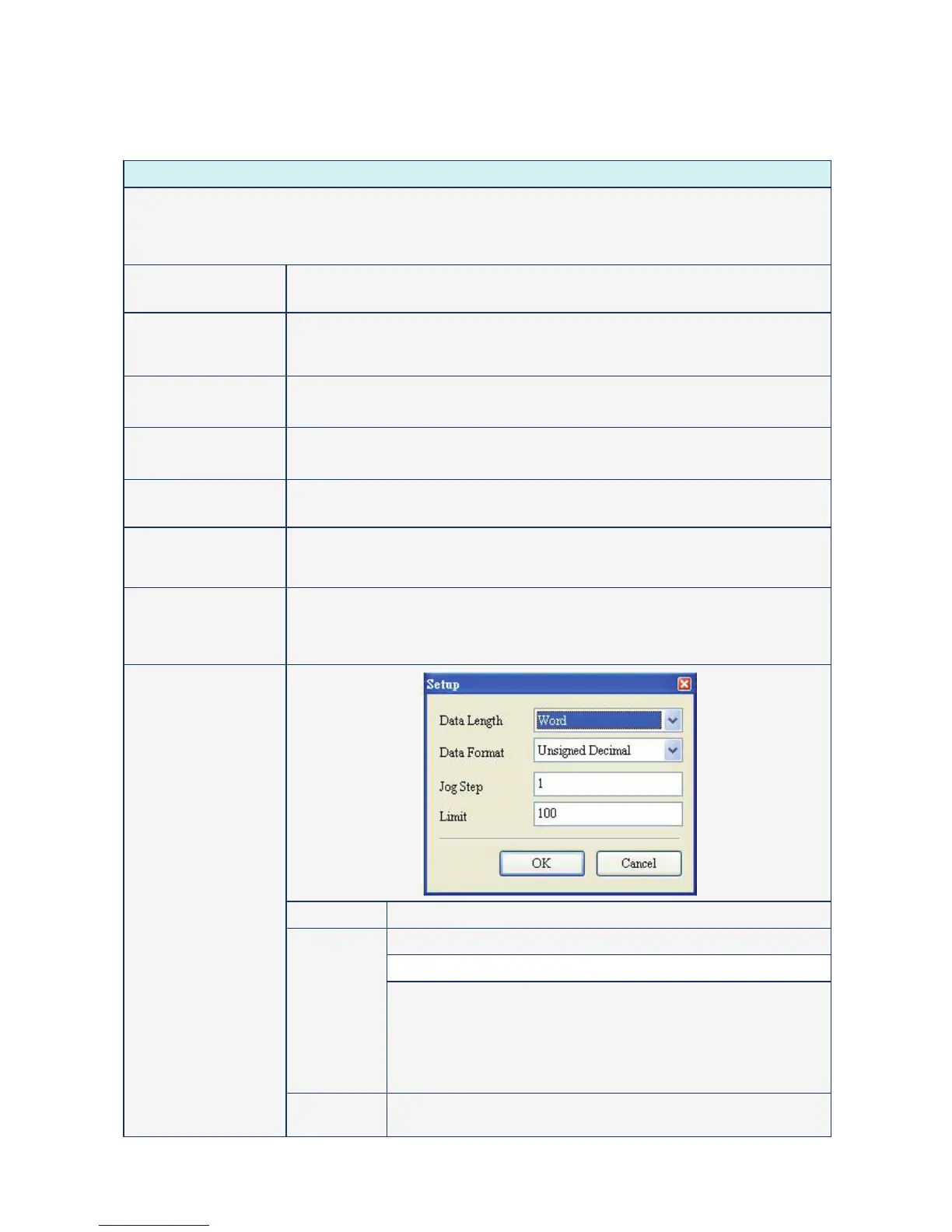

Detail Range Setup
Jog Step It is used to set the increasing and decreasing value when pressing
the Increment and Decrement button every time.
