Chapter 3 Element Function|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 3-41
 Dynamic Line

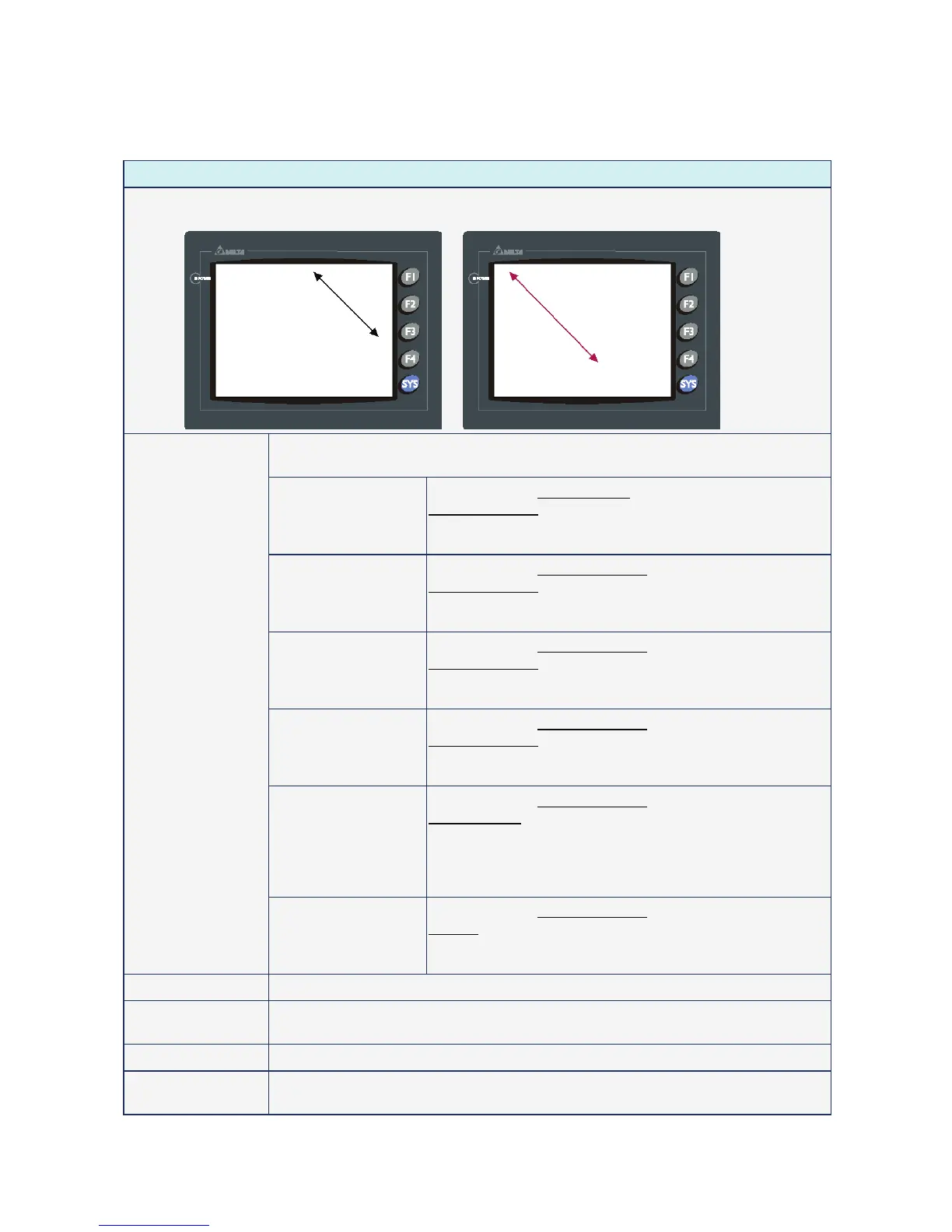

Table 3.9.4 Property Description of Dynamic Line Element
Property Description of Dynamic Line Element
The dynamic line element can be changed and moved depending on the value of the corresponding contact
or register.
The address can be internal memory or the controller address. (Please refer to Table
3.2.2 Property Description of General Buttons.)
Read Address The value of the Read Address can be used only when
Variable Position option is set to Yes. It is used to represent
the left-top horizontal position (Left) of the element, i.e. the
first X coordinate on the screen (X
1
).
Read Address +1 The value of the Read Address+1 can be used only when
Variable Position option is set to Yes. It is used to represent
the left-top vertical position (Top) of the element, i.e. the first
Y coordinate on the screen (Y
1
).
Read Address +2 The value of the Read Address+2 can be used only when
Variable Position option is set to Yes. It is used to represent
the right-bottom horizontal position (Right) of the element, i.e.
the second X coordinate on the screen (X
2
).
Read Address +3 The value of the Read Address+3 can be used only when
Variable Position option is set to Yes. It is used to represent
the right-bottom vertical position (Bottom) of the element, i.e.
the second Y coordinate on the screen (Y
2
)..
Read Address +4 The value of the Read Address+4 can be used only when
Variable Color option is set to Yes. It is used to represent the
line color. The range is different depending on selected HMI.
The range for 16 shades of gray model is within 0 ~ 15, the
range for 256 colors model is within 0 ~ 255 and the range for
65536 colors is within 0 ~ 65536.
Read Address
Read Address +5 The value of the Read Address+5 can be used only when
Twinkle option is set to Yes. When the value is higher than 1,
the dynamic line element will twinkle. If the value is 0, it will
not twinkle.
Line Color It is used to set the display color of the dynamic line element.
Twinkle The element can twinkle to remind the user. (Please refer to Table 3.2.2 Property
Description of General Buttons.)
Line Size The unit is Pixel and the range is within 1 ~ 8.
Data Format It provides BCD, Signed Decimal, Unsigned Decimal and Hex four kinds of data
format to define the read memory content.
