Chapter 3 Element Function|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 3-15
Property Description of Goto Screen / Previous Page / Previous View Buttons
InterLock Address
InterLock Level
When InterLock Address is set to be ON or OFF (this is determined by the property
of “InterLock Level”), this button can be enabled.
Before Execute Macro If this option is set, when the user presses the button, the system will execute the
command of this macro first and then perform the operation of this button. But, if
the state of the button is not triggered by pressing the button (via macro or external
signal), the command of this macro will not be executed.
After Execute Macro If this option is set, when the user presses the button, the system will perform the
operation of this button first and then execute the command of this macro. But, if
the state of the button is not triggered by pressing the button (via macro or external
signal), the command of this macro will not be executed.
System Function Button

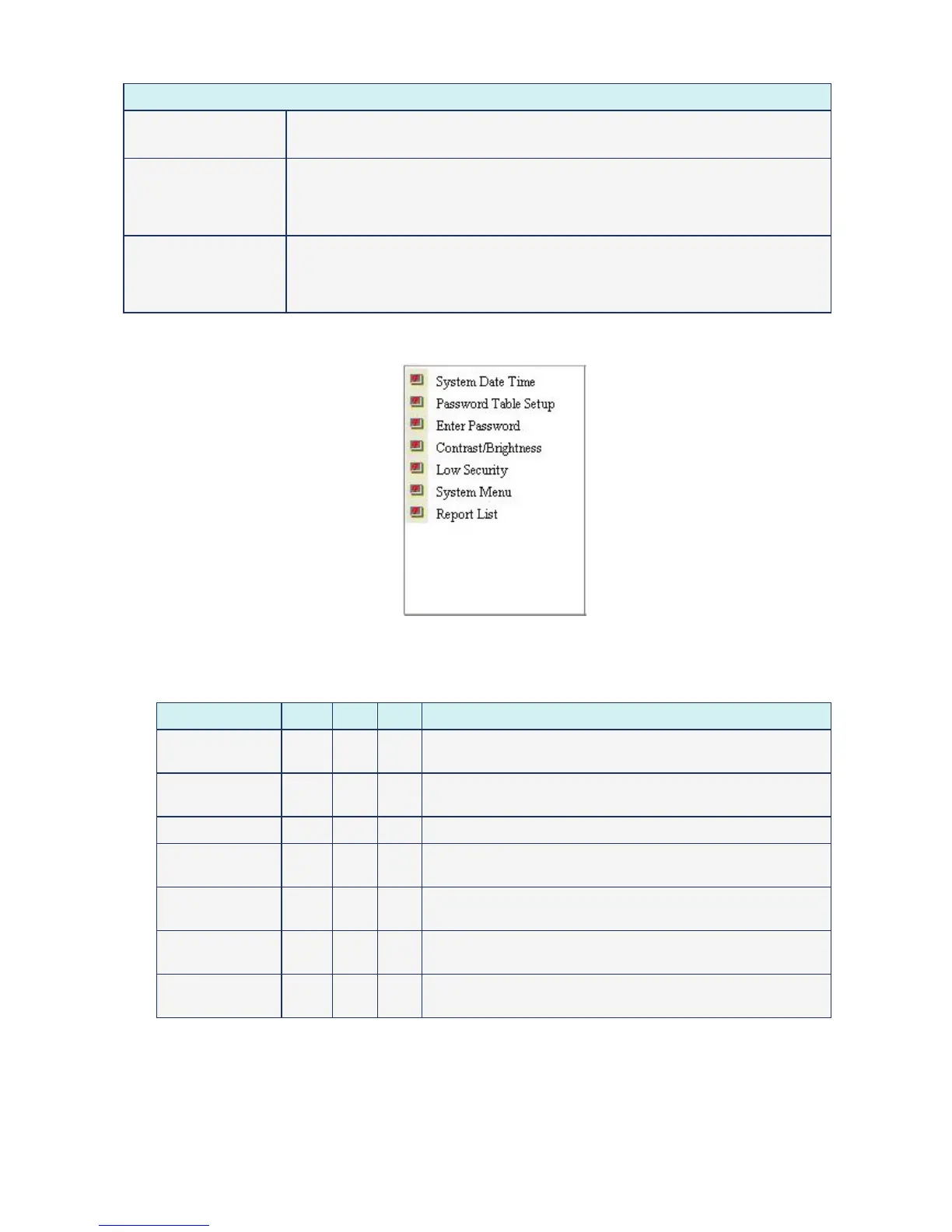

Fig. 3.2.5 System function button options
Table 3.2.8 System function buttons
Button Type Macro Read Write Function
System Date Time No No No
It is used to set HMI system time and date (year-month-day,
hours:minutes:seconds)
Password Table
Setup
No No No It is used to set all password priority.
Enter Password No No No HMI provides passwords function.
Contrast
Brightness
No No No It is used to adjust HMI contrast and brightness.
Low Security No No No
After pressing this button, HMI will set the current priority to be
the lowest level (the lowest level is 0).
System Menu No No No
After pressing this button, HMI will change screen to system
menu.
Report List No No No
After pressing this button, HMI will output the screen data to
the specific device. It is usually used with print function.
To Next Page
