Chapter 3 Element Function|ScrEdit Software User Manual
3-78 Revision Apr. 30th, 2007, 2007PDD23000002

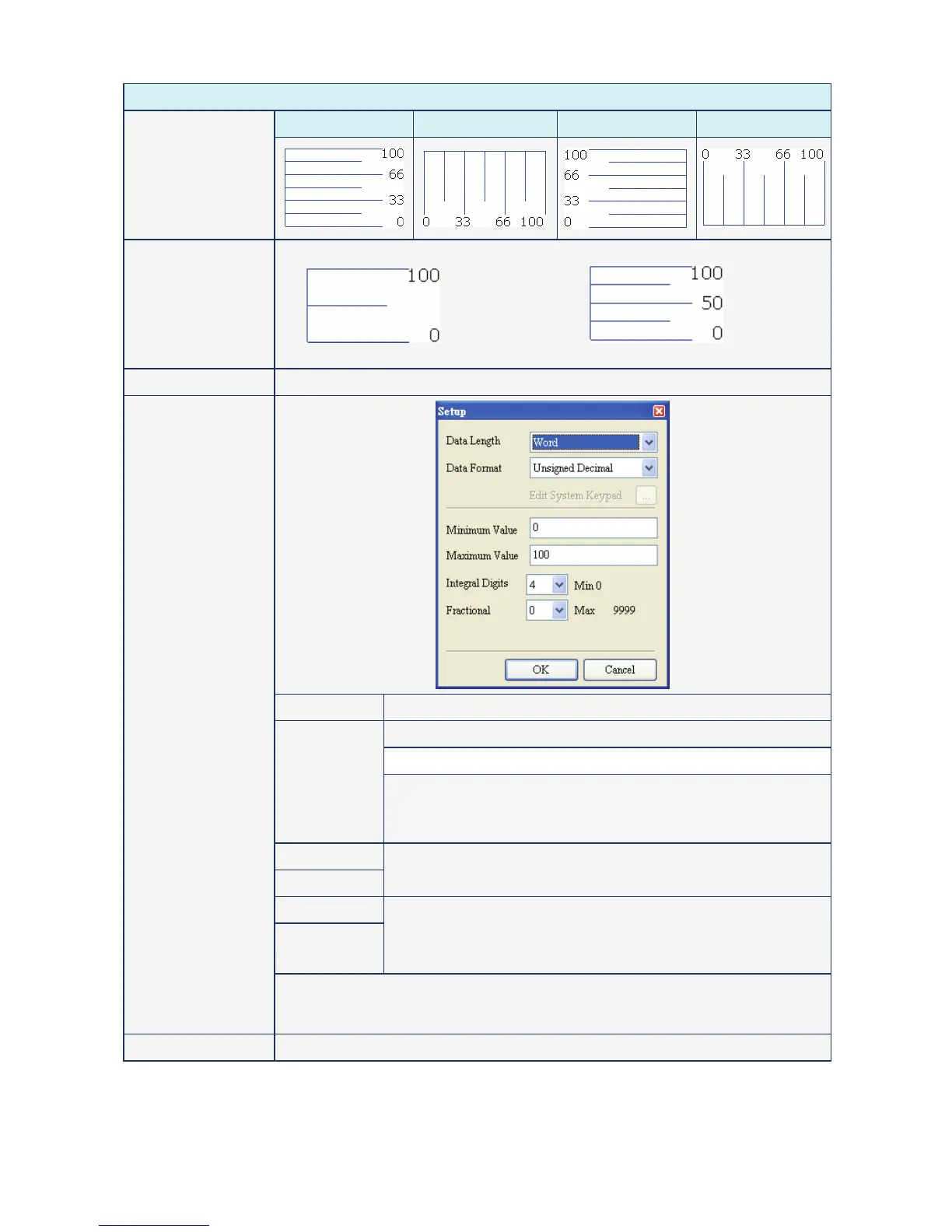

Property Description of Scale Graphic Element
Standard Rotation 90 Rotation 180 Rotation 270 Style
Main Scale Please refer to the figures below:
When main scale number is set to 2 When main scale number is set to 3
Display Mark It is used to determine if the scale value display next to the scale or not.
Date Length There are 16bits Word and 32bits Double Word two options.
There are following data format provided:
Word/Double Word
Data Format
1. BCD
2. Signed Decimal
3. Unsigned Decimal
Minimum
Maximum
The user can set the minimum and maximum of input setting value
to determine the range of input setting value.
Integral Digits
Fractional Digits
Use this option to determine the digit number of integer and decimal
fraction. The digit number is not a real digit number value. It is only
the display format. The digit number will be a real decimal number
only when the data format is selected as “Floating”.
Detail Setup
When the user have input the minimum and maximum value, after pressing OK
button, HMI will examine the value by referring to the selected data length, data
format, integral and fractional digits.
Grid Color It is used to set the grid color of the scale graphic element.
