Chapter 7 Example Explanation|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 7-5
• Select the Edit On Macro
• In the Macro section type in (2@INVERTER-2000) = 2
• This will cause the Drive to turn on when the button is selected.

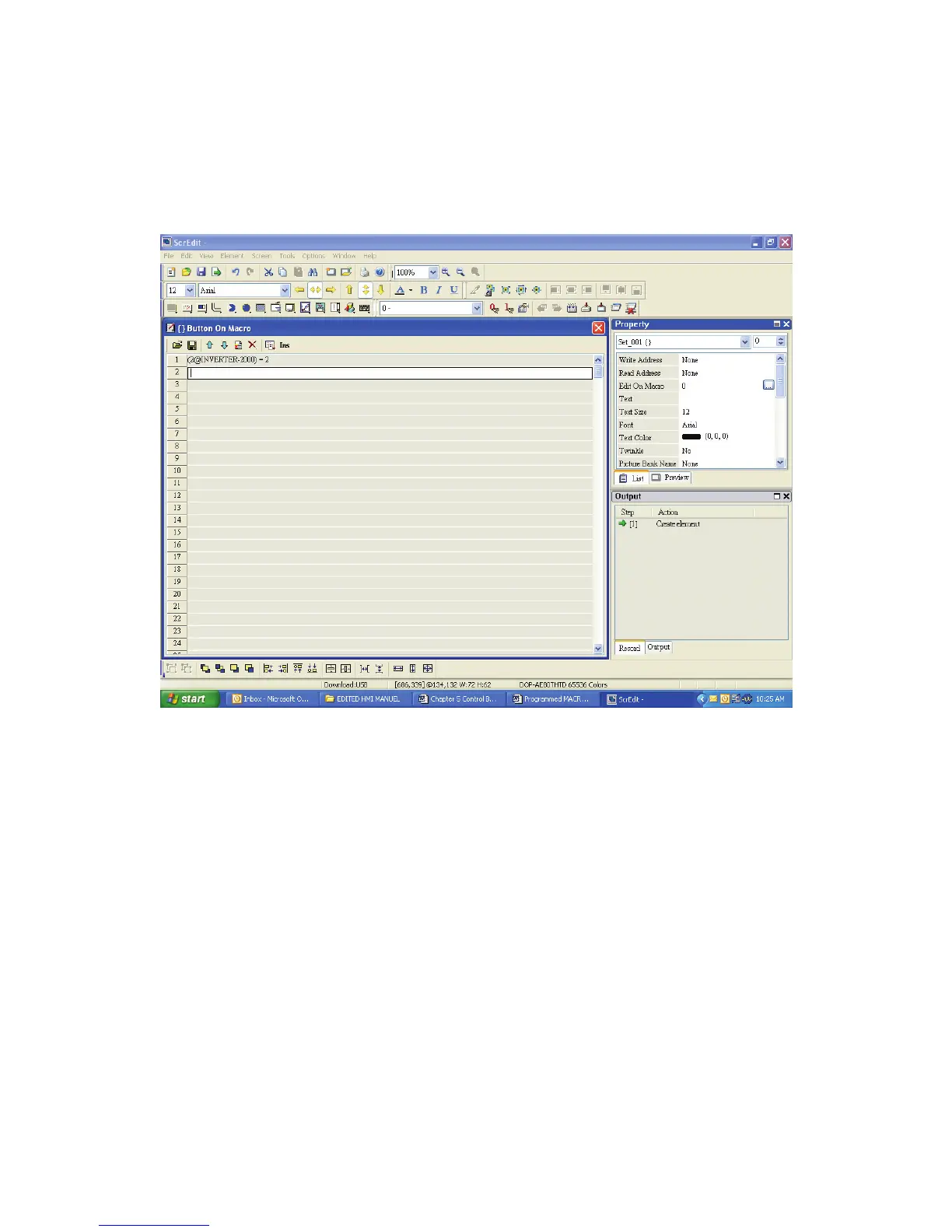

The screen will look like Fig. 7.6.
Fig. 7.6
• Go to the Screen drop down and at the bottom select Screen Cycle Macro
• Type in (2@INVERTER-0200) = 3
• Type in (2@INVERTER-0201) = 4
• This set’s up the drive to accept control from the HMI via RS485 communication.
In the Screen Cycle Macro the user must set-up the Drive to accept the commands coming from the
HMI.
The screen will look like Fig. 7.7.
