Chapter 2 Installation and Setup
6
2.2 Operating principle

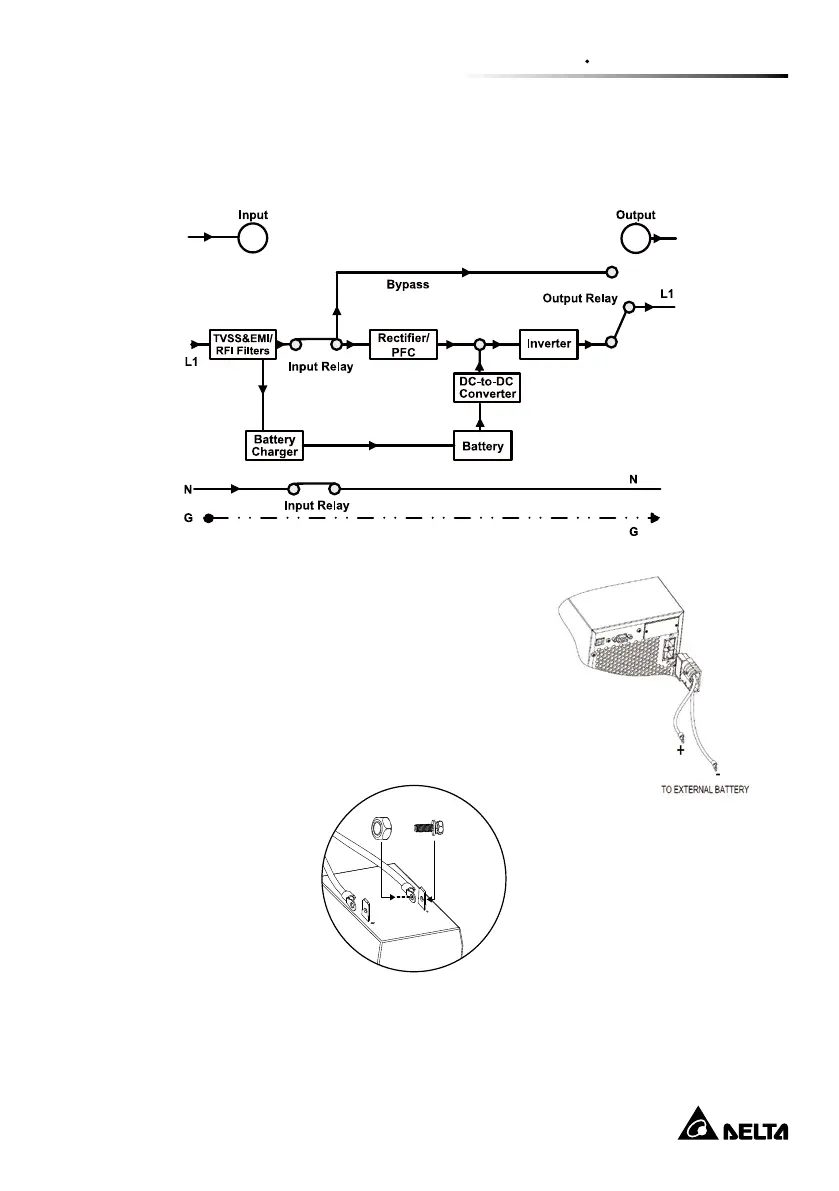

The operating principle of the UPS is shown as below
2.3 Setup the UPS
Step 1: Connect battery wires
If UPS is extended runtime model, please connect
external batteries as below chart.
Please refer to below chart to secure battery cable to
the terminal with supplied screws and nuts.
