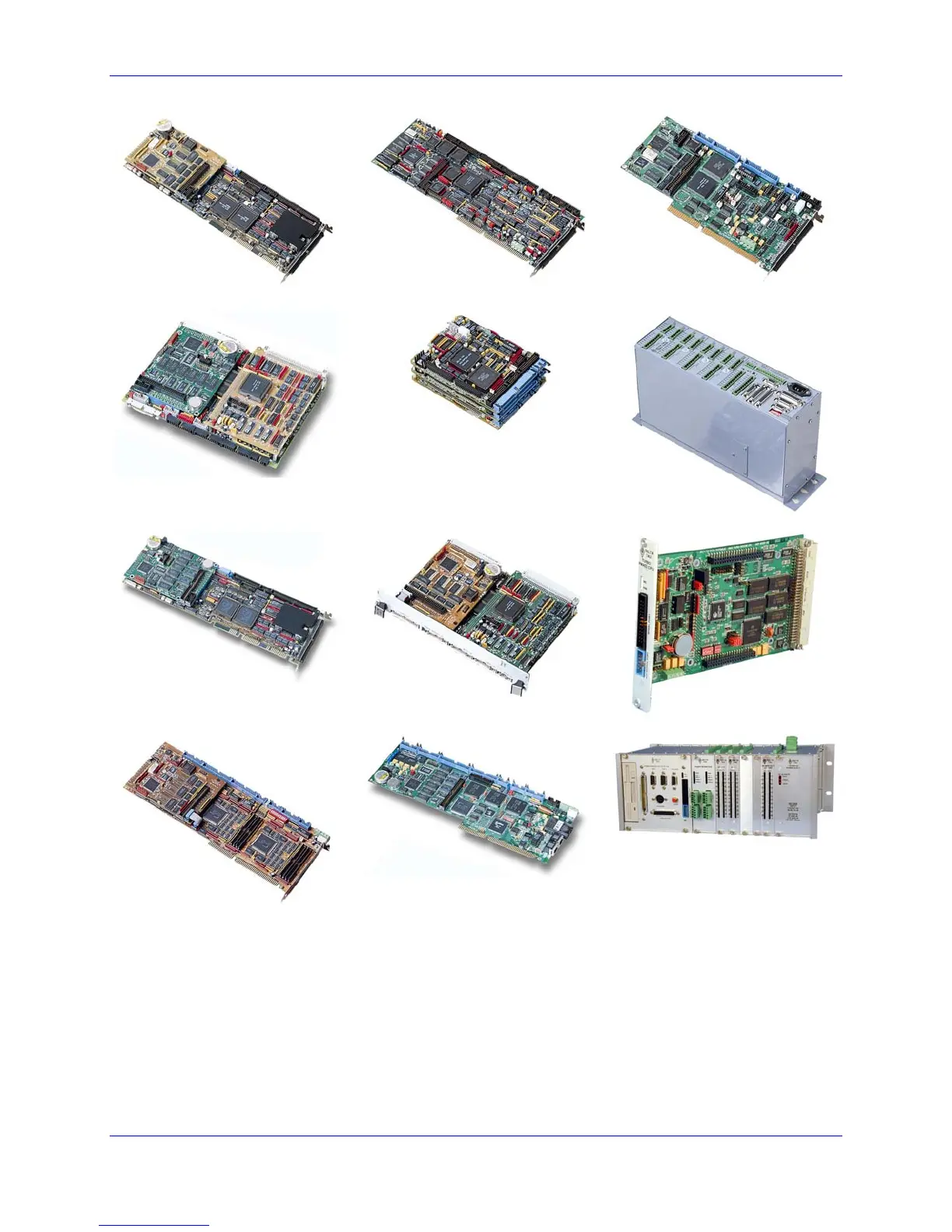

PMAC Quick Reference Guide
Introduction 3
PMAC PC
PMAC Lite
PMAC Mini
PMAC VME
PMAC STD
PMAC Pack
Turbo PMAC PC
Turbo PMAC VME
Turbo PMAC2 3U
Turbo PMAC2 PC
Turbo PMAC2 PC Ultralite
UMAC Turbo System
PMAC Mini
The PMAC Mini is recommended for applications with one or two channel requirements in either a PC
based or stand alone environment.
The dual-ported RAM option in a PMAC Mini is on-board. Two extra full encoder channels (for a total
of four on-board) can be used for dual feedback applications or with the two optional voltage-to-
frequency (V/F) converters, for stepper drivers or hybrid amplifiers control. There is no control panel
port or bus interrupt in the PMAC Mini board. The PMAC Mini board is provided also in a stand-alone
box, the Mini Pack, complete with power supplies and connectors.
