PMAC Quick Reference Guide
PMAC Executive Program, PEWIN 13
PMAC EXECUTIVE PROGRAM, PEWIN
With PEWIN, PMAC can be configured and controlled. PEWIN is designed as a development tool for
creating and managing PMAC implementations. It provides a terminal interface to the PMAC and a text
editor for writing and editing PMAC motion programs and PLC programs. Additionally, PEWIN
contains a suite of tools for configuring and working with PMAC and its accessories including interfaces
for jogging motors, extensive system utilities, screens for viewing various PMAC variables and status
registers.
Configuring PEWIN

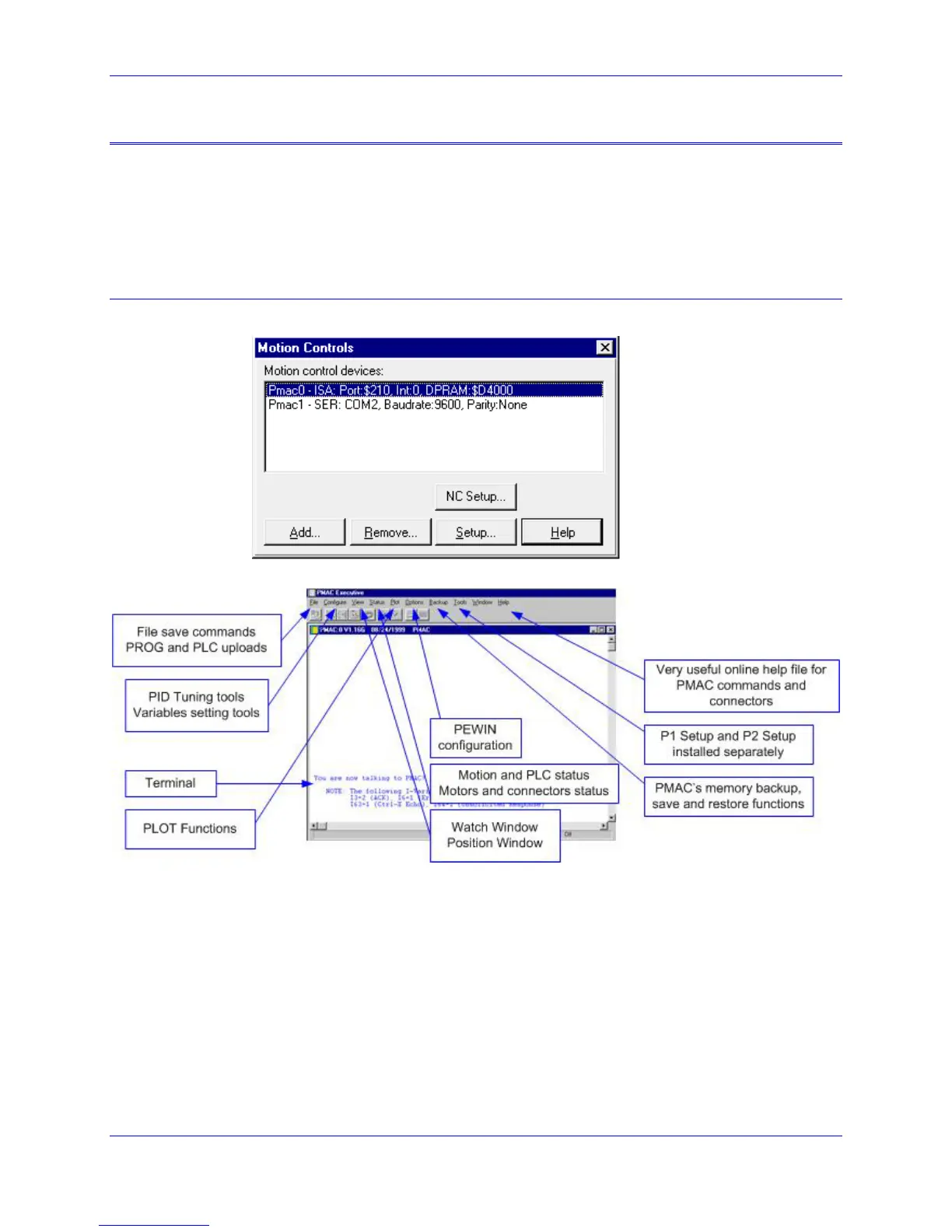

1. Define a new device using the MOTIONEXE.EXE application provided.
2. Open PEWIN and select the Open Terminal menu. Select the device created in the previous step.
3. The colors and different options can be set through the Preferences command present in the Options
menu. Disable the automatic status-reporting feature by un-checking the Enable Terminal Status
Bar from the Terminal preferences.
