Delta 14-651 - Hollow Chisel Mortiser Parts

6

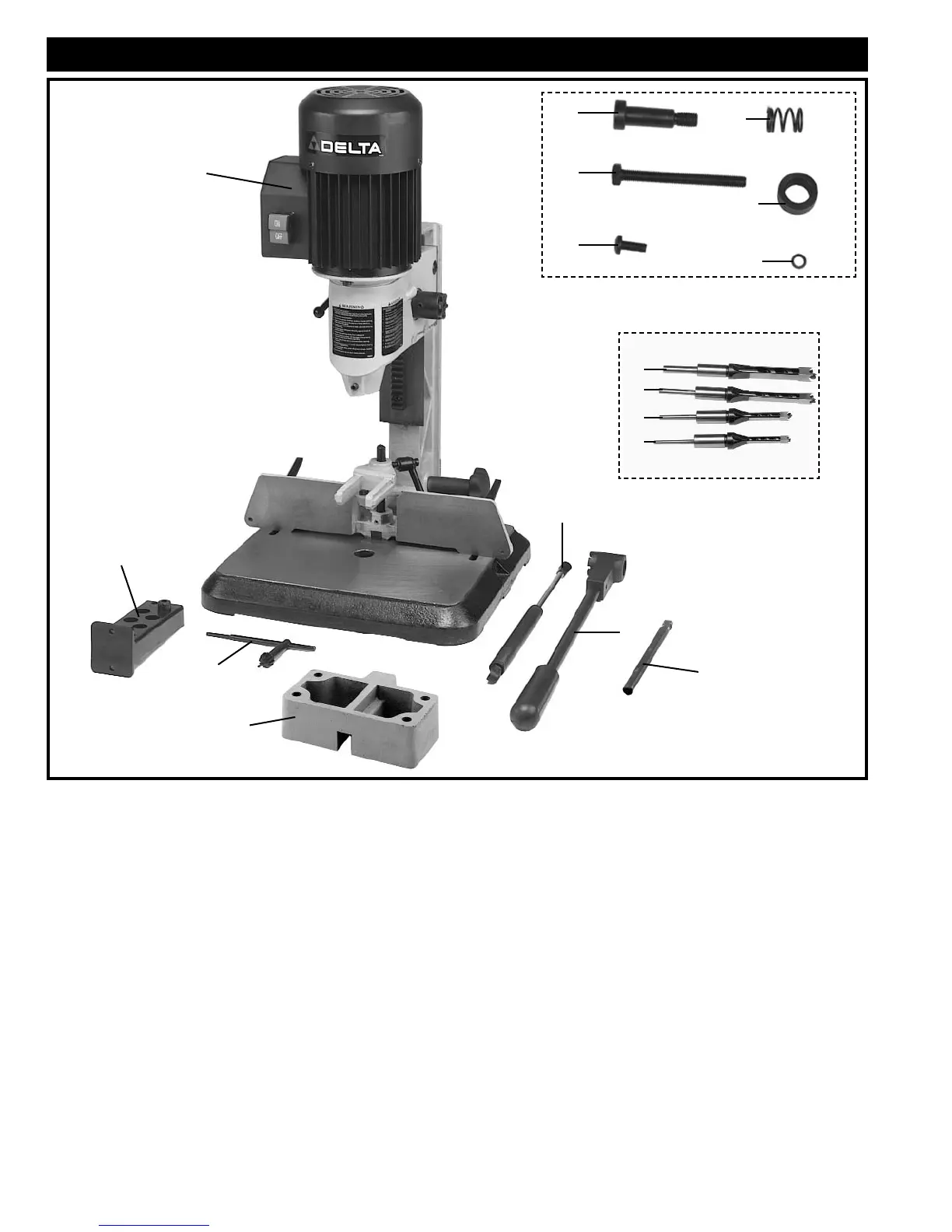

HOLLOW CHISEL MORTISER PARTS
Fig. 2
1. Mortising Machine
2. Tool and Chisel Holder
3. Chuck Key / Wrench
4. Column Extension
5. Hydraulic Cylinder
6. Handle
7. Extended Hold down rod (use with column
extension)
8. Special Screw (for raising and lowering handle)
9. M8x1.25x80mm Head Screw (4) (for assembling
column extension to base)
1
2
3
4
5
6
8
9
10
10. M6x1x25mm Pan Head Screws (2) (for assembling tool
and chisel holder)
11. Spring
12. Bushing (for use with extra long chisels)
13. M6 Lockwashers (2) (for assembling tool and chisel
holder)
14. 1/2" Mortising Chisel and Bit
15. 3/8" Mortising Chisel and Bit
16. 5/16" Mortising Chisel and Bit
17. 1/4" Mortising Chisel and Bit
11
12
13
14
15
16
17
7
