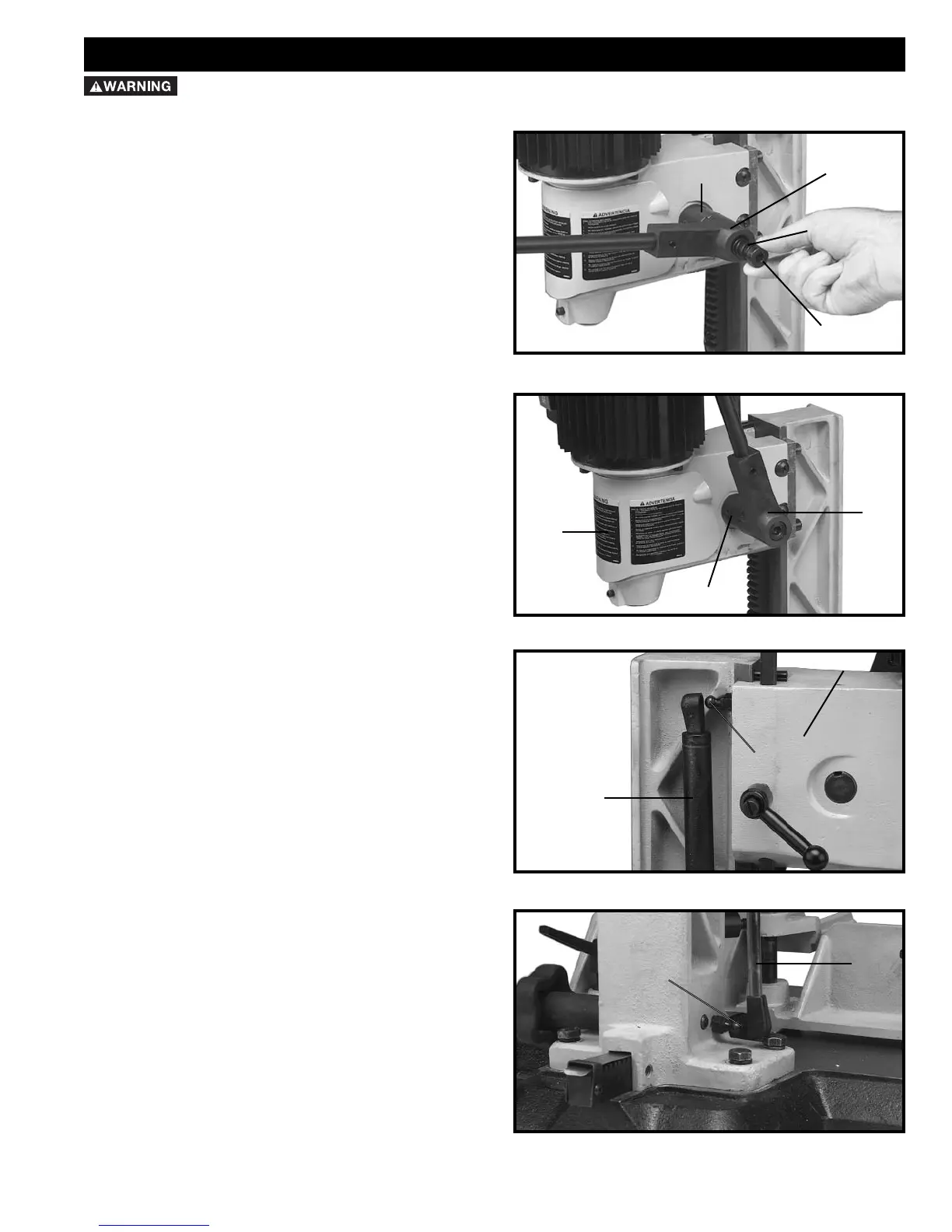

Delta 14-651 - Assembly; Raising and Lowering Handle; Hydraulic Cylinder

7
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION
MANUAL.
RAISING AND LOWERING
HANDLE
1. Assemble hub of handle assembly (A) Fig. 3, to end
of pinion shaft (B) and fasten handle to pinion shaft
using special screw (C) and spring (D).
2. Raise mortising machine head (E) Fig. 4, to the up
position by turning handle (A) clockwise. NOTE: Handle
(A) is spring-loaded and can be repositioned by pulling
out handle and repositioning it on pinion shaft (B).
HYDRAULIC CYLINDER
Make sure head (A) Fig. 5, is held in the up position and
assemble the hydraulic cylinder (B) to the two fittings,
one located on the back of the head (C) Fig. 5, and the
other on the column (D) Fig. 6. Push each end of the
hydraulic cylinder onto each fitting to hold the cylinder in
place.
Fig. 3
Fig. 4
Fig. 5
Fig. 6
A
B
C
D
B
A
E
A
B
C
B
D
ASSEMBLY
