12
EYE INJURY - LASER LIGHT. Do not stare into the laser beam or aperture or into a reflection
from a mirror-like surface.

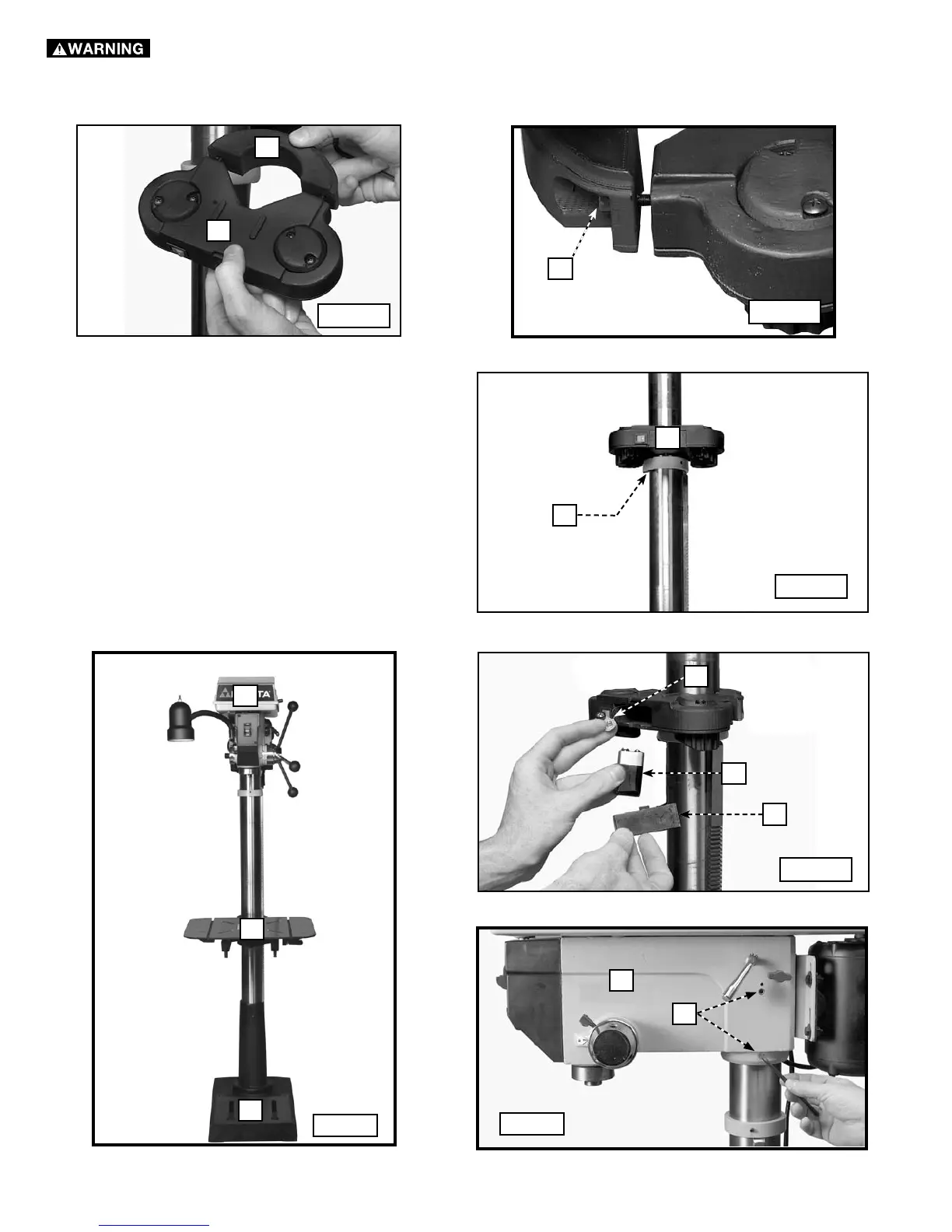

14. Use the two socket head cap screws (C) Fig. LA2 included in laser packaging and the supplied 4mm hex wrench
to attach the front laser housing (A) Fig. LA1 to the rear laser housing (B) loosely.
Fig. LA1
Fig. LA2
A
B
15. Place this laser housing assembly on the drill press
column (D) Fig. LA3. Rest it on the collar (E) Fig.
LA3.
16. Tighten the screws (C) Fig. LA2, making sure that
one laser is positioned on each side of the column
(D), (Fig. LA3).
17. Remove the battery cover (F) Fig. LA4 from the laser
housing.
18. Connect a 9-volt battery (G) (not included) to the
battery terminal (H).
19. Place the battery in the compartment (I). Replace
the cover.
20. Place the drill press head (K) Fig. 11 on the column
as far as it will go. Align the head (K) Fig. 12 with the
table (L) Fig. 12 and base (M) Fig. 12. Tighten the
two head-locking screws (N) Fig. 11 with the 5mm
wrench supplied.
A
Fig. LA3
Fig. LA4
Fig. 11
Fig. 12
D
E
H
G
F
K
N
M
L
K
