MAKING THE LASERS INTERSECT

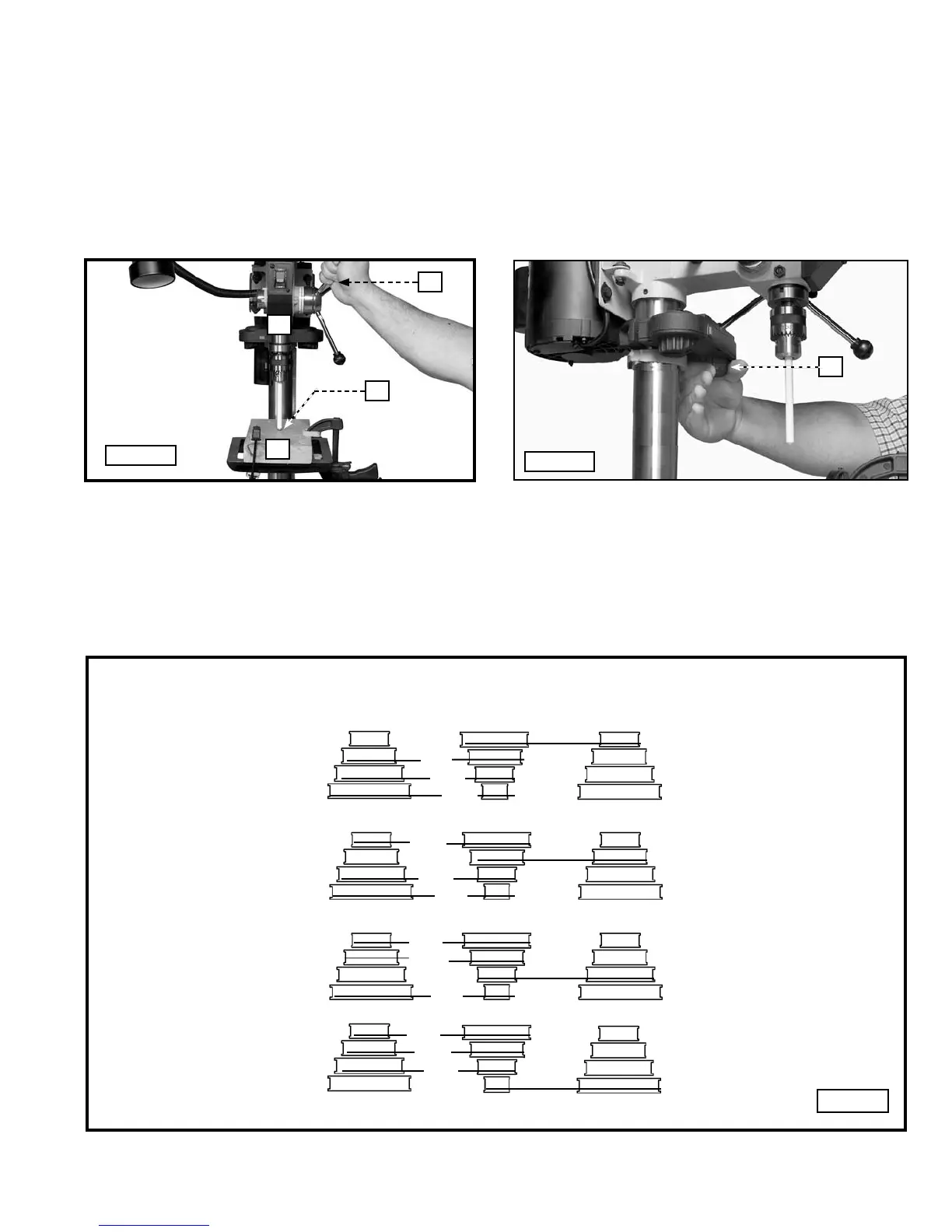

1. Place a piece of wood (A) Fig. L4 on the table and clamp it in place.
2. Use the handle (B) to lower the quill (C). Make an indentation in the wood with the alignment pin (D) Fig. L4.
3. Turn on the laser and adjust both beams to intersect at that point by rotating the laser holder (A) Fig. L5.
4. Ensure that the lasers align at different heights. Raise or lower the table, make a new indentation, and turn on the
lasers. If the lasers do not align at different heights, you will need to check the parallel adjustment.
5. Once the lasers are adjusted, tighten the screws on each side of the laser housing, two of which are shown at (F)
Fig. L2.
Fig. L4
A
D
C
Fig. L5
A
B
SPINDLE SPEEDS
Twelve spindle speeds are available on the drill press. Fig. 28A illustrates the belt positions and the corresponding
speeds.
SPINDLE CENTER
MOTOR
540
360
250
1090
590
410
1820
1280
650
3000
2180
1450
Fig. 28A
