UNPACKING AND CLEANING
Carefully unpack the tool and all loose items from the shipping container(s). Remove the protective coating from all
unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline
or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste
wax.
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.

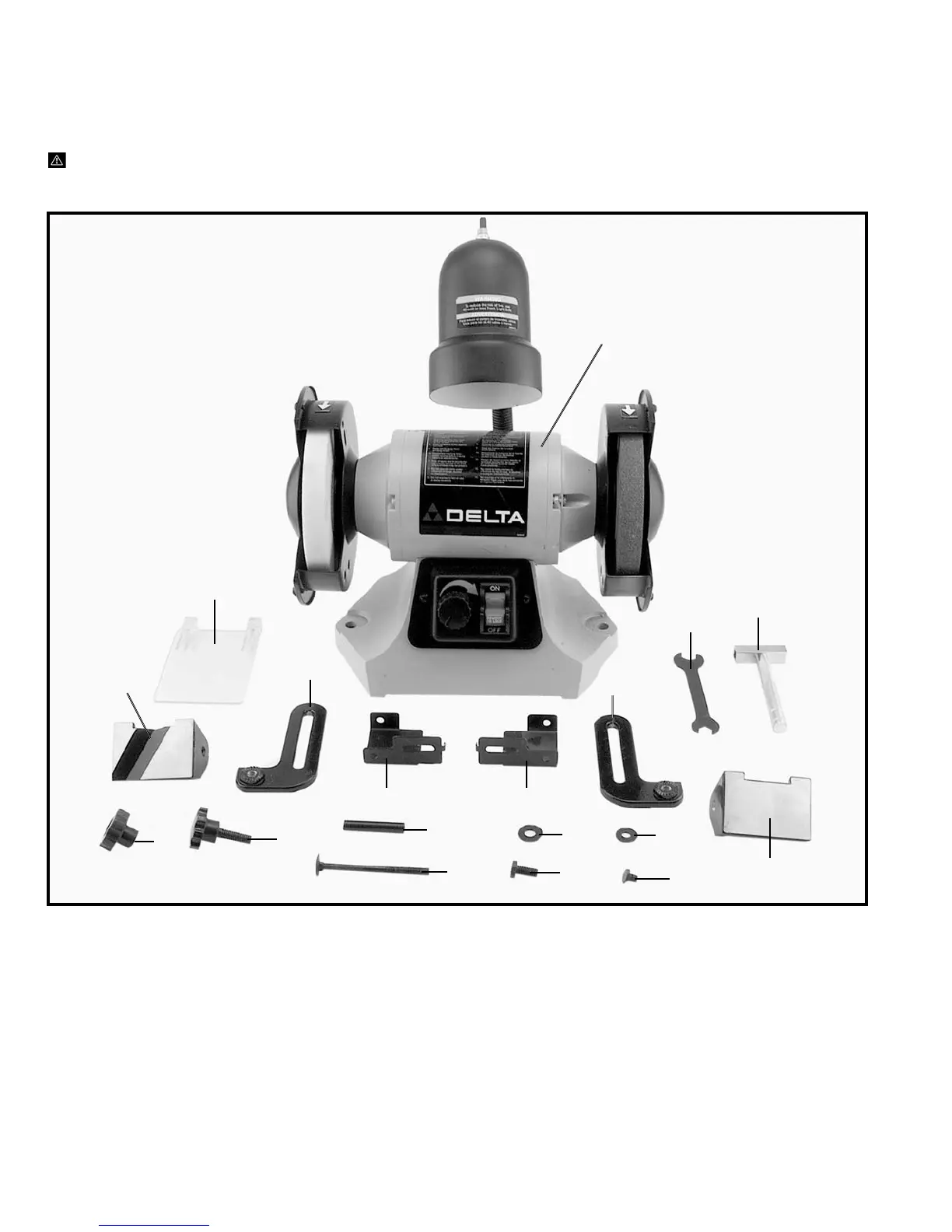

Fig. 2
1. Grinder
2. 1/4-20x1/4" hex head screw (2)
3. 5/16-18x5/8" hex head screw (4)
4. Eye shield bolt (2)
5. 5/16-18x3/4" knob head screw (2)
6. Eye shield knob (2)
7. Eye shield spacer (2)
8. 5/16" flat washer (6)
9. 1/4" flat washer (4)
10. Eye shield (2)
11. Left tool rest
12. Left tool rest arm
13. Left spark guard
14. Right spark guard
15. Right tool rest arm
16. Right tool rest
17. Wrench
18. Wheel dresser
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
