10
ASSEMBLING AND ADJUSTING
WATER TANK

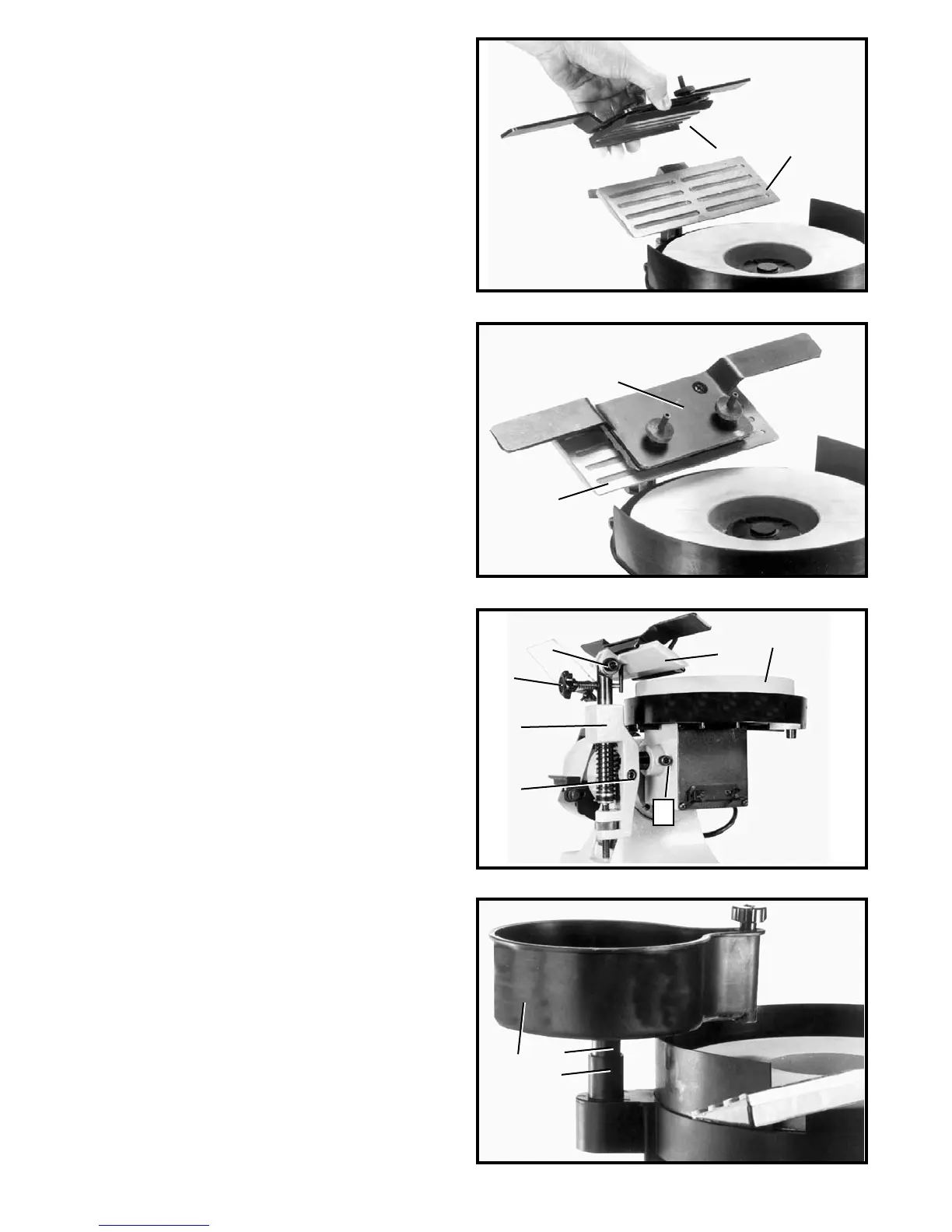

1. Insert stem (A) Fig. 18, of water tank (B) into holder
(C) as shown.
Fig. 15
7. Fig. 16, illustrates tool and chisel holder (K) in posi-
tion on tool rest base (J).
8. To raise or lower the tool and chisel holder assembly
(E) Fig. 17, refer to STEP 5.
9. To tilt the tool and chisel holder (J) Fig.17, to conform
with the angle of the tool to be sharpened, loosen set
screw (N) and turn knob (H) as necessary. After angle
is set, tighten set screw (N).
10. To move the tool and chisel holder (J) Fig. 17, in or
out, loosen set screw (C), and slide assembly (E) in or
out as desired. After adjustment, tighten screw (C).
11. To level tool and chisel holder base (J) Fig. 17, with
the wet grinding wheel (G), loosen screw (F) with sup-
plied wrench, and rotate complete base assembly (E)
until tool and chisel holder base (J) is level with wet
grinding wheel (G), and tighten screw (F).
Fig. 16
Fig. 17
Fig. 18
6. Place tool and chisel holder (K) Fig. 15, in position on
base (J).
C
K
J
K
J
N
H
E
F
G
J
B
A
C
