7
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 1 hour.
To reduce the risk of injury, turn unit off and disconnect it from power source before installing and remov-
ing accessories, before adjusting or when making repairs. An accidental start-up can cause injury.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your
machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
Screw driver (not supplied)
Open-end wrenches (not supplied)
Hex Wrenches (not supplied)
Fig. 3
ASSEMBLING AND ADJUSTING EYESHIELD

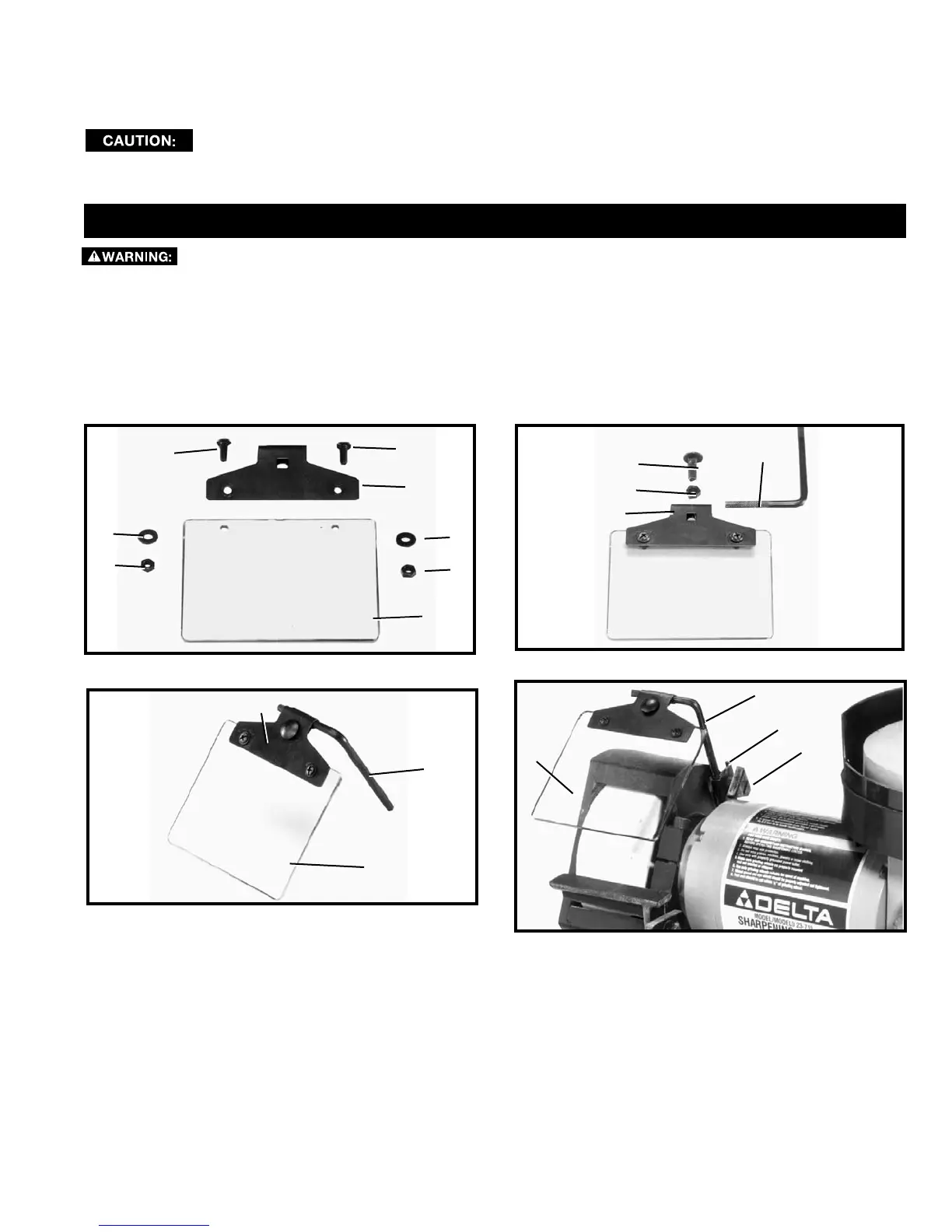

1. Position eyeshield (A) Fig. 3, under lip of frame (B). Line up holes in eyeshield (A) with holes in frame (B) and fasten
eyeshield to frame using two 1/2” long round head screws (C), flat washers (D) and hex nuts (E). Place flat washer
on round head screw, place screw through hole and then fasten hex nut to screw under the frame.
2. Insert short end of eyeshield mounting rod (F) Fig. 4, into top of frame (B) and fasten in place with the 3/4” long car-
riage head bolt (G) and hex nut (H).
3. Figure 5, illustrates the mounting rod (F), frame (B) and eyeshield (A) assembled.
4. Assemble the long end of eyeshield mounting rod (F) Fig. 6, to the side of the dry wheel guard using clamp bracket
(J) and lock knob (K). The eyeshield (A) is fully adjustable to any position by moving shield (A) or loosening lock knob
(K) and repositioning mounting rod (F).
G
H
B
F
D
E
E
D
A
C
B
F
A
Fig. 4
Fig. 5
Fig. 6
A
B
C
K
J
F
