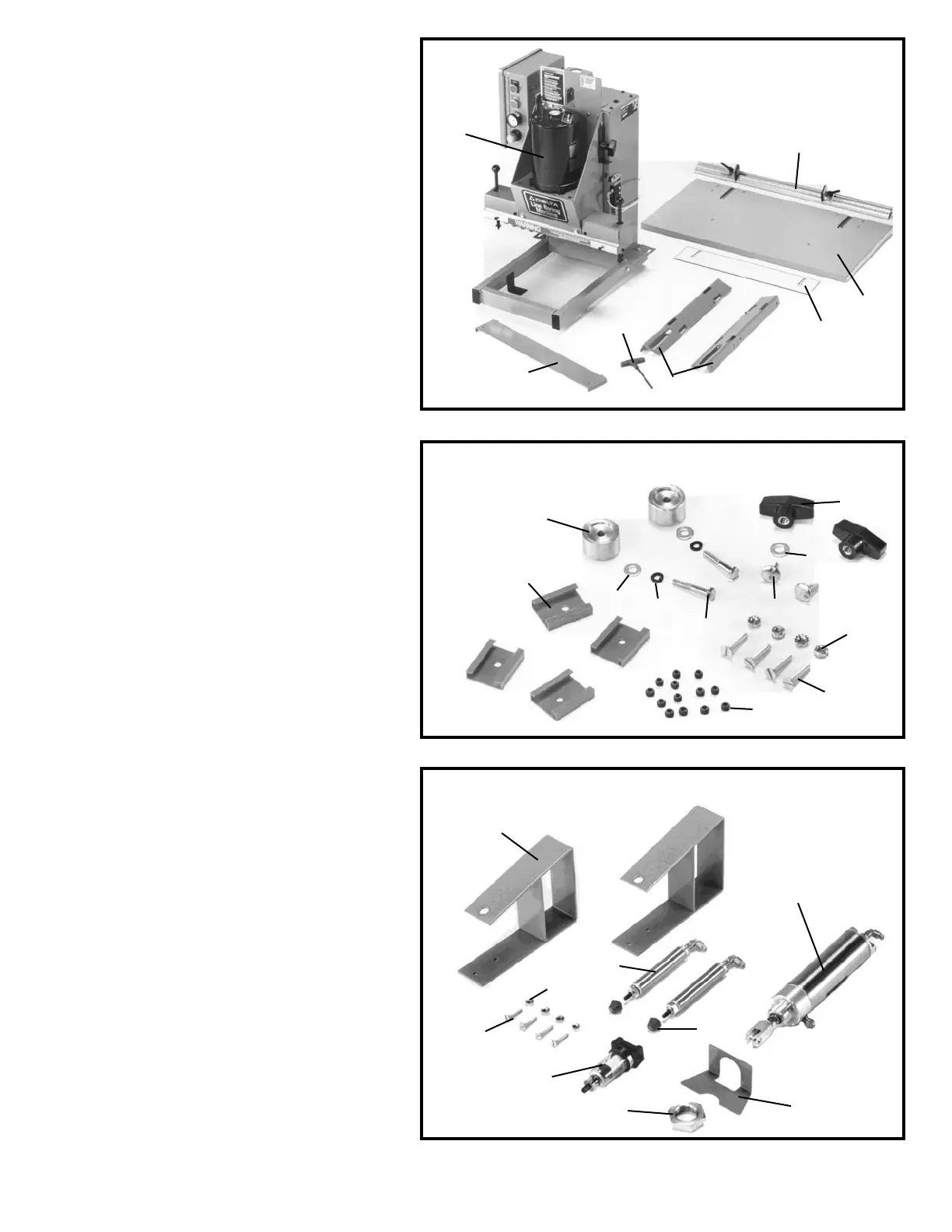

For 32-326 13-Spindle
Pneumatic Line Boring Machine
For 32-325 13-Spindle Line Boring Machine
For 32-326 13-Spindle Pneumatic Line Boring Machine
For 32-326 13-Spindle
Pneumatic Line Boring Machine
18 - Table Bracket Slides (4)
19 - Spacers (2)
20 - 1/4" Flat Washers (2)
21 - 1/4" Lockwashers (2)
22 - 1/4-20x1-1/2" Hex Screws (2)
23 - Table Lock Knobs (2)
24 - 5/16" Flat Washers (2)
25 - 5/16-18x3/4" Carriage Bolts (2)
26 - 1/4-20 Hex Lock Nuts (4)
27 - 1/4-20x1-1/4" Flat Head Screws (4)
28 - 5/16-24x1/4" Hex Set Screws (13)
30 - 1/4-20x1-1/4" Flat Head Screws (4)
31 - 1/4-20 Hex Lock Nuts (4)
32 - Air Clamp Brackets (2)
33 - Air Clamps (2)
34 - Rubber Feet for Air Clamps (2)
35 - Air Cylinder
36 - Guard
37 - 1-3/8"-12 Hex Nut
38 - Air Filter
10 - Pneumatic Boring Machine
11 - Fence
12 - Table
13 - Clear Plastic Guard
14 - Table Brackets
15 - Wrench
16 - Gage for Aligning Fence to Drill Head
10
11
12
13
14
15
16
19
18
20
21
22
23
24
25
26
27
28
32
30
31
33
34
35
36
37
38
