Delta 36-240 - Assembling Dust Elbow and Dust Bag

9

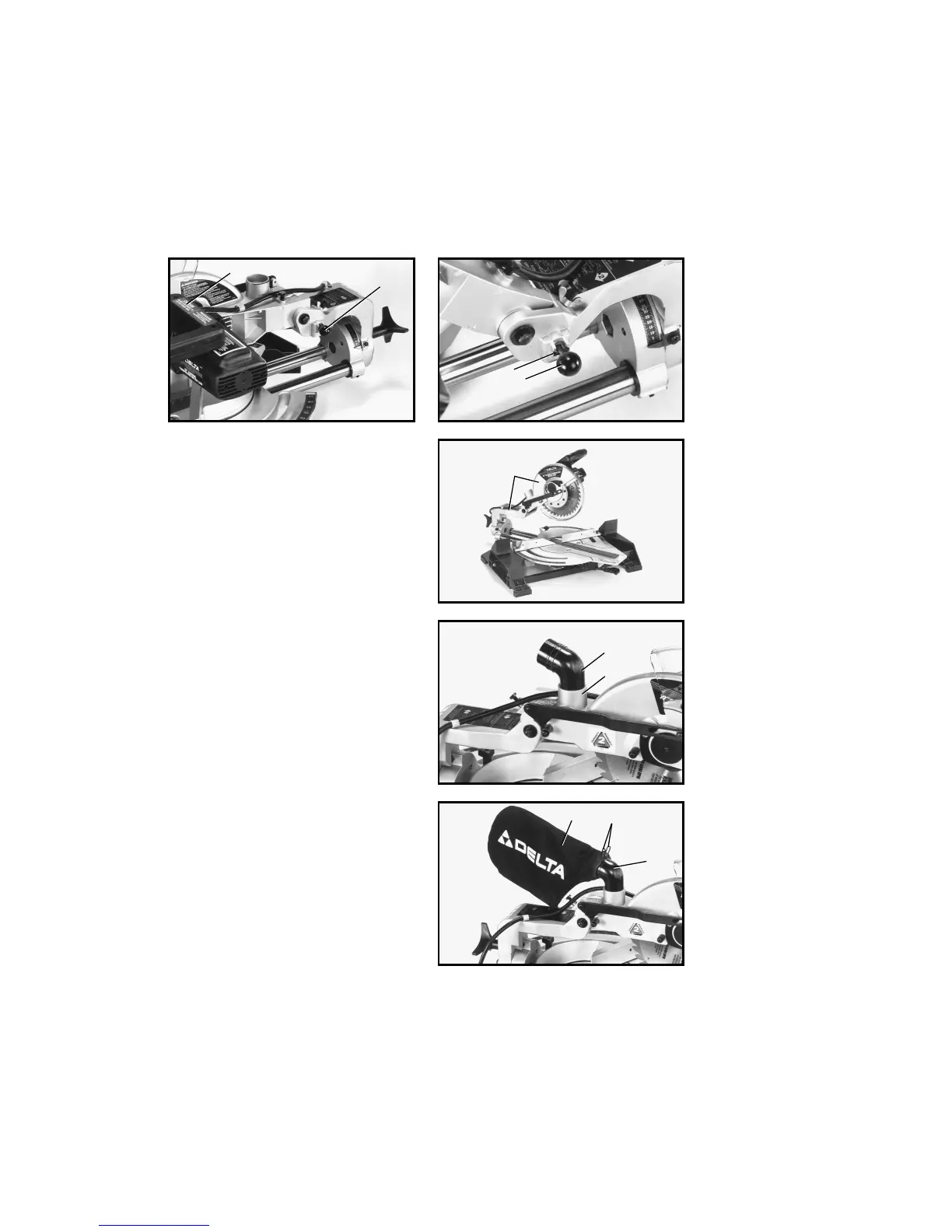

Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 21
ASSEMBLING DUST ELBOW
AND DUST BAG
1. Insert smooth end of dust elbow (A) Fig. 20, into
opening (B). The dust elbow (A) can be rotated as desired.
RAISING THE
CUTTINGHEAD
1. While holding the cuttinghead (A) Fig. 17, down, pull
out and rotate cuttinghead lock knob (B) 90 degrees
until pin (C) Fig. 18, is in the horizontal position as
shown. The cuttinghead can then be raised.
2. Fig. 19, illustrates the cuttinghead (A) in the raised
position.
2. Compress spring clips (C) Fig. 21, on dust bag (D)
and clip dust bag onto end of elbow (A) as shown.
A
B
C
B
A
A
B
D
A
C
