12

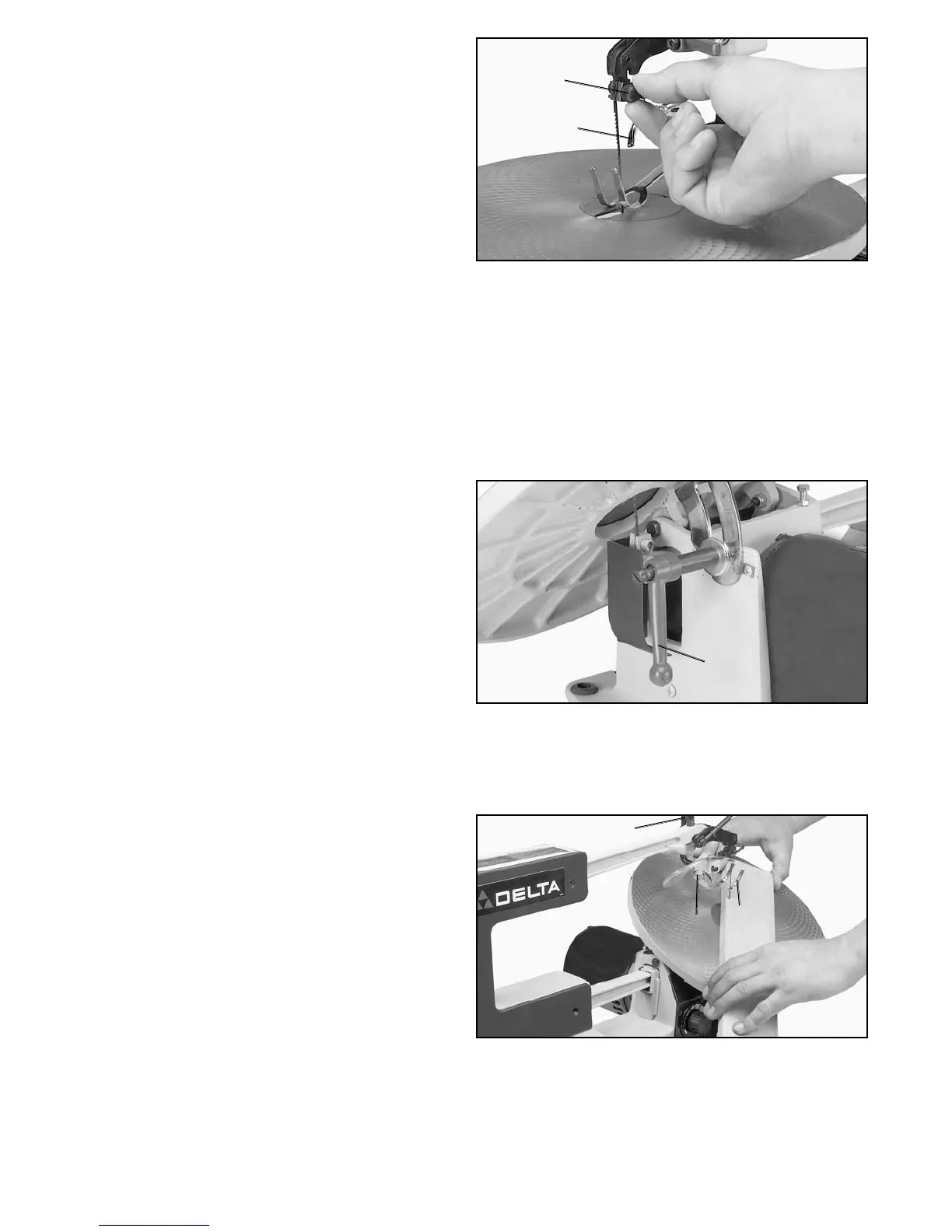

Fig. 30
ADJUSTING
CLAMPING ACTION OF
UPPER BLADE HOLDER
Different widths of scroll saw blades will make it neces-
sary to adjust the clamping action of the upper blade
holder. It should be noted, however, that very little
adjustment is necessary and very little clamping force is
required to hold the blade satisfactorily.
1. Move the chuck locking lever (A) Fig. 30, to the rear
(open) position, as shown.
2. Turn locknut (C) Fig. 30, clockwise to tighten and
counterclockwise to loosen the clamping action of the,
blade holder. Very little movement of locknut (C) will be
necessary.
Fig. 31
Fig. 32
TILTING THE TABLE
The table on your scroll saw can be tilted 45 degrees to
the left for bevel cutting operations by loosening table
lock handle (A) Fig. 31, tilt the table to the desired angle
and tighten lock handle (A).
When bevel cutting, the holddown (B) Fig. 32, can be
adjusted to lay flat on the stock by loosening screw (C)
and tilting the holddown (B) accordingly. Then tighten
screw (C).
A
C
A
B
C
D
