11

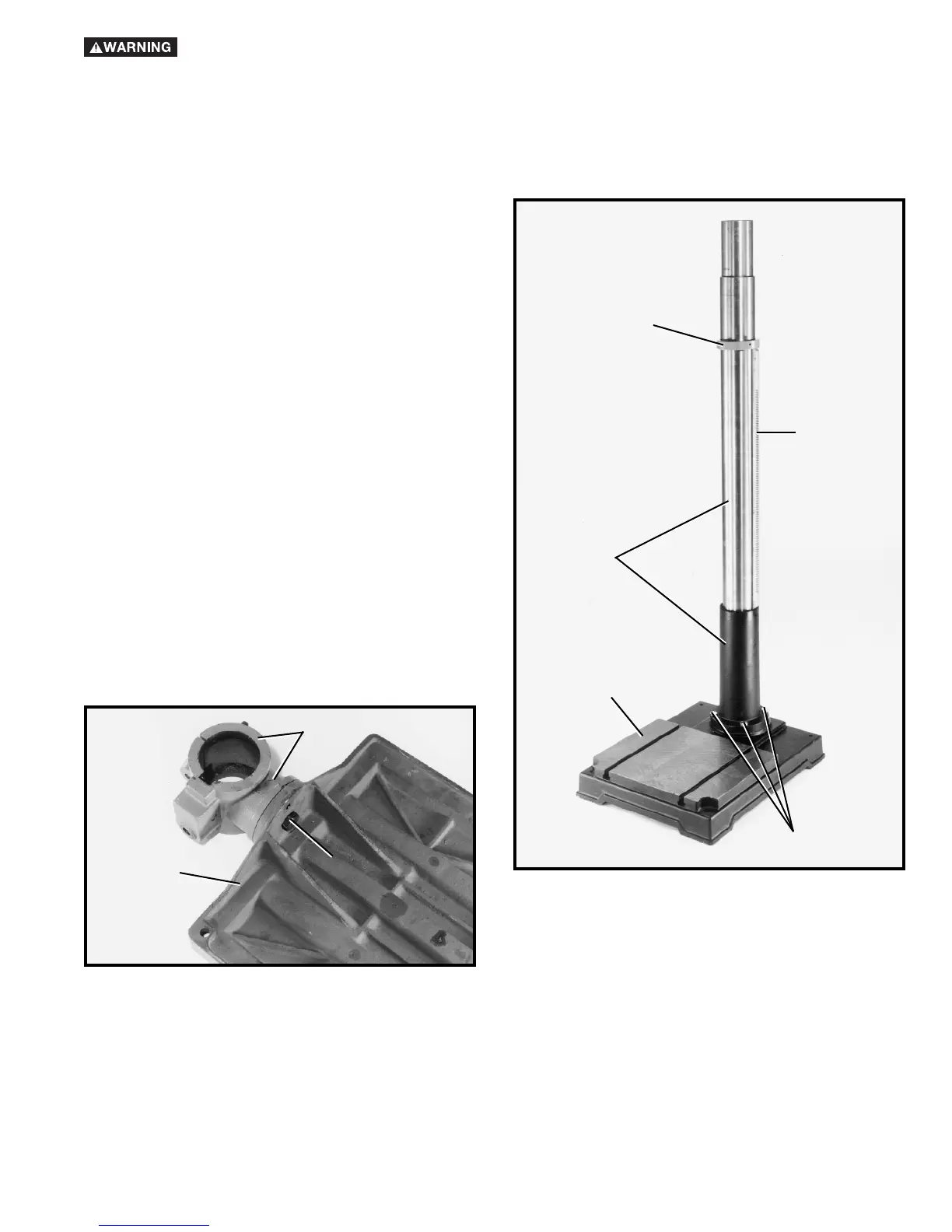

Fig. 2
Fig. 3
ASSEMBLING THE
DRILL PRESS
1. Assemble column (A) Fig. 2, to base (B) using four M
12 x 45mm long hex head screws (three of which are
shown at [C]). Loosen set screw in collar (D) and remove
collar (D) and raising rack (E).
2. Remove bolt (F) Fig. 3, and remove table (G) from
table bracket (H).
H
G
F
B
C
A
E
D
THE PLYWOOD BASE MUST BE
SECURED TO THE FLOOR OR SUPPORTING
SURFACE IF THERE IS ANY TENDENCY OF THE
DRILL PRESS TO VIBRATE, SLIDE OR WALK
DURING NORMAL OPERATION.
