10
Fig. 16
Fig. 17
Fig. 18

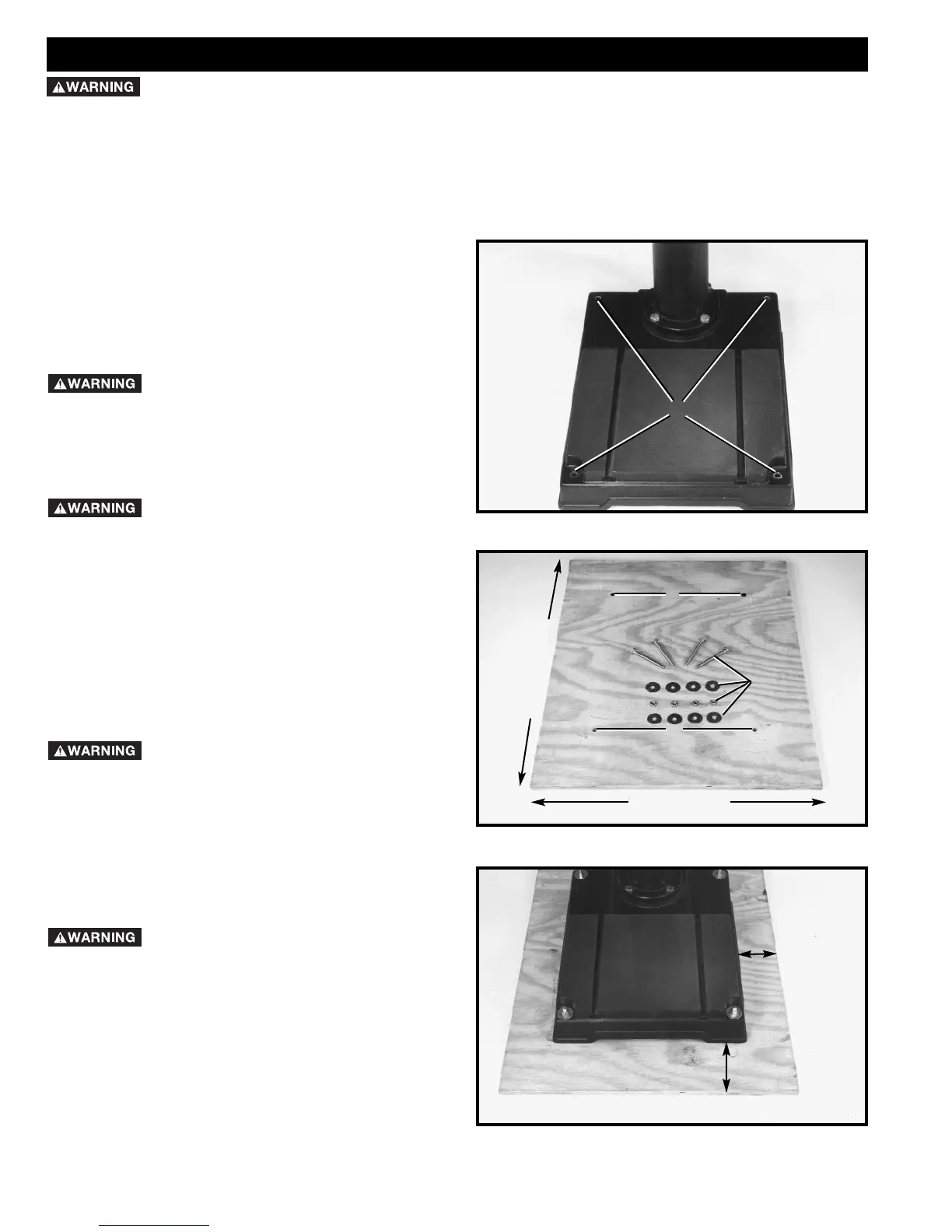

MOUNTING THE MACHINE
1. If your drill press is to be used in one permanent
location, the drill press base must be secured to the
supporting surface with fasteners through the four
mounting holes, (A) Fig. 16, in the drill press base.
IF YOU DO NOT FASTEN YOUR DRILL
PRESS IN A PERMANENT MANNER,
THE DRILL PRESS MUST BE FASTENED TO A
PLYWOOD MOUNTING BOARD TO PREVENT THE
DRILL PRESS FROM TIPPING OVER DURING
NORMAL USE.
USE A GOOD GRADE OF PLYWOOD
WITH A MINIMUM 3/4
″″
THICKNESS.
DO NOT MAKE THE MOUNTING BOARD FROM
PARTICLE BOARD SINCE PARTICLE BOARD CAN
BREAK EASILY.
2. Use a playwood board base with the minimum
dimensions shown in Fig. 17 for mounting the drill press
to a supporting surface.
3. Place the drill base, as shown in Fig. 18, centered on
the supporting surface.
WHEN THE DRILL PRESS IS
MOUNTED TO THE SUPPORTING
BOARD, THE BOARD MUST EXTEND A MINIMUM
OF 3
″″
BEYOND EACH EDGE OF THE DRILL PRESS
BASE, AS SHOWN IN FIG. 18.
4. Drill four 3/8″ diameter holes (B) Fig. 17, corresponding to
the mounting holes (A) Fig. 16, of the drill press base in a 26″
x 32″ minimum size plywood board.
PLACE A PIECE OF SCRAP WOOD
UNDERNEATH THE SUPPORTING
SURFACE WHEN DRILLING THE THROUGH HOLES
SO THAT THE DRILL BIT WILL NOT DAMAGE THE
MATERIAL BENEATH THE SUPPORTING SURFACE.
5. Fasten the drill press base to the mounting board
using the carriage bolts, nuts, and washers (C) Fig.17,
furnished with your drill press. For stability, the holes for
the carriage bolt heads and flat washers must be
countersunk so the bolt heads are flush with the bottom
surface of the mounting board.
A
B
B
26
″″
Minimum
32
″″
Minimum
3
″″
Minimum
3
″″
Minimum
C
ASSEMBLY
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.
ASSEMBLY TOOLS REQUIRED
* 3mm, 4mm and 5mm hex wrenches (supplied) * 13mm, 17mm and 29mm socket wrenches (not supplied)
* Soft tip hammer (not supplied)
ASSEMBLY TIME ESTIMATE 1-2 hours.
