Delta ASD-A2-0421 Series User Manual

Chapter 3 Wiring ASDA-A2
3-62 Revision February, 2017
NOTE
1) The termination resistor is suggested to use 120 Ω (Ohm) 0.25W or above.

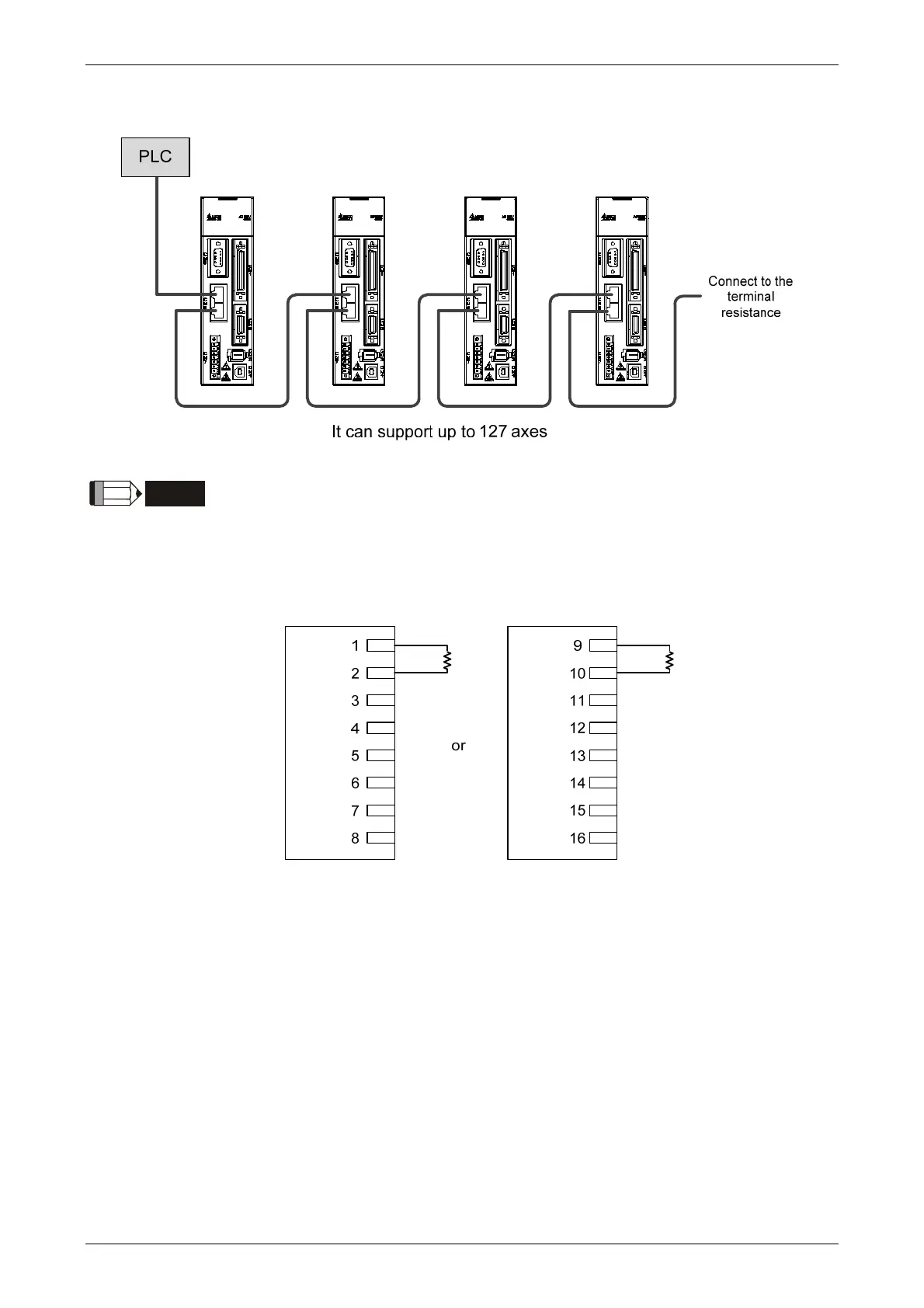

2) The wiring method of concatenate more than one drives is based on two terminals of
CANopen. One is for receiving and another one is for transmission. And the servo drive
connects to the termination resistor. The wiring diagram of the termination resistor is shown as
the followings:

Delta ASD-A2-0421 Series Specifications

General

Brand	Delta
Model	ASD-A2-0421 Series
Category	Servo Drives
Language	English
