Delta ASD-A2-1521 Series User Manual

Chapter 12 Absolute System ASDA-A2
Revision February, 2017 12-11

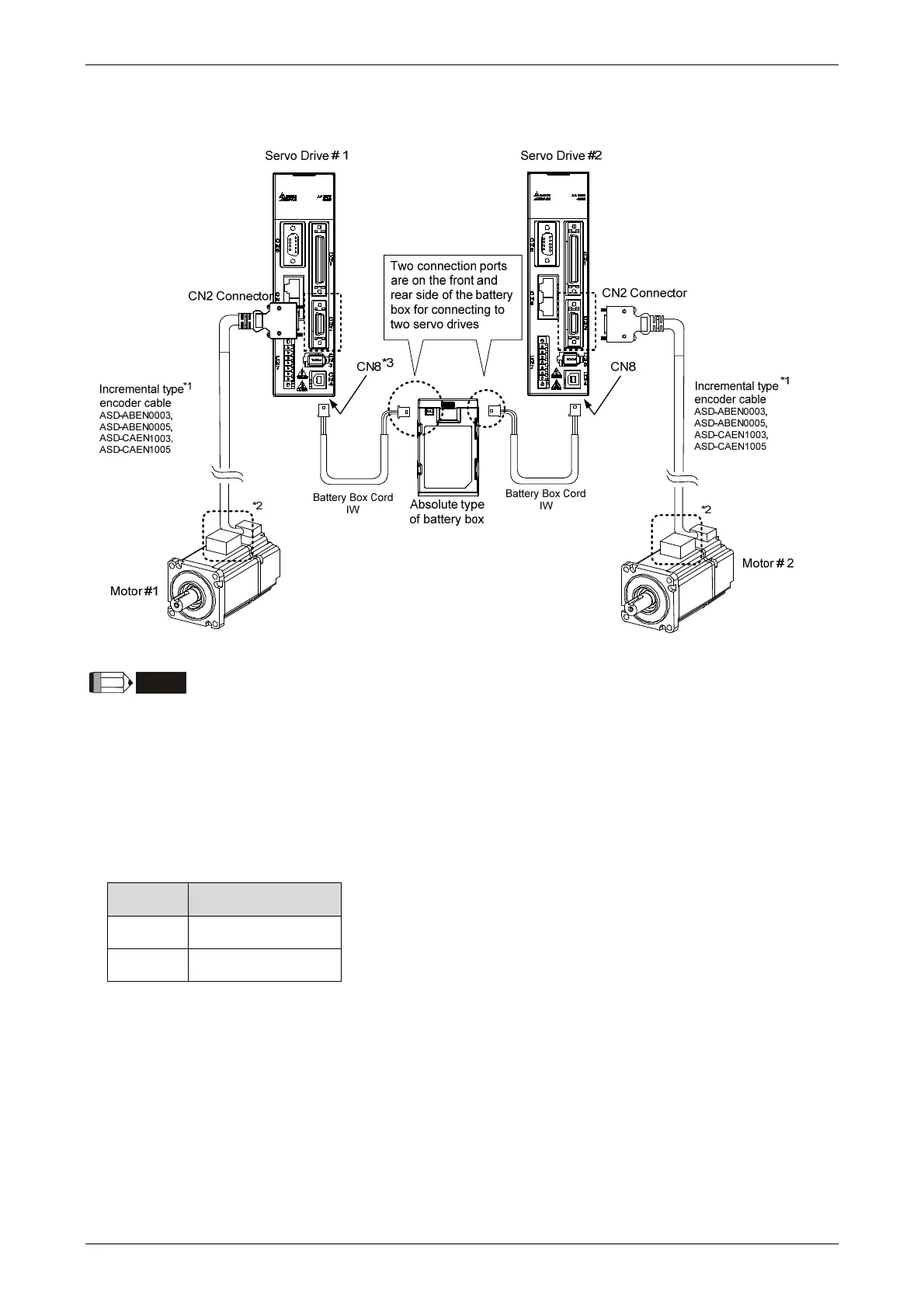

Dual Battery Box (Connect to CN8)
NOTE
This is the wiring diagram for connecting to a single battery box. The scale of the objects does not
match the dimensions as shown in the drawing above. For different models of AC servo drives and
motors, the connection cables may differ.
1* and 2* Please refer to section 12.1.3.
3* Definition of CN8 connector
Please conduct the wiring according to the following instructions. Wrong wiring might
cause battery explosion.
Pin No Terminal Symbol
1 BAT+
2 BAT-

Delta ASD-A2-1521 Series Specifications

General

Model	ASD-A2-1521
Output Power	1.5 kW
Motor Power	1.5 kW
Protection Class	IP20
Type	AC Servo Drive
Communication Protocol	RS-485, CANopen
Protection Features	Over Voltage, Over Current, Overload, Overheat, Low Voltage, Short Circuit
