Delta ASD-A2-3023 Series Instruction Sheet

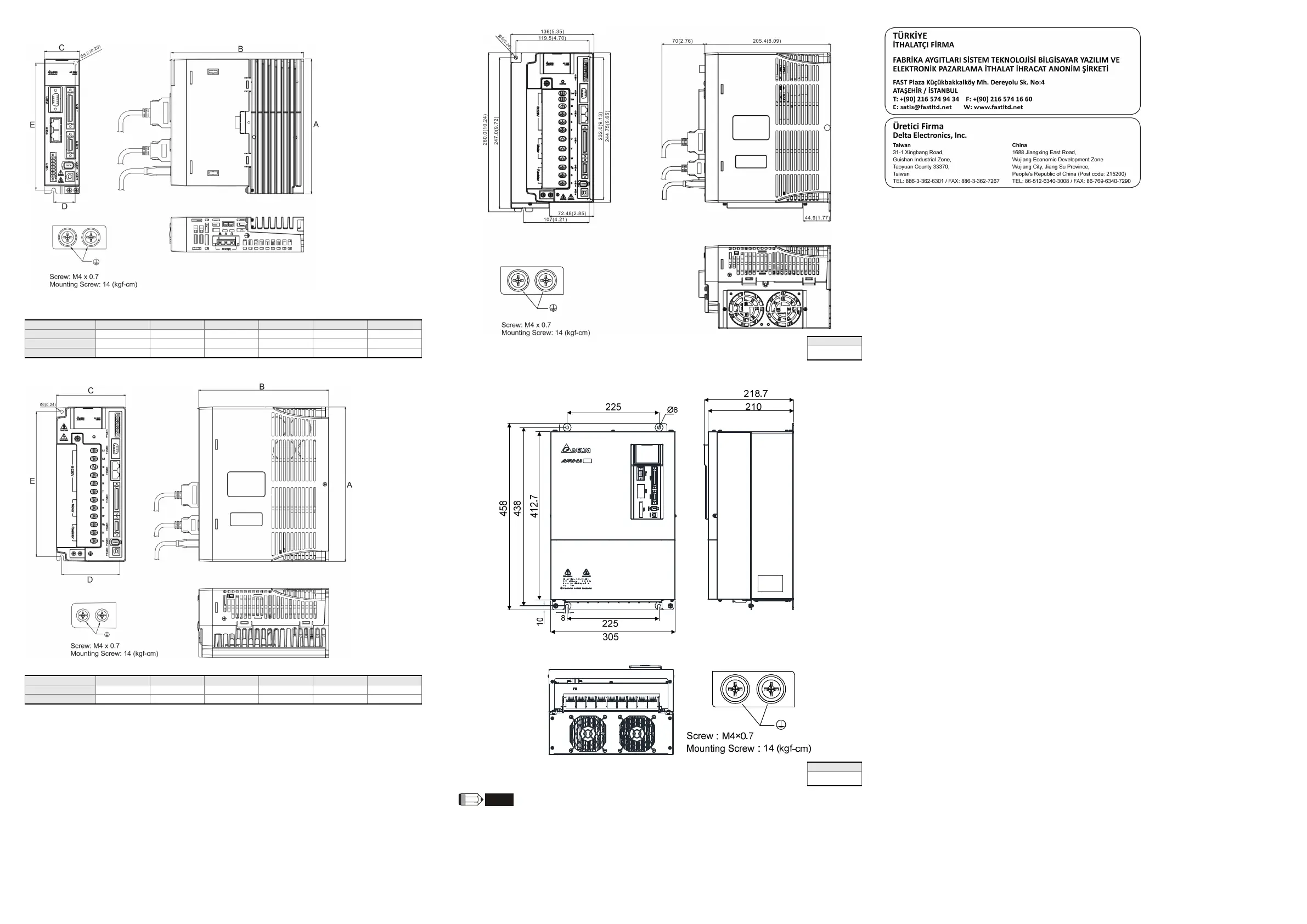

 Servo Sürücü Ölçüleri
100W ~ 3kW modeller
Power A B C D E Weight
100W ~ 400W 173 (6.81) 170 (6.69) 45 (1.77) 27.5 (1.08) 163 (6.42) 1.5 (3.3)
750W ~ 1.5kW 173 (6.81) 180 (7.09) 65 (2.56) 47 (1.83) 163 (6.42) 2.0 (4.4)
2kW ~ 3kW 216 (8.50) 203 (7.99) 82 (3.23) 62 (2.44) 203 (7.99) 2.89 (6.36)
4.5W ~ 5.5kW modeller
Power A B C D E Weight
4.5kW 245 (9.65) 206 (8.11) 110 (4.33) 91 (3.58) 230 (9.06) 3.0 (6.6)
5.5kW 245 (9.65) 206 (8.11) 123 (4.84) 107 (4.21) 230 (9.06) 5.5 (12.1)
7.5kW modeller
Weight
7.5（16.5）
11~15kW modeller
Weight
20（44.0）
NOTE
1) Ölçüler milimetre ve (inch).
2) Ağırlıklar kilogram ve (pounds).
3) Gerçek görüntüsü için, satın alınan ürüne bakınız.

Delta ASD-A2-3023 Series Specifications

General

Brand	Delta
Model	ASD-A2-3023 Series
Category	Servo Drives
Language	English
