Delta ASD-A2-3023 Series Instruction Sheet

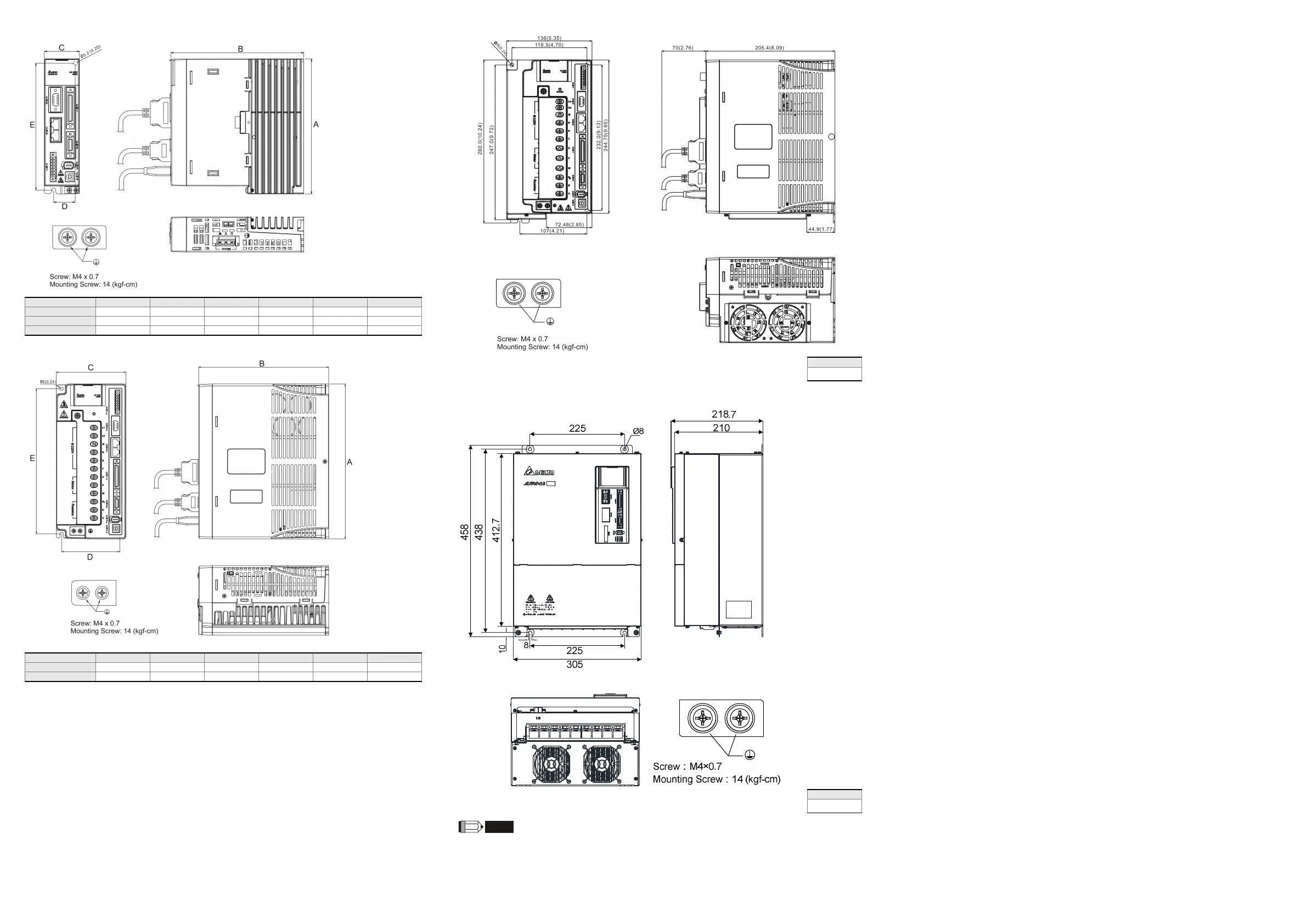

 Servo Drive Dimensions
100W ~ 3kW models
Power A B C D E Weight
100W ~ 400W 173 (6.81) 170 (6.69) 45 (1.77) 27.5 (1.08) 163 (6.42) 1.5 (3.3)
750W ~ 1.5kW 173 (6.81) 180 (7.09) 65 (2.56) 47 (1.83) 163 (6.42) 2.0 (4.4)
2kW ~ 3kW 216 (8.50) 203 (7.99) 82 (3.23) 62 (2.44) 203 (7.99) 2.89 (6.36)
4.5W ~ 5.5kW models
Power A B C D E Weight
4.5kW 245 (9.65) 206 (8.11) 110 (4.33) 91 (3.58) 230 (9.06) 3.0 (6.6)
5.5kW 245 (9.65) 206 (8.11) 123 (4.84) 107 (4.21) 230 (9.06) 5.5 (12.1)
7.5kW models
Weight
7.5（16.5）
11~15kW models
Weight
20（44.0）
NOTE
1) Dimensions are in millimeters and (inches).
2) Weights are in kilograms and (pounds).
3) For the actual appearance, please refer to the actual purchased product.
4) In this instruction sheet
, actual measured values are in metric units. The units in (imperial units) are for reference only.
Please use metric for precise measurements.
