ASDA-A2 Chapter 6 Control Mode of Operation
Revision February, 2017 6-11

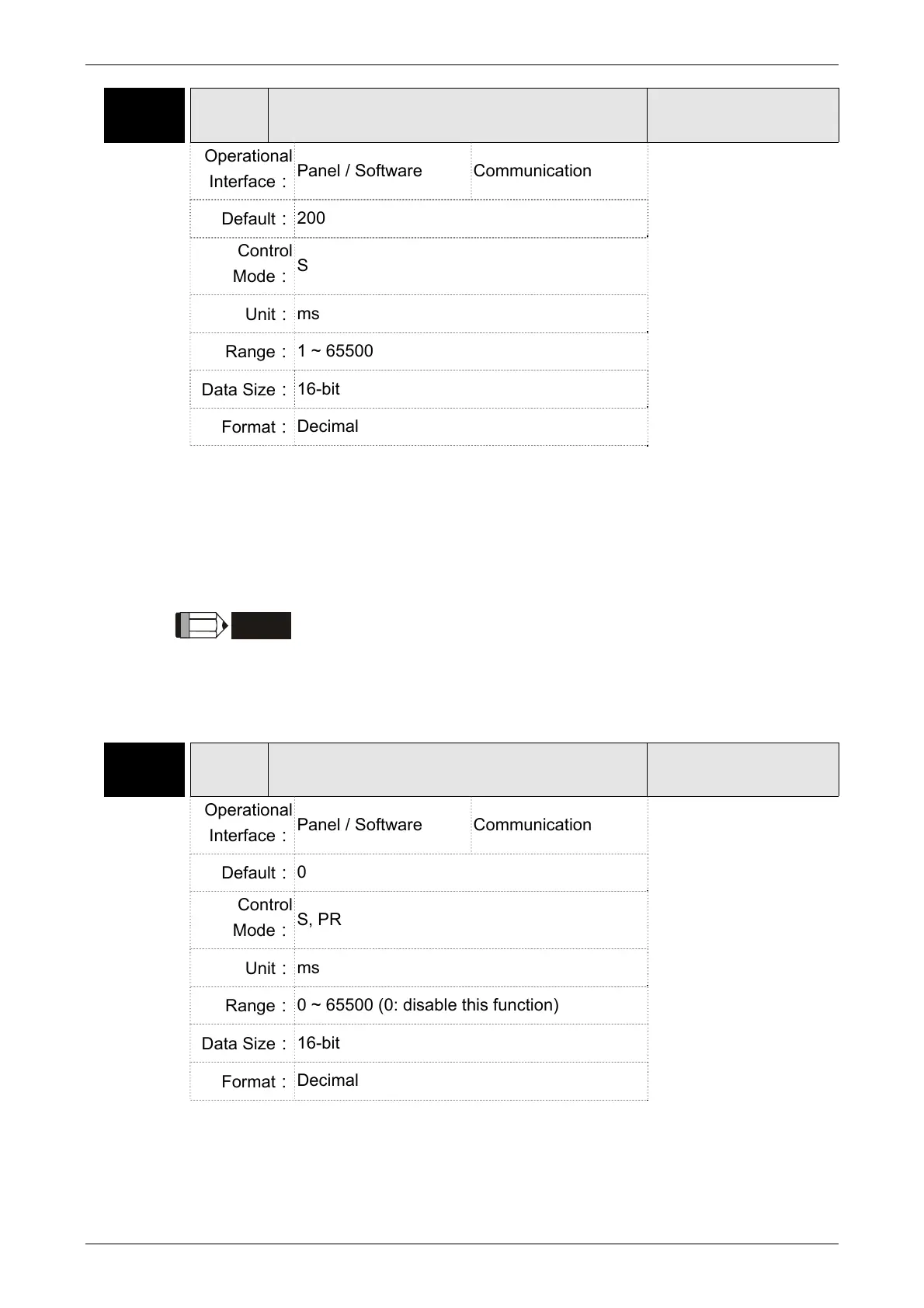

P1-35 TDEC Deceleration Constant of S-Curve
Address: 0146H
0147H
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.3
Default：
200
Control
Mode：
S
Unit：
ms
Range：
1 ~ 65500
Data Size：
16-bit
Format：
Decimal
Settings：
Deceleration Constant of Rotary Motor:
The time that speed command decelerates from the rated speed to 0.
Deceleration Constant of Linear Motor:
The time that speed command decelerates from 5m/s to 0.
P1-34, P1-35 and P1-36, the deceleration time of speed command
from the rated speed to zero, all can be set individually. Even when P1-
36 is set to 0, it still has acceleration / deceleration of trapezoid-curve.
NOTE
1）When the source of speed command is analog, and P1-36 is set to
0, it will disable S-curve function.
2）When the source of speed command is analog, the max. range of
P1-35 will be set within 20000 automatically.
P1-36 TSL
Acceleration / Deceleration Constant of S-
Curve
Address: 0148H
0149H
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.3
Default：
0
Control
Mode：
S, PR
Unit：
ms
Range：
0 ~ 65500 (0: disable this function)
Data Size：
16-bit
Format：
Decimal
