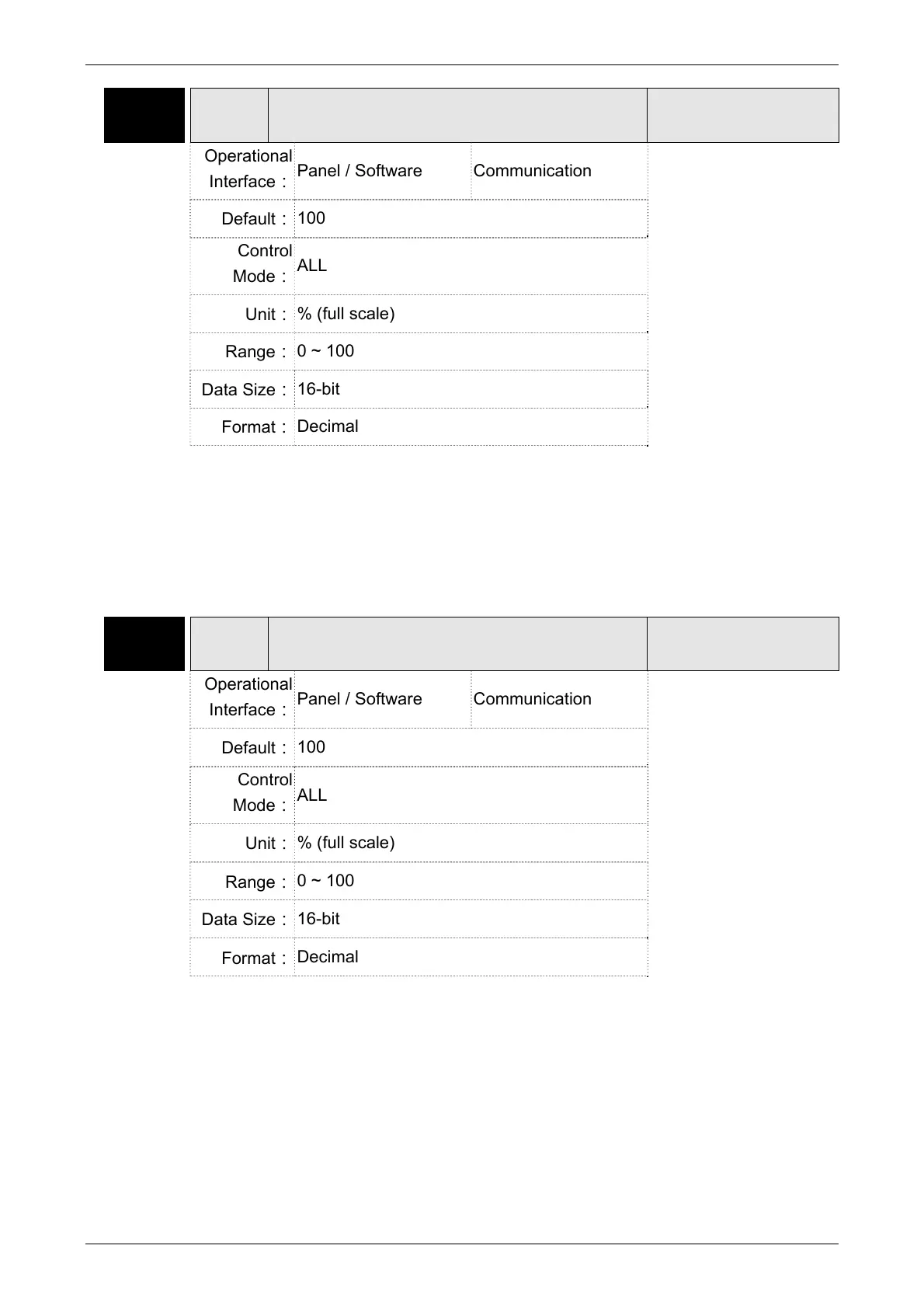

P1-04 MON1 MON1 Analog Monitor Output Proportion
Address: 0108H
0109H
Operational
Interface：
Panel / Software Communication
Related Section:
6.4.4
Default：
100
Control
Mode：
ALL
Unit：
% (full scale)
Range：
0 ~ 100
Data Size：
16-bit
Format：
Decimal
Settings：
Please refer to parameter P0-03 for the setting of analog output
selection.
For example:
P0-03 = 0x00 (MON1 is the speed analog output)
When the output voltage value of MON1 is V1:
Motor speed = (Max. speed × V1/8) × P1-04/100
P1-05 MON2 MON2 Analog Monitor Output Proportion
Address: 0108H
0109H
Operational
Interface：
Panel / Software Communication
Related Section:
6.4.4
Default：
100
Control
Mode：
ALL
Unit：
% (full scale)
Range：
0 ~ 100
Data Size：
16-bit
Format：
Decimal
Settings：
Please refer to parameter P0-03 for the setting of analog output
selection.
For example:
P0-03 = 0x00 (MON2 is the speed analog output)
When the output voltage value of MON2 is V2:
Motor speed = (Max. × V2/8) × P1-05/100
