ASDA-A2 Chapter 3 Wiring
Revision February, 2017 3-51

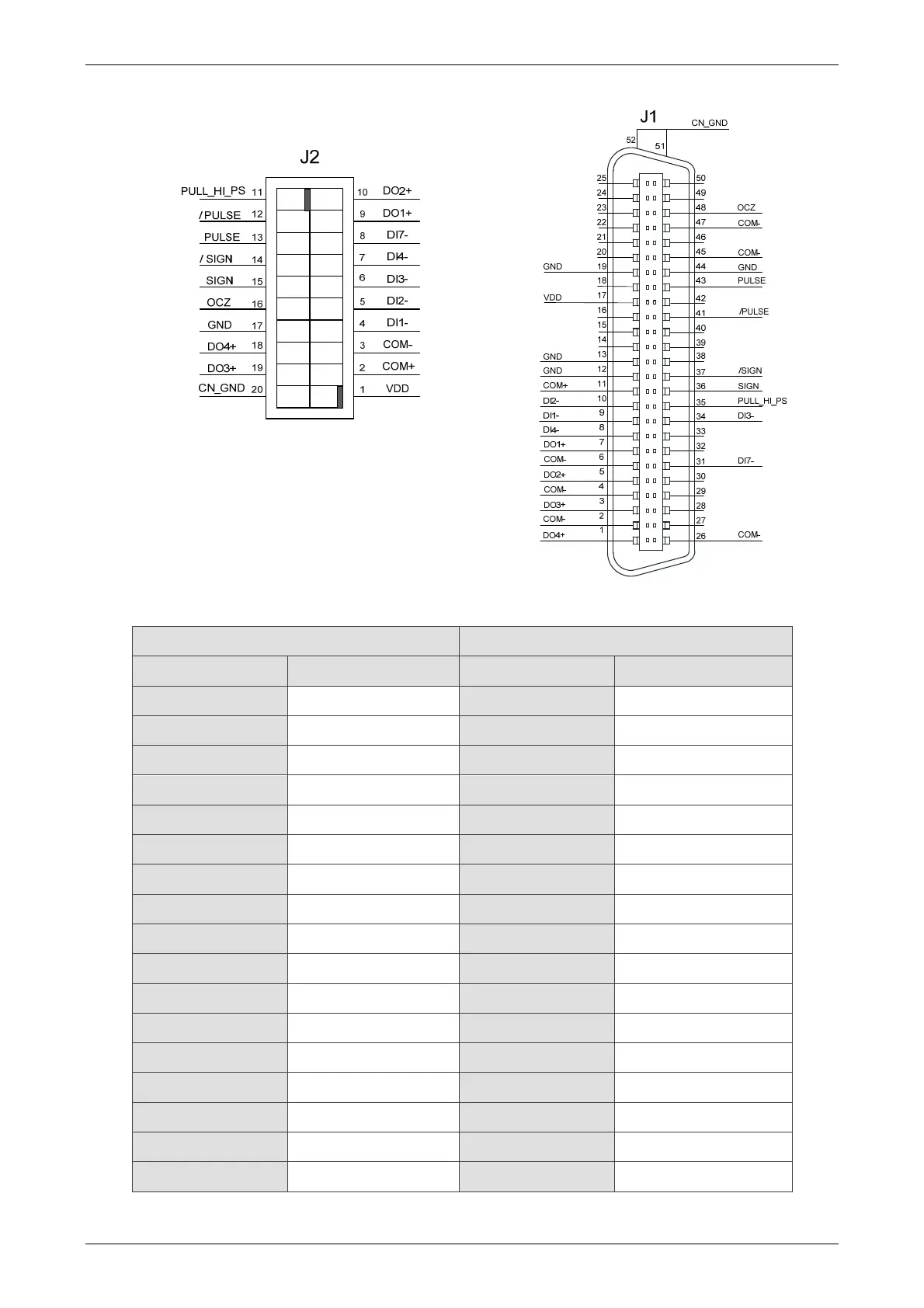

J2 J1
PIN Description PIN Description
1 VDD 17 VDD
2 COM+ 11 COM+
3 COM- 2,4,6,26,45,47 COM-
4 DI1- 9 DI1-
5 DI2- 10 DI2-
6 DI3- 34 DI3-
7 DI4- 8 DI4-
8 DI7- 31 DI7-
9 DO1+ 7 DO1+
10 DO2+ 5 DO2+
11 PULL_HI_PS 35 PULL_HI_PS
12 /PULSE 41 /PULSE
13 PULSE 43 PULSE
14 /SIGN 37 /SIGN
15 SIGN 36 SIGN
16 OCZ 48 OCZ
17 GND 12,13,19,44 GND
To Next Page
