Chapter 8 Parameters ASDA-M
8-70 Revision December, 2014

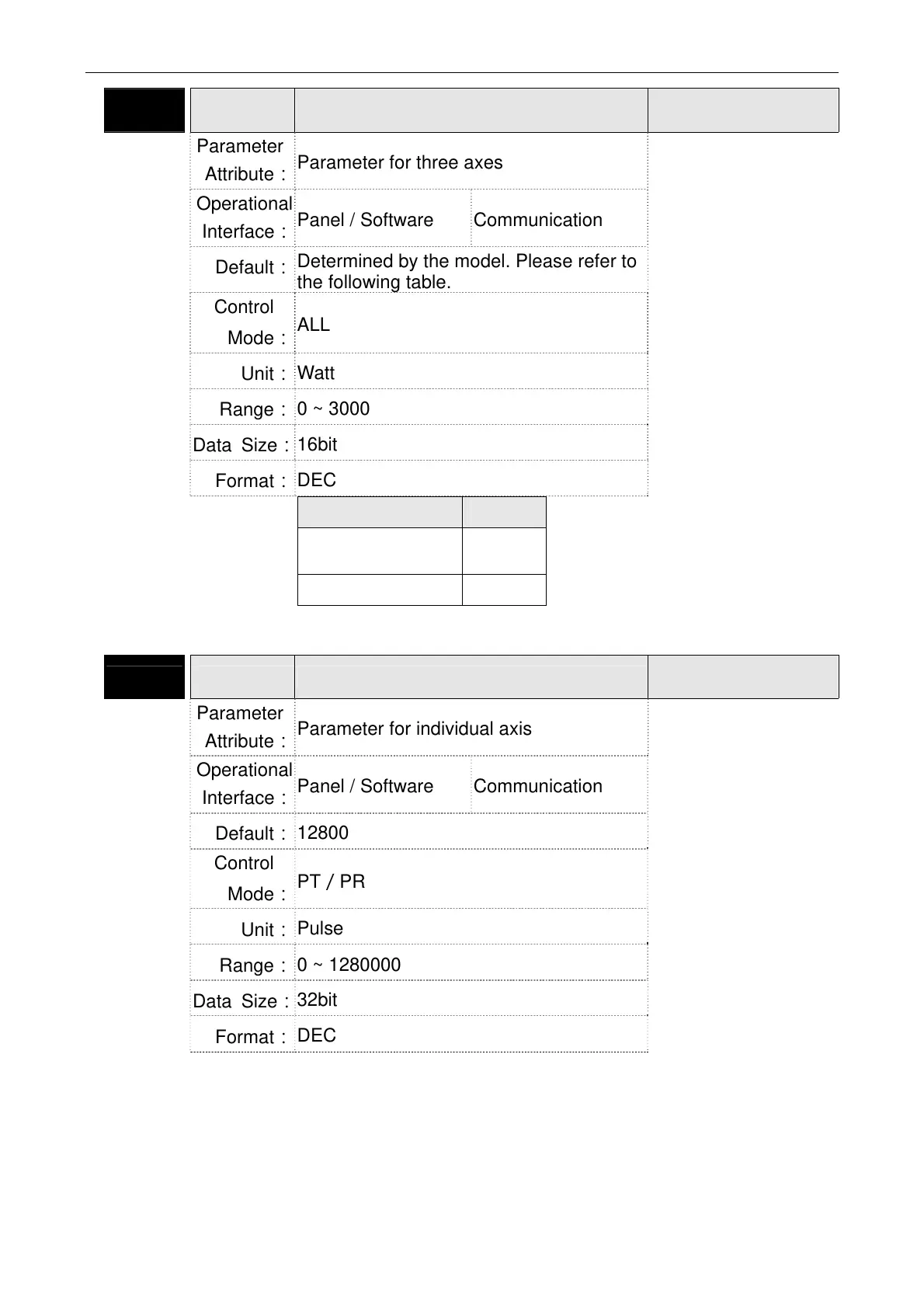

P1-53 RES2 Regenerative Resistor Capacity
Address: 016AH
016BH
Parameter
Attribute：
Parameter for three axes
Related Section:
Section 2.7
Operational
Interface：
Panel / Software Communication
Default：
Determined by the model. Please refer to
the following table.
Control
Mode：
ALL
Unit：
Watt
Range：
0 ~ 3000
Data Size：
16bit
Format：
DEC
Settings：
Model Default
1.5 kW (included)
or below
60 W
2 kW 100 W
P1-54 PER Position Completed Range
Address: 016CH
016DH
Parameter
Attribute：
Parameter for individual axis
Related Section:
Table 8.2
Operational
Interface：
Panel / Software Communication
Default：
12800
Control
Mode：
PT／PR
Unit：
Pulse
Range：
0 ~ 1280000
Data Size：
32bit
Format：
DEC
Settings：
In position mode (PT), if the deviation pulse number is smaller
than the setting range (the setting value of parameter P1-54),
DO.TPOS is ON.
In position register (PR) mode, if the deviation between the target
position and the actual motor position is smaller than the setting
range (the setting value of parameter P1-54), DO.TPOS is ON.
