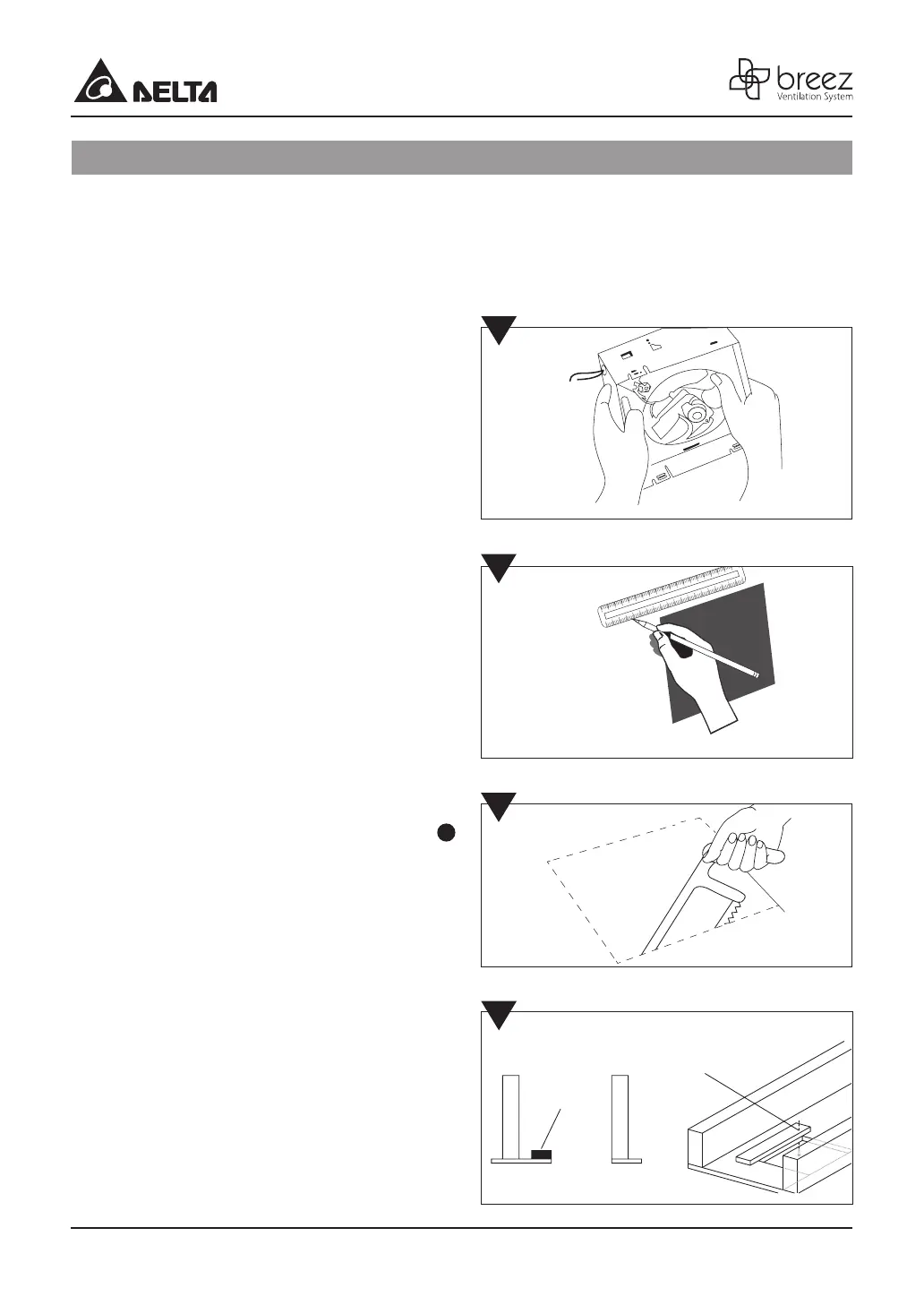

ASSEMBLY INSTRUCTIONS
EXISTING CONSTRUCTION
NOTE: ATTACHING DIRECTLY TO THE JOIST(S)
FROM BELOW WILL BE THE BEST INSTALLATION.
BEFORE INSTALLATION
Turn o power source. Review all safety precautions.
1. Remove existing fan.
2. Measure the opening to ensure it is large enough to
accommodate the new fan body
(10 1/4 in. x 10 1/4 in.).
3. If this fan is not replacing an old fan, be sure to cut
a 10 1/4 in. x 10 1/4 in. opening for the fan body
1
.
Install from below, no need for suspension
brackets (no attic access)
4. A piece of wood (not supplied) is screwed in from
below through the ceiling board. Suggested size is
1 in. x 3 in. x 14 in. Position the screws far enough
away from the edge of the ceiling board that it does
not crumble and give way. Put screws in both ends
of wood beyond the 10 1/4 in. hole. Keep screws in
range of grille.
2
3
10 1/4 in.
10 1/4 in.
1
Wood support
Wood support screwed in from
underneath. Screw is far enough away
from the edge of sheetrock to prevent
crumblimg.
4
