Delta DVP-SS2 User Manual

3. Instruction Set
3-97
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
30 D ROR P
Rotation Right
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
ROR, RORP: 5 steps
DROR, DRORP: 9 steps
D
*
*
*
*
*
*
*
*
n
*
*
PULSE
16-bit
32-bit
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
Operands:
D: Device to be rotated n: Number of bits to be rotated in 1 rotation
Explanations:
1. This instruction rotates bit status of the device D to the right for n bits
2. The status of the last bit rotated (marked with ※) is copied to the carry flag M1022 (Carry flag)
3. This instruction is generally used in pulse execution mode (RORP, DRORP).
4. If operand D uses index F, only a 16-bit instruction is available.
5. If operand D is specified as KnY, KnM or KnS, only K4 (16-bit) or K8 (32-bit) is valid.
6. Valid range of operand n: 1≤ n ≤16 (16-bit), 1≤ n ≤32 (32-bit)
Program Example:

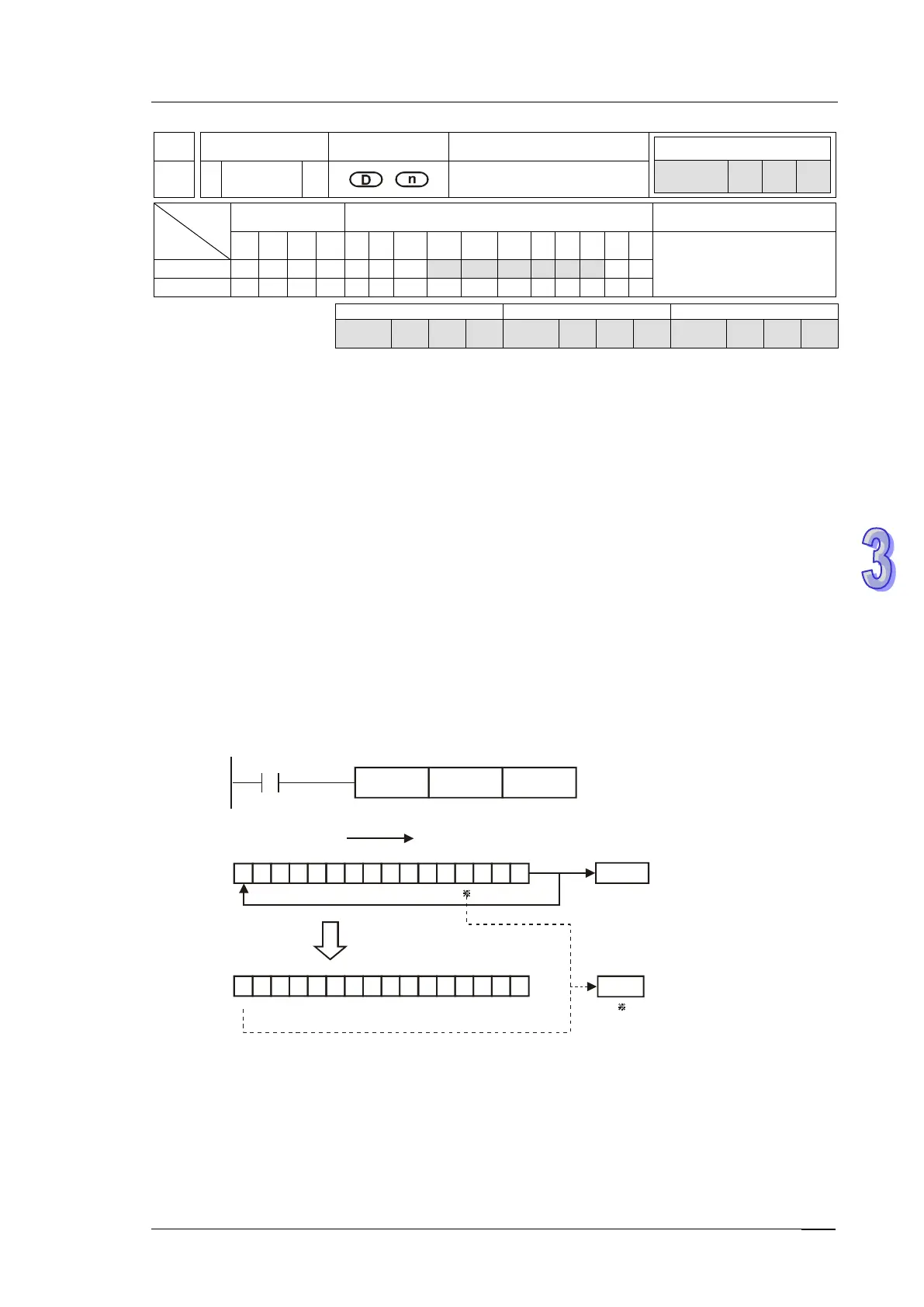

When X0 goes from OFF to ON, the 16 bits (4 bits as a group) in D10 will rotate to the right, as
shown in the figure below. The bit marked with ※ will be sent to carry flag M1022..
0 1 1 1 0 1 0 1 0 0 11 1 0 0 1
0 1 0 1 1 1 0 0 111 1 00 1 0
0
Upper bit Lower bit
Upper bit lower bit
*
X0
RORP
D10
K4
Rotate to the right
16 bits
Carry
flag
Carry
flag
After one rotation
to the right
D10
D10
M1022M1022
M1022
