DVP-ES2/EX2/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-100
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
33 D RCL P
Rotation Left with Carry
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
RCL, RCLP: 5 steps
DRCL, DRCLP: 9 steps
D
*
*
*
*
*
*
*
*
n
*
*
PULSE
16-bit
32-bit
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
Operands:
D: Device to be rotated n: Number of bits to be rotated in 1 rotation
Explanations:
1. This instruction rotates bit status of the device D together with M1022 to the left for n bits.
2. The status of the last bit rotated (marked with ※) is moved to the carry flag M1022.
3. This instruction is generally used in pulse execution mode (RCLP, DRCLP).
4. If operand D uses index F, only a 16-bit instruction is available.
5. If operand D is specified as KnY, KnM or KnS, only K4 (16-bit) or K8 (32-bit) is valid.
6. Valid range of operand n: 1≤ n ≤16 (16-bit), 1≤ n ≤32 (32-bit)
Program Example:

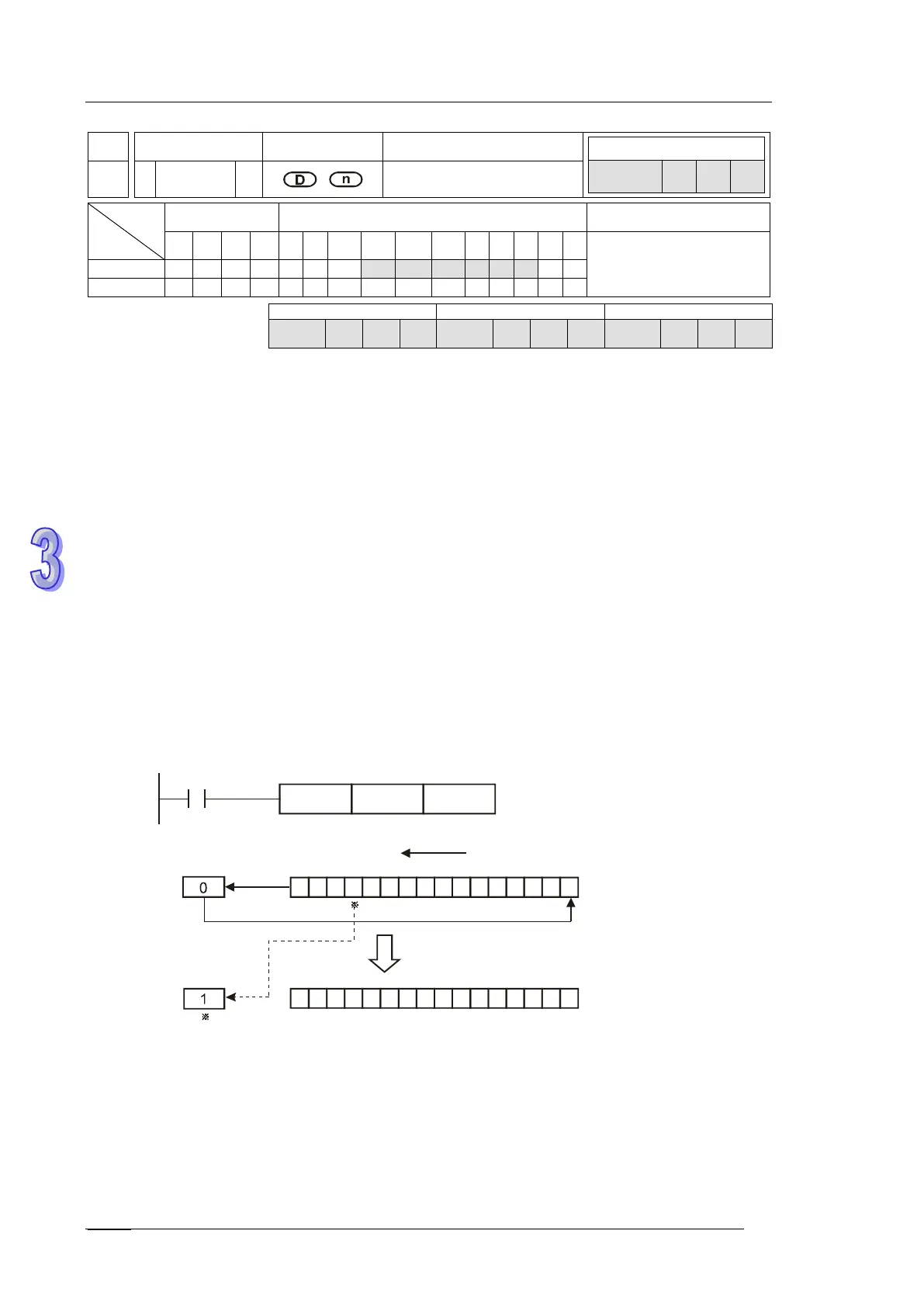

When X0 goes from OFF to ON, the 16 bits (4 bits as a group) in D10 together with carry flag
M1022 (total 17 bits) will rotate to the left, as shown in the figure below. The bit marked with ※ will
be sent to carry flag M1022.
X0
D10 K4
1 1 1 1 1 1 0 0 0 0 01 1 0 0 0
1 1 0 0 0 0 0 100 0
0 11 1 1
16 bits
Rotate to the left
After one rotation
to the left
Carry
flag
Carry
flag
Upper bit
Lower bit
Upper bit
Lower bit
D10
D10
RCLP
M1022
M1022
