Delta DVP-SS2 User Manual

DVP-ES2/EX2/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-102
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
35 SFTL P
Bit Shift Left
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
SFTL, SFTLP: 9 steps
S
*
*
*
*
D
*
*
*
n
1
*
*
n
2
*
*
PULSE
16-bit
32-bit
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
Operands:
S: Start No. of source device D: Start No. of destination device n
1
: Length of data to be
shifted n
2
: Number of bits to be shifted as a group
Explanations:
1. This instruction performs a left shift from source device of n
2
bits starting from S to destination
device of n
1
bits starting from D
2. This instruction is generally used in pulse execution mode (SFTLP).
3. Valid range of operand n1, n2 : 1≤ n2 ≤ n1 ≤1024

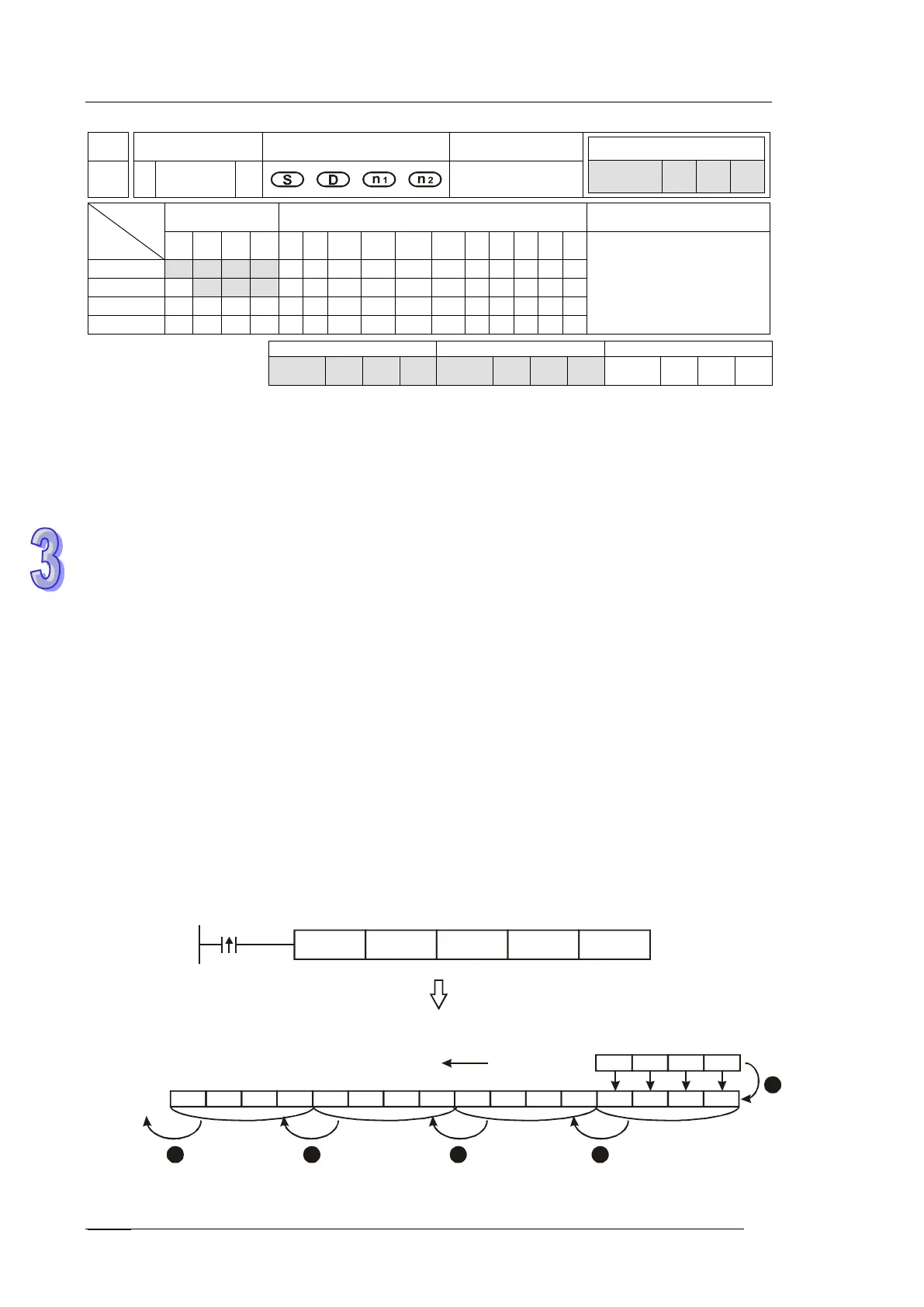

Program Example:
1. When X0 is rising edge triggered, SFTL instruction shifts X0~X4 into 16-bit data M0~M15 and
M0~M15 also shift to the left with a group of 4 bits.
2. The figure below illustrates the left shift of the bits in one scan
 M15~M12 → Carry
 M11~M8 → M15~M12
 M7~M4 → M11~M8
 M3~M0 → M7~M4
 X3~X0 → M3~M0 completed
X0
SFTR X0 M0 K16 K4
X3 X2 X1 X0
M15 M14 M13 M12 M11 M10 M9 M8 M7 M6 M5 M4 M3 M2 M1 M0
1 2 3 4
5
4 bits in a group shift to the left
Carry
