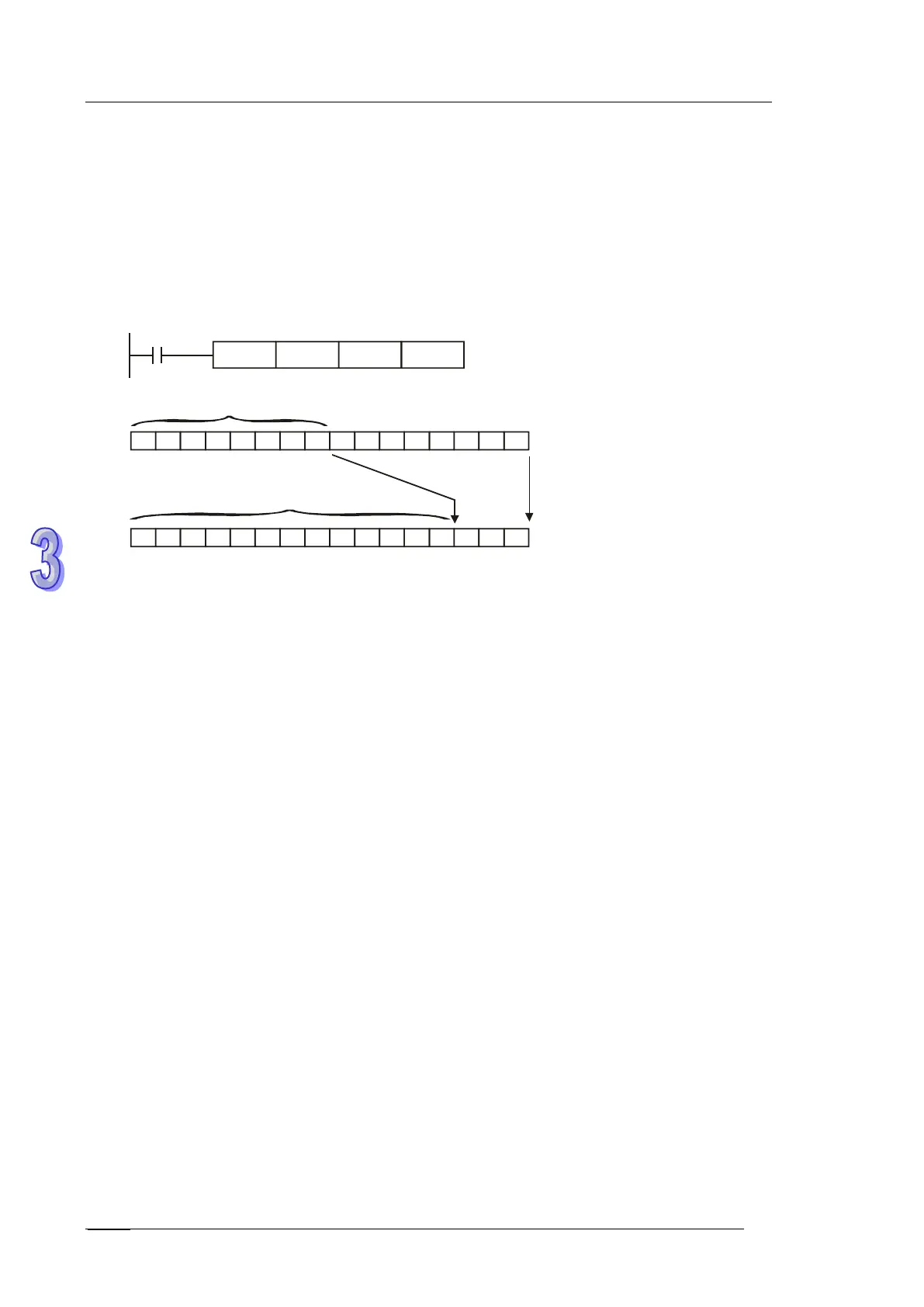

Program Example 2:
1. When S is used as a word device, n = 1 ~ 4. Errors will occur if n = 0 or n > 4.
2. When n = 4, the decoded data is 2
4
= 16 bits data.
3. When X0 goes from OFF to ON, the 2
3
bits (b0 ~ b7) in D10 will be encoded and the result will
be stored in the lower 3 bits of D20 (b2 to b0). The unused bits in D20 (b15 to b3) will be set
to 0.
4. After the execution is completed, X0 is turned OFF and the data in D remains unchanged
ENCOP D10 K3D2
0
X0
0 0 0 0 0 0 0 0 0 0 0 0 100
b1
5
b0
D20
1
6 5 4 3
2
1
0
0 0 0 0 0 0 0 0 1 01 0 0111
b15
b0
7
D10
all be 0
Invalid data

Delta DVP-SS2 Specifications

General

Type	PLC (Programmable Logic Controller)
Input Voltage	24 VDC
Number of Inputs	8
Number of Outputs	6
Programming Software	WPLSoft
Model/Series	DVP-SS2
Communication Ports	RS-232
Output Type	Relay
High-speed Counters	2 points, 10 kHz
Operating Temperature	0°C to 55°C
Humidity	5% to 95% RH, non-condensing
Dimensions	90 mm (H) x 60 mm (W) x 80 mm (D)
