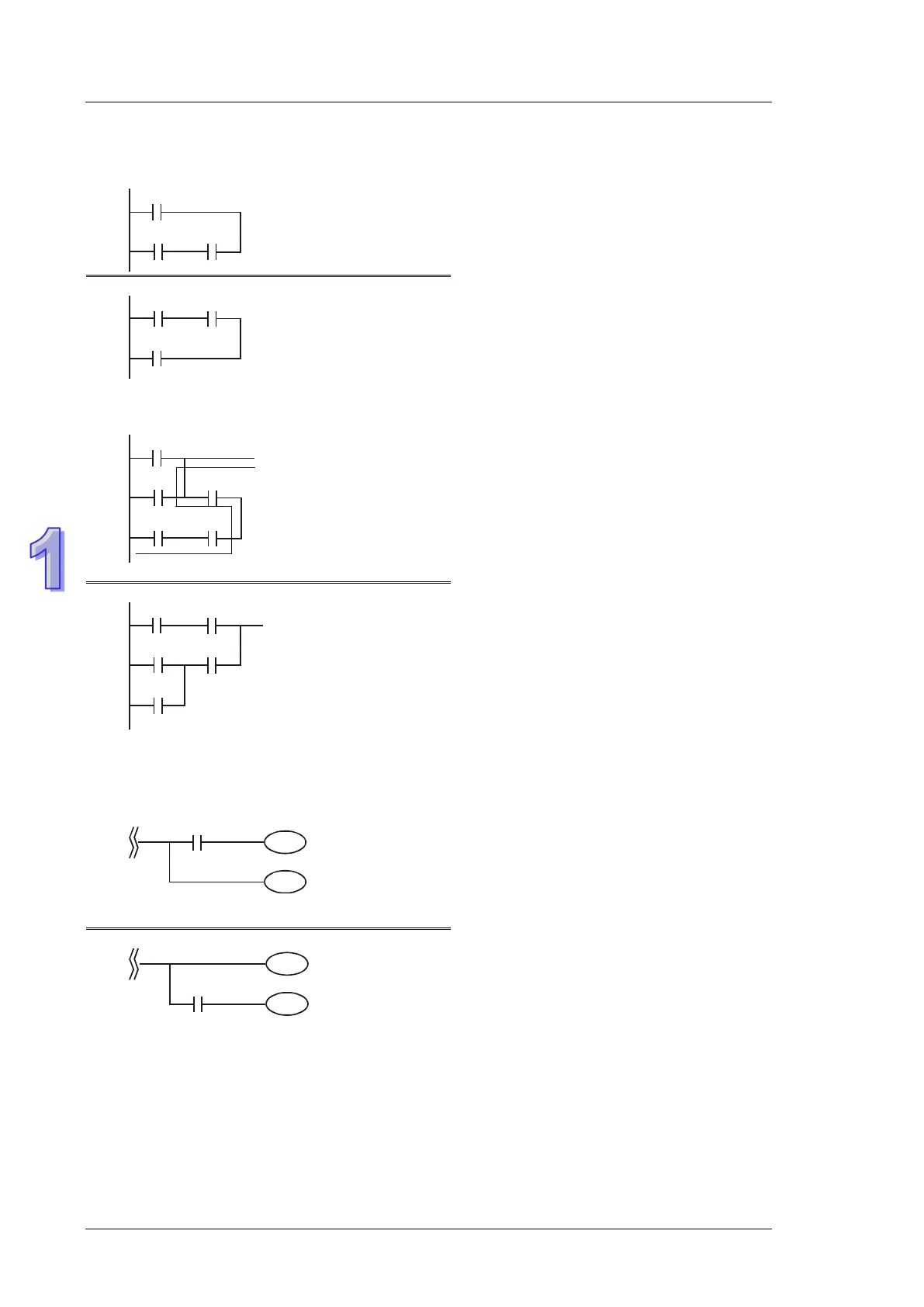

Example 2:
When a device is to be connected to a block, connect the device to upper row for omitting ORB
instruction
T0
X1
X2
Instruction List
LD
T0
LD
X1
AND
X2
ORB

T0
X1
X2
Instruction List
LD
X1
AND
X2
OR T0
Example 3:
“Reverse current” existed in diagram (a) is not allowed for PLC processing principle.
X0
X1
X2
X3
X4
(a)
Instruction List
LD
X0
OR
X1
AND
X2
LD
X3
AND
X4
ORB

X0
X1
X2
X3
X4
(b)
Instruction List
LD
X3
AND
X4
LD
X1
OR
X0
AND
X2
ORB
Example 4:
For multiple outputs, connect the output without additional input devices to the top of the circuit for
omitting MPS and MPP instructions.
X0
Y1
Y0
Instruction List
MPS
AND
X0
OUT
Y1
MPP
OUT
Y0

Y0
Y1
X0
Instruction List
OUT
Y0
AND
X0
OUT
Y1
