D1235: Output pulse number for ramp-down stop when Y2 mark sensor receives signals
(High word).
D1348: M
1534 = ON, D1348 stores the ramp-down time of CH0(Y0, Y1) pulse output.
D1349: M1535 = ON, D1349 stores the ramp-down time of CH1(Y2, Y3) pulse output.
D1340 Start/end frequency of the pulse output CH0 (Y0, Y1)
D1352 Start/end frequency of the pulse output CH1 (Y2, Y3)

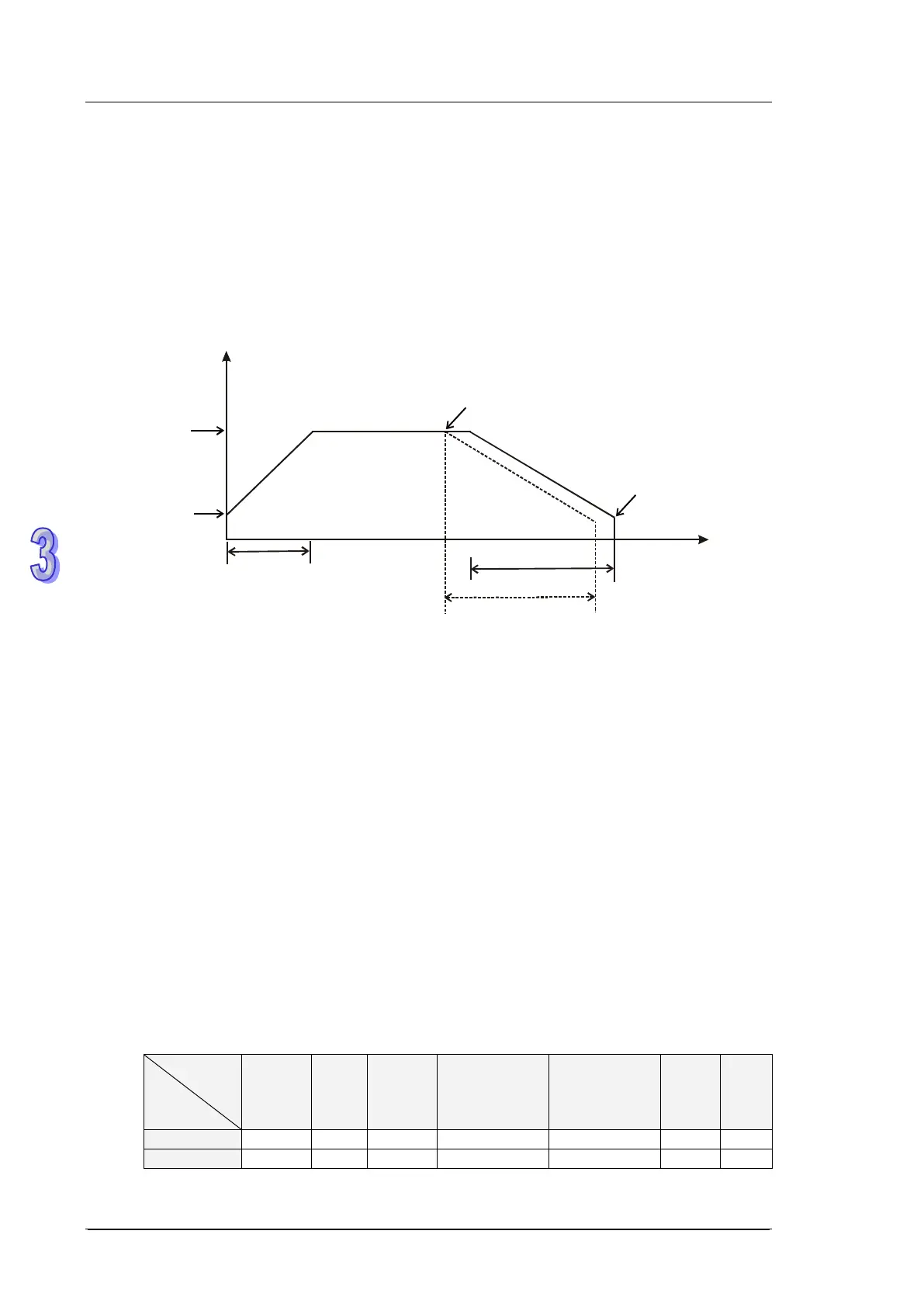

3. Operation of Mark function on Y0:
Frequency
Start/end
freuquency
D1340
Target
speed
X4 external interrupt
Pulse number if no
external interrupt on X4
Pulse
number
Time
DD1232
D1348
Ramp-down stop pulse
number when Mark
is detected
Ramp-up
time
Ramp-down time
When M1156/M1158 = ON, enable ramp-down pause (Mark function) on Y0/Y2 when
X4/X6 receives interrupt signals.
When Mark function is enabled, ramp down time is independent of the ramp up time. Users
can set ramp up time in S
3
and ramp down time in D1348/D1349. (Range: 20ms~32767ms)
When Mark function is executed and the ramp-down stop pulses (DD1232/DD1234) are
specified, PLC will execute ramp-down stop with specified pulses after Mark is detected.
However, if DD1232/DD1234 are less than the specified ramp-down time (D1348 / D1349),
PLC will fill DD1232/DD1234 with the value of ramp-down time. In addition, if
DD1232/DD1234 is more than the half of total output pulses, PLC will modify
DD1232/DD1234 to be less than half of the total output pulses.
Ramp-down stop pulses (DD1232/DD1234) are 32-bit value. Set value K0 will disable the
Mark function.
Y0,Y2 relative parameters for Mask and Alignment Mark function:
Output
Mark flag
Input
points
Ramp
down
time
Pulse number
for masking
output
for ramp-down
of Mark
pause
(ramp
status
