Delta DVP-SS2 User Manual

3. Instruction Set
3-277

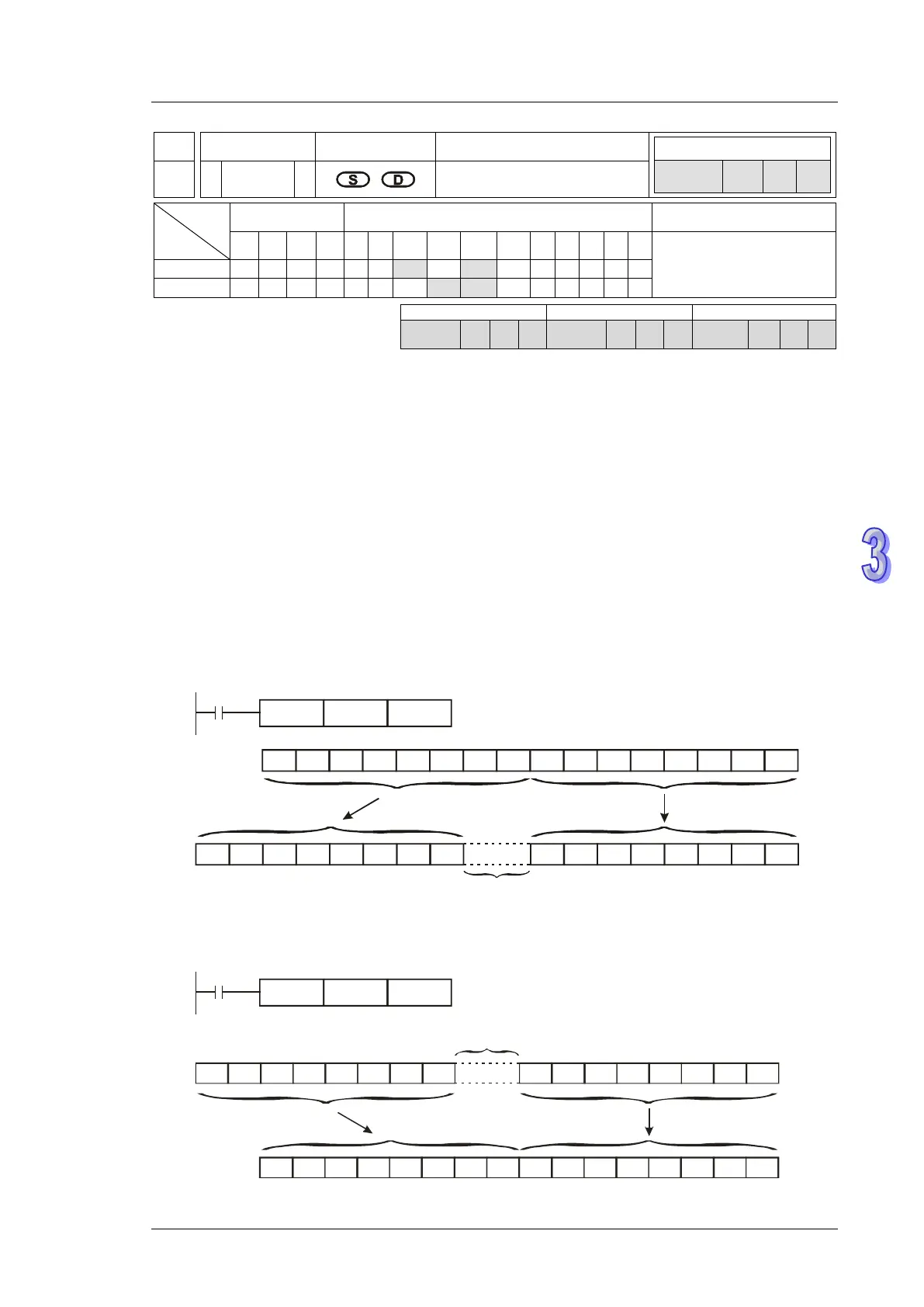

API Mnemonic Operands Function
Controllers
ES2/EX2
SS2
SA2
SE
SX2
81 D PRUN P
Parallel Run
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
PRUN, PRUNP: 5 steps
DPRUN, DPRUNP: 9
steps
S
*
*
D
*
*
PULSE
16-bit
32-bit
ES2/EX2 SS2
SA2
SE
SX2 ES2/EX2 SS2
SA2
SE
SX2 ES2/EX2 SS2
SA2
SE
SX2
Operands:
S: Source device D: Destination device
Explanations:
1. This instruction sends the content in S to D in the form of octal system
2. The start device of X, Y, M in KnX, KnY, KnM format should be a multiple of 10, e.g. X20, M20,
Y20.
3. When operand S is specified as KnX, operand D should be specified as KnM.
4. When operand S is specified as KnM, operand D should be specified as KnY.
Program Example 1:
When X3 = ON, the contents of K4X20 will be sent to K4M10 in octal form.
X3
PRUN K4X20 K4M10
X37
M27
X36 X35 X34 X33 X32 X31 X30 X27 X26 X25 X24 X23 X22 X21 X20
M17 M16 M15 M14 M13 M12 M11 M10
M26 M25M24 M23 M22 M21 M20 M19M18
No change
Program Example 2:
When X2 = ON, the content in K4M10 will be sent to K4Y10 in octal form.
X2
PRUN K4M10 K4Y10
Y27
M27
Y26 Y25
Y24
Y23
Y22 Y21
Y20
Y17
Y16 Y15
Y14
Y13
Y12 Y11
Y10
M17
M16 M15
M14
M13
M12 M11
M10M26 M25
M24
M23
M22 M21
M20
M19 M18
These two devices will not be transmitted
