DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-328
Program Example 3:
1. In the communication between PLC and VFD-B series AC motor drive (ASCII Mode, M1143 =
OFF), executes Retry when communication time-out, data receiving error or parameter error
occurs.
2. When X0 = ON, PLC will read the data of address H2100 in device 01(VFD-B) and stores the
data in ASCII format in D1070 ~ D1085. PLC will automatically convert the data and store them
in D1050 ~ D1055.
3. M1129 will be ON when communication time-out occurs. The program will trigger M1129 and
send request for reading the data again.
4. M1140 will be ON when data receiving error occurs. The program will trigger M1140 and send
request for reading the data again.
5. M1141 will be ON when parameter error occurs. The program will trigger M1141 and send
request for reading the data again.

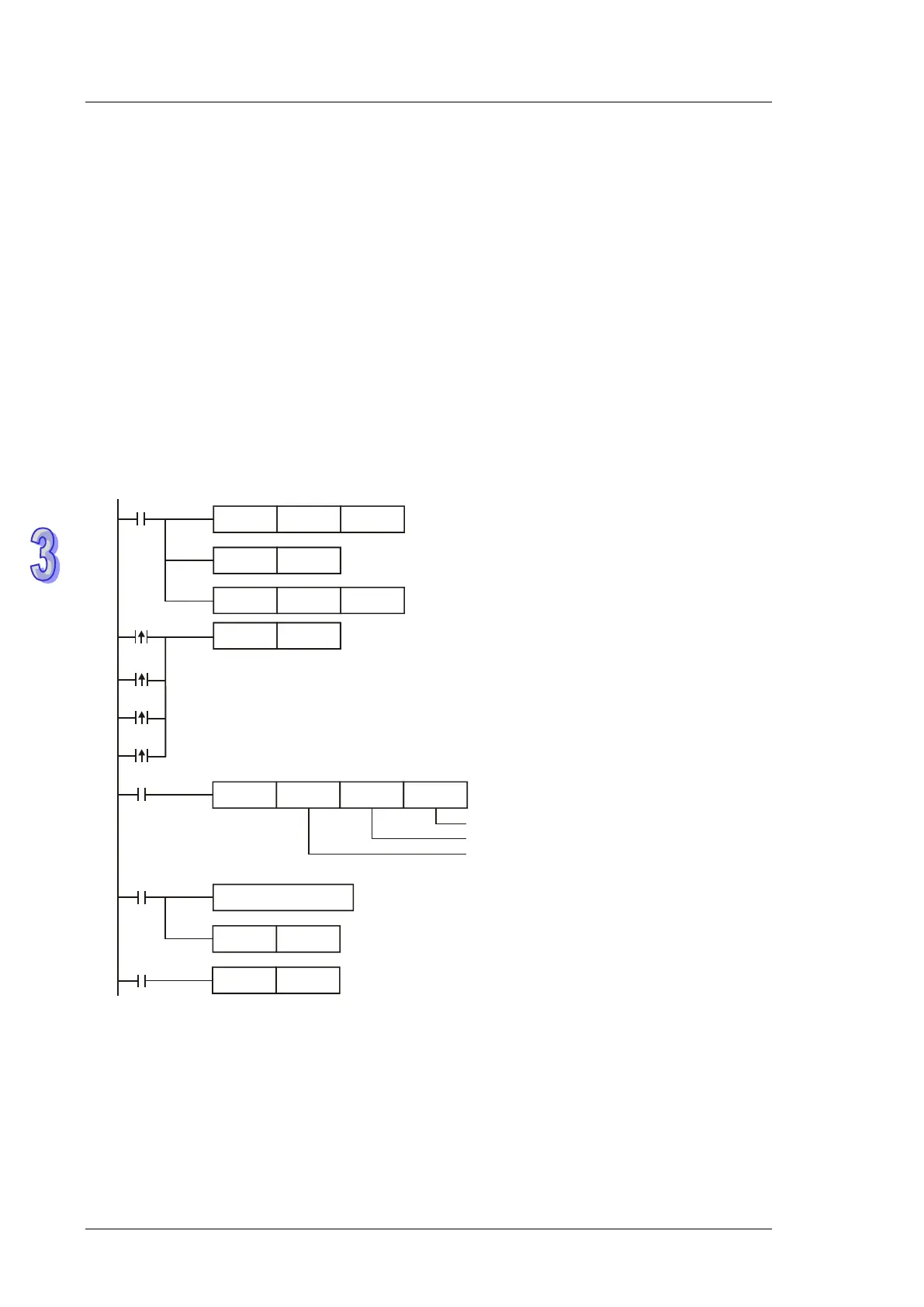

M1002
MOV H87 D1120
SET M1120
RST M1127
M1127
RST M1129
Set communication protocol as 9600, 8, E, 1
Retain communication protocol
Set communication time-out as 100ms
MODRD K1 H2100 K 6
X0
Set communication instruction:
Data address:
Data length: 6 words
H2100
Device address: 01
X0
M1129
M1140
M1141
Sending request
Retry when communication time-out occurs
Retry when data receiving error occurs
Retry when parameter error occurs
Receiving completed
Handle received data
The received ASCII data is stored in D1070-D1085
and PLC converts the data and store them into
D1050-D1055 automatically.
Reset M1127
Reset M1129 (receiving timeout)
MOV K100 D1129
SET M1122
M1129
