DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-418
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2

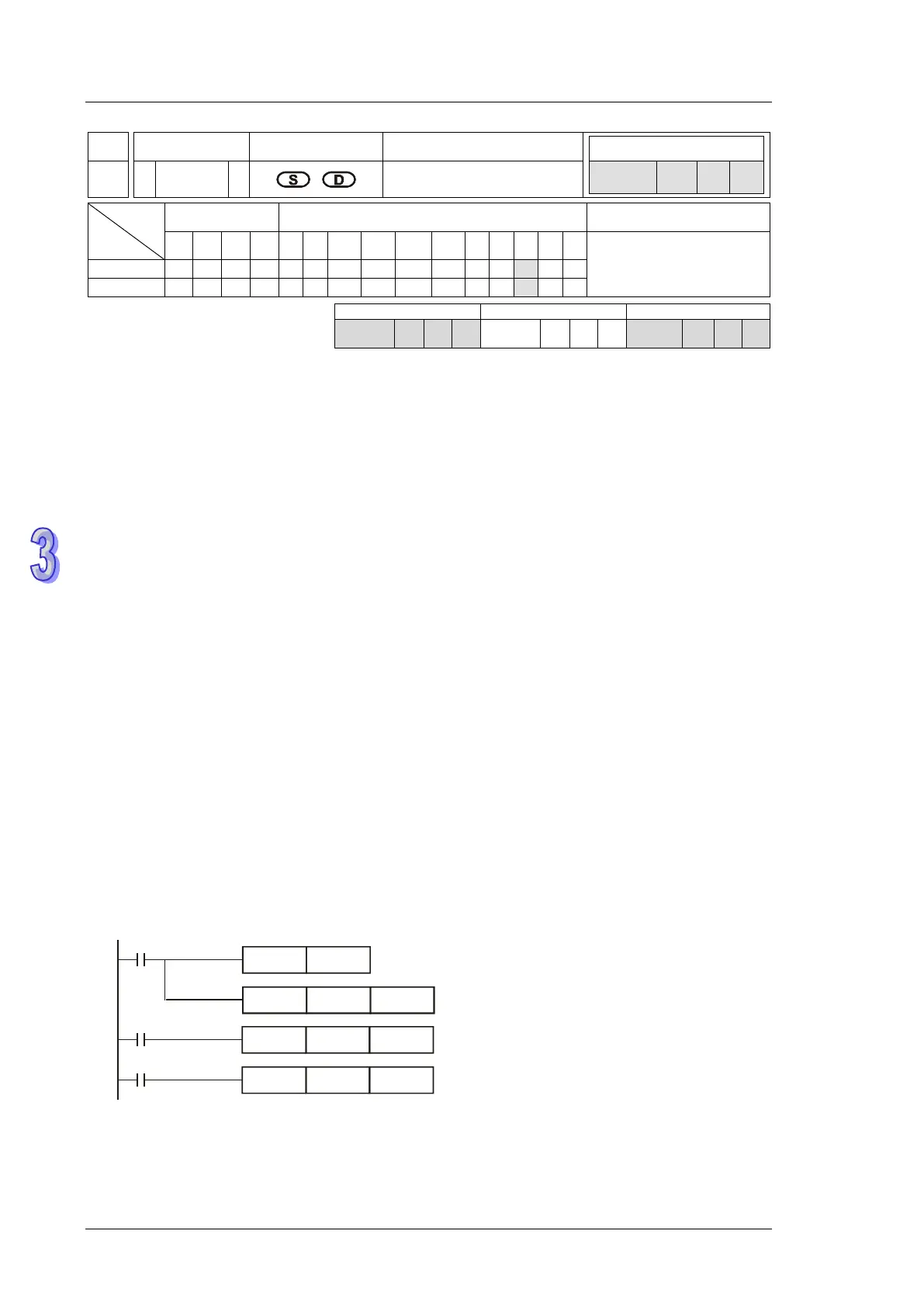

124 D EXP P Float exponent operation
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
DEXP, DEXPP: 9 steps
S
*
*
*
D
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: Exponent D: Operation result
Explanations:
1. The base is e = 2.71828 and exponent is S
2. EXP
[ S +1, S ] = [ D +1, D ]
3. Both positive and negative values are valid for S. Register D has to be 32-bit format. Operation
is conducted in floating point value, so the value in S needs to be converted into floating value
before exponent operation.
4. The content in D: e
S
, e =2.71828 and S is the specified exponent..
5. Flags: M1020 (Zero flag), M1021 (Borrow flag) and M1022 (Carry flag).
If absolute value of the result is larger than max. floating value, carry flag M1022 = ON.
If absolute value of the result is smaller than min. floating value, borrow flag M1021 = ON.
If the conversion result is 0, zero flag M1020 = ON.
Program Example:
1. When M0 = ON, convert (D1, D0) to binary floating value and save the result in (D11, D10).
2. When M1= ON, perform exponent operation with (D11, D10) as the exponent. The value is
saved in register (D21, D20) in binary floating format.
3. When M2 = ON, convert the value in (D21, D20) into decimal floating point value and save the
result in (D31, D30). (At this time, D31 indicates powers of 10 for D30)
M0
RST M1081
M1
DEXP D10 D20
M2
DEBCD D20 D30
DFLT D0 D10
