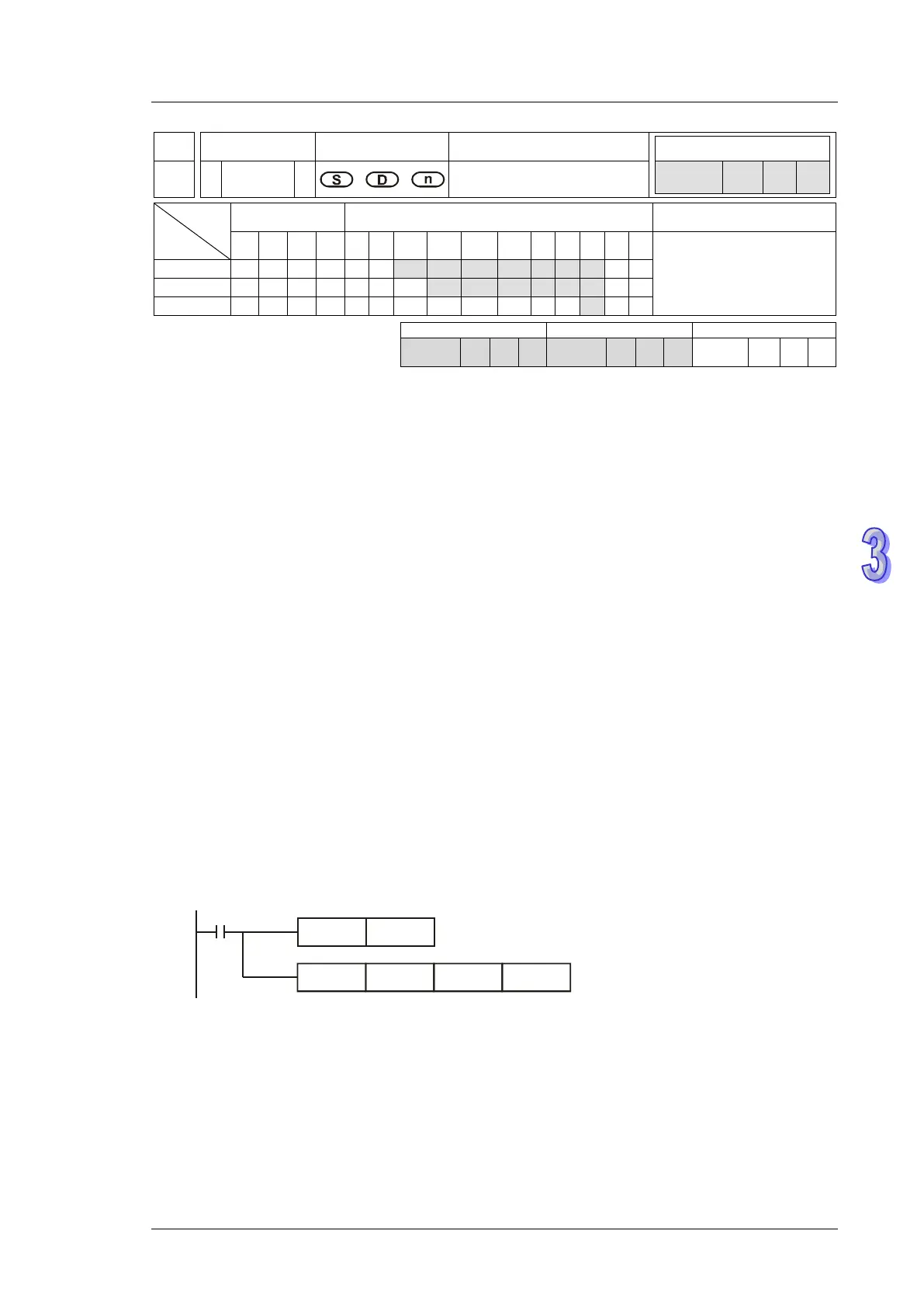

Delta DVP-SS2 User Manual

3. Instruction Set
3-553
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
189 MBR P Matrix bit rotate
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
MBR, MBRP: 7 steps
S
*
*
*
*
*
*
*
D
*
*
*
*
*
*
n
*
*
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: Matrix source device D: Operation result n: Matrix length (K1~K256)
Explanations:
1. MBR instruction rotates the bits in the matrix to the left or the right. M1097 = OFF, bits rotate to
the left, M1097 = ON, bits rotate to the right. The empty bit (left rotate: b0; right rotate: b16n-1)
after rotation performed once will be filled with the bit which is rotated out of the matrix (left
rotate: b16n-1; right rotate: b0) and the operation result is stored in D. In addition, the bit which
is rotated out of the matrix will also be moved to M1095 (Carry flag for matrix operation).
2. The pulse execution instruction MBRP is generally adopted.
3. If operands S or D use KnX, KnY, KnM, KnS format, only n = 4 is applicable.
4. Associated flags:
M1095: Carry flag for matrix rotation/shift/output.
M1097: Direction flag for matrix rotation/shift
Program Example 1:
When X0 = ON, M1097 = OFF, indicating a left matrix rotation is performed. The 16-bit registers
D0 ~ D2 will perform a left matrix rotation and the result will be stored in the matrix of the 16-bit
registers D20 ~ D22. The matrix carry flag M1095 will be ON (1)
X0
MBRP D0 D20 K3
RST
M1097
