DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
Note:

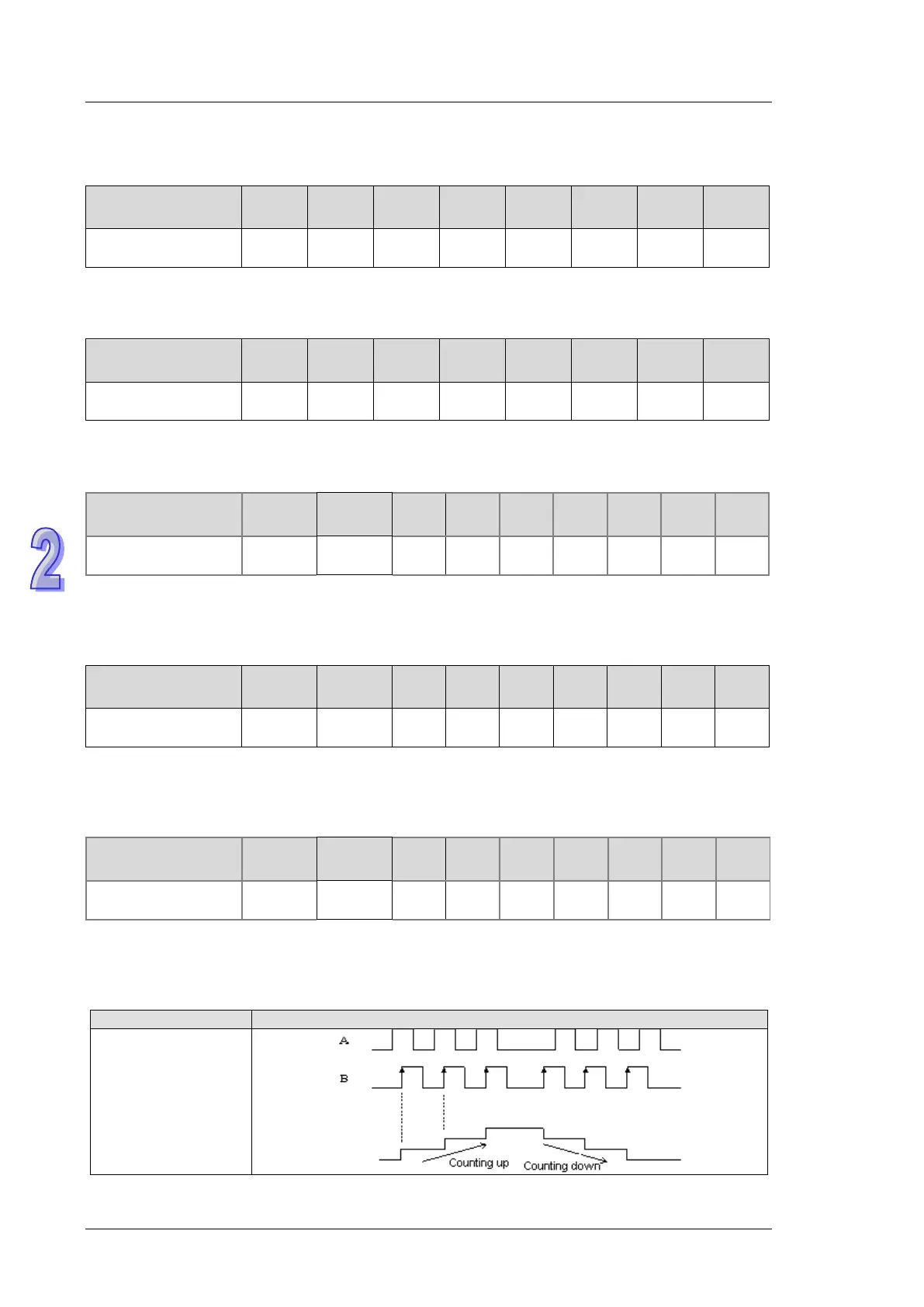

1. Refer to the following table for the maximum frequency of the 1-phase input counters X0 (C243)
and X2 (C244).
2. Refer to the following table for the maximum frequency of the 1-phase 2-input counters (X0, X1)
(C245, C246) and (X2, X3) (C249, C250).
* 12SE with firmware V2.xx and 26SE with firmware V1.xx support C249 and C250.
3. Refer to the following table for the maximum frequency of the 1-phase 2-input counters (X0, X1)
(C247, C248).
* The maximum frequency of the 1-phase 2-input counters (X0, X1) (C247, C248) is 100 kHz for
ES2 series manufactured after year 2013.
4. Refer to the following table for the maximum frequency of the 2-phase 2-input counter (X0, X1)
(C251, C252).
*The maximum frequency of the 2-phase 2-input counter (X0, X1) (C251, C252) is 50 kHz for ES2
series manufactured after year 2013.
5. Refer to the following table for the maximum frequency of the 2-phase 2-input counter (X2, X3)
(C253, C254).
* The maximum frequency of the 2-phase 2-input counter (X2, X3) (C253, C254) is 50 kHz for ES2
series manufactured after year 2013.
6. 2-phase 2-input counting supports double and 4 times frequency, which is selected in D1022
as the table in next page. Please refer to the below table for detailed counting wave form.
K1
Model
Series
EC5 12SA2 SX2 SS2 12SE 26SE 28SA2
Maximum frequency
of the counter (Hz)
100K 50K 100K 100K 20K 100K 100K 100K
Model
Series
EC5 12SA2 SX2 SS2 12SE* 26SE* 28SA2
Maximum frequency
of the counter (Hz)
100K 50K 100K 100K 20K 100K 100K 100K
Model
ES2
32ES211T
EC5 12SA2
SX2 SS2 12SE 26SE 28SA2
Maximum frequency
of the counter (Hz)
100K 50K 100K 100K 20K 100K 100K 100K
Model
Series
32ES211T
EC5 12SA2
SX2 SS2 12SE 26SE 28SA2
Maximum frequency
of the counter (Hz)
5K / 50K* 50K 25K 50K 10K 10K 50K 50K 50K
Model
ES2
Series
32ES211T
EC5 12SA2
SX2 SS2 12SE 26SE 28SA2
Maximum frequency
of the counter (Hz)
5K / 50K* 50K 25K 50K 10K 10K 50K 50K 50K
