Delta DVP-SS2

5. Sequential Function Chart
5-15

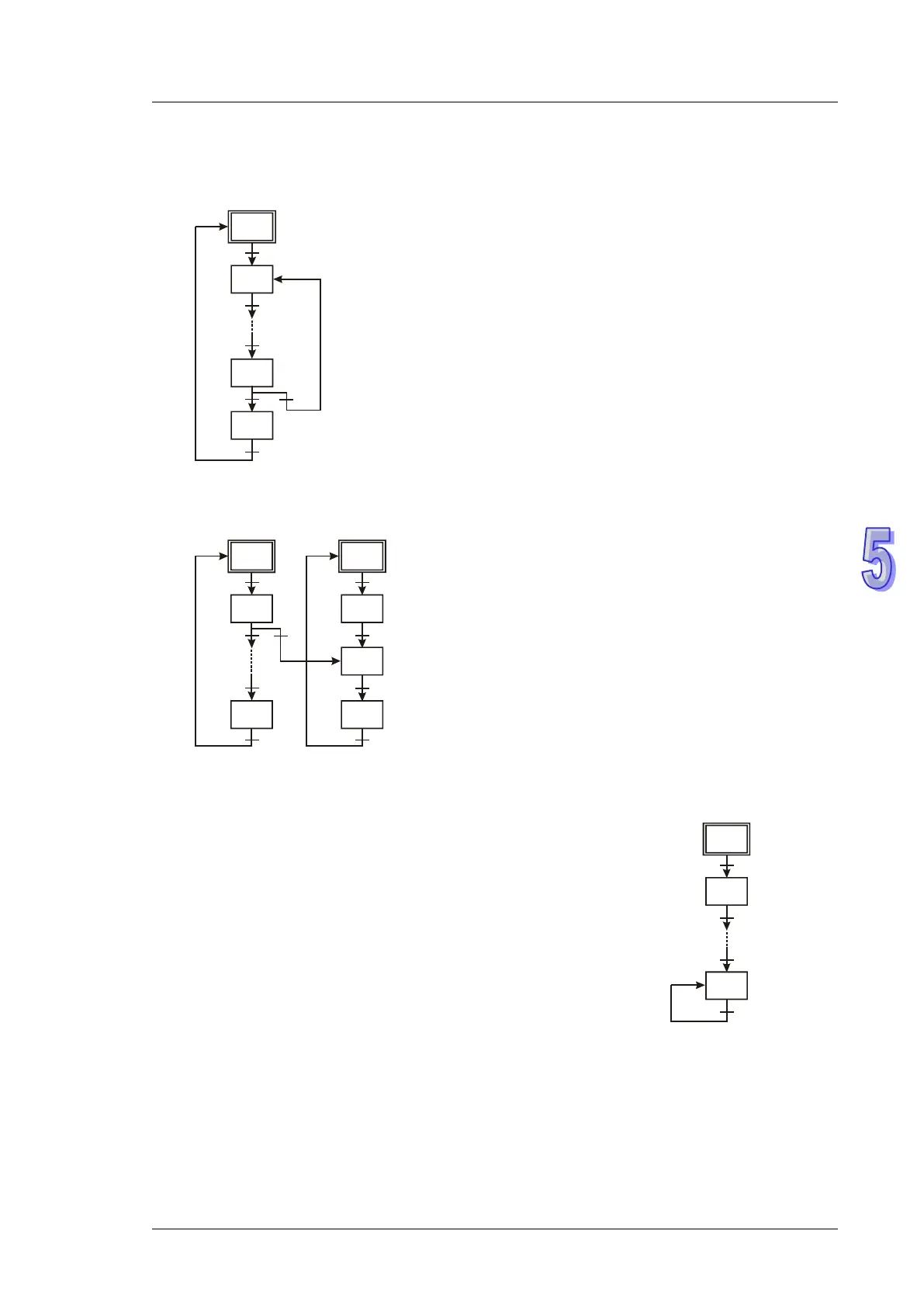

2. Step Jump
a) The control power over the step is transferred to a certain step on top.
S0
S21
S42
S43
OUT
OUT
b) The control power over the step is transferred to the step in another sequence.
S0
S21
S41
OUT
OUT
S1
S41
S43
OUT
S42
3. Reset Sequence
As the opposite diagram indicates, S50 will reset itself
when the transition condition is fulfilled and the sequence
ends here.
S0
S21
S50
RST
