Delta ITG70BT User Manual

6

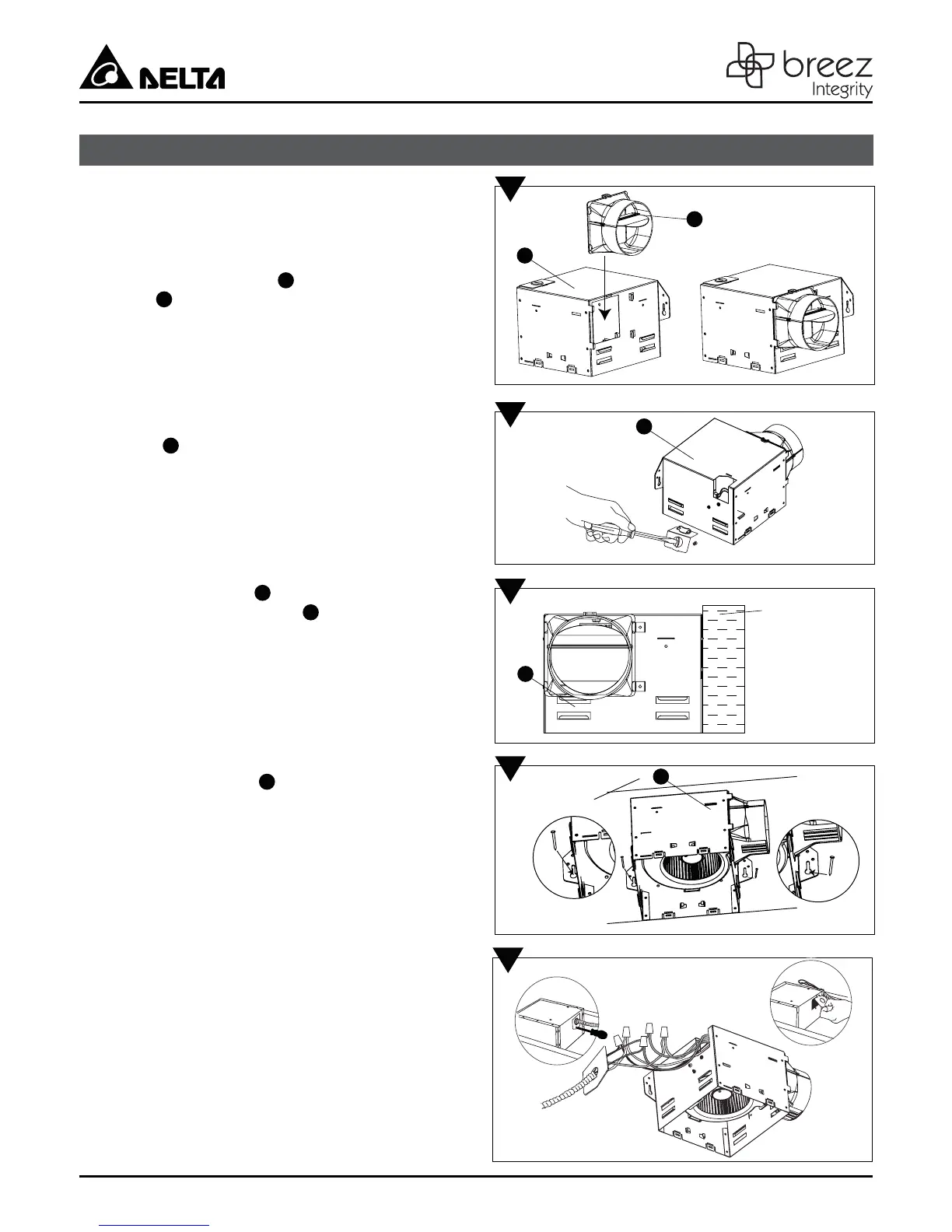

ASSEMBLY INSTRUCTIONS
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Attach the duct connector to the fan
housing .
2. Remove the wiring box cover from the fan
housing . Remove the wiring knockout from
the wiring box cover with a flathead screwdriver
(not included).
3. Place the fan housing next to a ceiling joist
or wall stud, The fan housing should be level
and perpendicular to the joist or stud.
4. Mount the fan housing to the joist or stud
using nails (not included) where indicated.
NEW CONSTRUCTION
2
1
3
4
Joist or
wall stud
Joist or wall stud
5
5. Pull the wire through the hole and into the junction
box (not included), secure 120VAC house wiring
from the wall switch to the fan as shown in the
wiring diagram on page5. 14AWG is the smallest
conductor that shall be used for branch-circuit
wiring.
Push the wires back through the hole.
Reattach the wiring box cover.
1
3
1
1
3
1
1
1
1
1
1
Model: ITG70BT

Delta ITG70BT Specifications

General

Brand	Delta
Model	ITG70BT
Category	Fan
Language	English
